ABB SPFEC12 模拟输入模块

ABB SPFEC12 模拟输入模块

SPFEC12 微处理器： 板载IntelCeleronM Processor或IntelPentiumM Processor。显现控制器： 主板内建的图形控制器具有能够进行并行数据处理和像素插入的3D超管线架构，全3D硬件加快，以及动画加快才能；350MHz完整的24-bit RAMDAC。VGA显现分辨率高达1600×1200@85Hz和2048×1536@75Hz。单/双通道LVDS（18-bit/24-bit）显现输出，显现分辨率高达1400×1050@18bit和1600×1200@24bit。TV(S-端子)显现输出。体系存储器： 供给一条200Pin200/266/333MHzDDR SO-DIMM体系内存扩大插槽，主板内存容量可扩大到1GB。IDE接口： 两个增强的ATA10/66/33规范IDE接口，可支撑多4个U1traATA100/66/33IDE设备。USB接口： 4个USB2.0高速接口，支撑480Mb/s传输率。网 卡：主板内建一个10/100Mb/s以太网控制器（Realtek RTL8139D），支撑网络引导发动功用。

声 卡：主板内建一个规范的AC7音效芯片；支撑MIC-in、Line–out。I/O功用： 2个规范RS-232 串口（COM1~COM2）。一组规范miniDIN插座，经一转二转接电缆连接PS/2键盘和鼠标。　CF卡功用： 供给一个ComPactFlash Type II插槽，与IDE2接口共用一个IDE通道，当用户挑选运用CF卡时，IDE2接口就仅能运用一个IDE设备。CF卡在体系中默许处于Slave状态，用户可根据需求订制将CF设于Master状态。B I O S： 4Mb AWARD BIOS，支撑即插即用（Plug and Play ,PNP）。体系检测功用： CPU、体系机箱温度的检测，体系首要工作电压、CMOS电池电压的检测。Super I/O看门狗定时器：256级，可编程；可编程时刻到中断；时刻到事件复位体系。电源支撑： 插孔式DC电源插座，单5V电源供电。

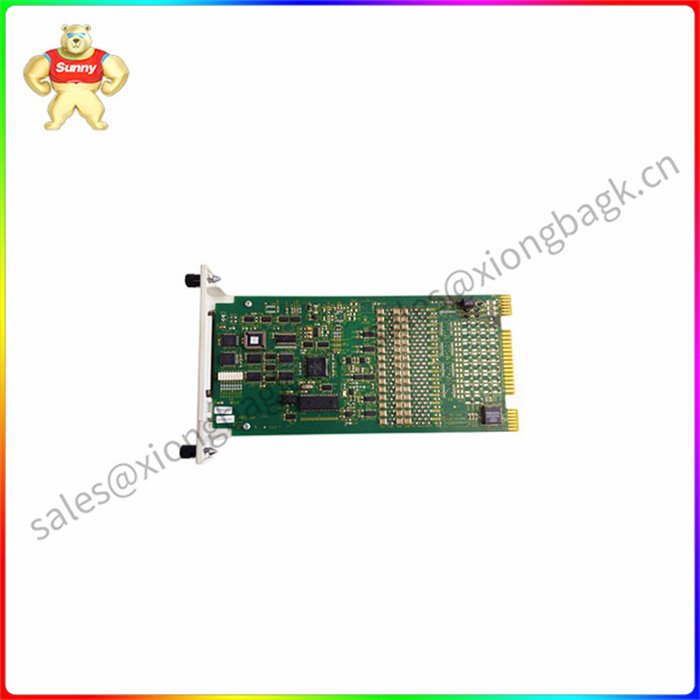

ABB SPFEC12 模拟输入模块

SPFEC12 microprocessor: Onboard IntelCeleronM Processor or IntelPentiumM Processor. Display controller: The built-in graphics controller on the motherboard has a 3D hyperpipeline architecture capable of parallel data processing and pixel insertion, full 3D hardware acceleration, and animation acceleration capabilities; 350MHz full 24-bit RAMDAC. VGA displays up to 1600×1200@85Hz and 2048×1536@75Hz. Single/dual-channel LVDS (18-bit/24-bit) display output with display resolutions up to 1400×1050@18bit and 1600×1200@24bit. TV(S-terminal) display output. System memory: Supply a 200PIN 200/266/333MHZDDR SO-DIMM system memory expansion slot, the motherboard memory capacity can be expanded to 1GB. IDE interface: Two enhanced ATA10/66/33 specification IDE interfaces to support up to four more U1traATA100/66/33IDE devices. USB interface: Four USB2.0 high-speed interfaces, supporting 480Mb/s transfer rate. Network card: The motherboard is built with a 10/100Mb/s Ethernet controller (Realtek RTL8139D), which supports the network boot function.

Sound card: a standard AC7 sound chip is built into the motherboard; Support MIC-in, line-out. I/O function: 2 standard RS-232 serial ports (COM1~COM2). A set of standard miniDIN sockets, connected to a PS/2 keyboard and mouse via a 1-to-2 conversion cable. CF card function: provides a ComPactFlash Type II slot and shares an IDE channel with the IDE2 interface. When the user chooses to use the CF card, the IDE2 interface can only use one IDE device. CF card acquiesces in the Slave state in the system, and the user can customize CF to the Master state according to the needs. BIOS: 4Mb AWARD BIOS, supporting Plug and Play (PNP). System detection function: CPU, system chassis temperature detection, system primary operating voltage, CMOS battery voltage detection. Super I/O Watchdog timer: 256 level, programmable; Programmable time to interrupt; Time to event reset system. Power support: Jack DC power socket, single 5V power supply.

ABB SPFEC12 模拟输入模块
