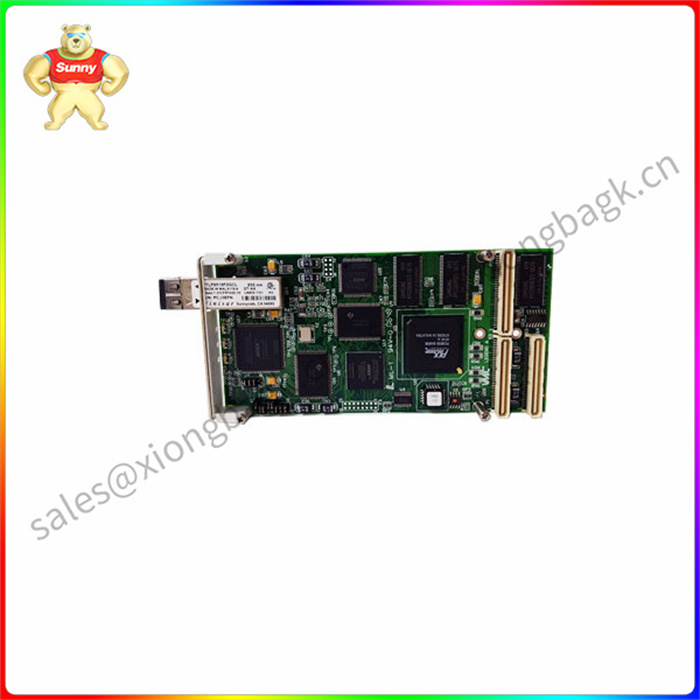

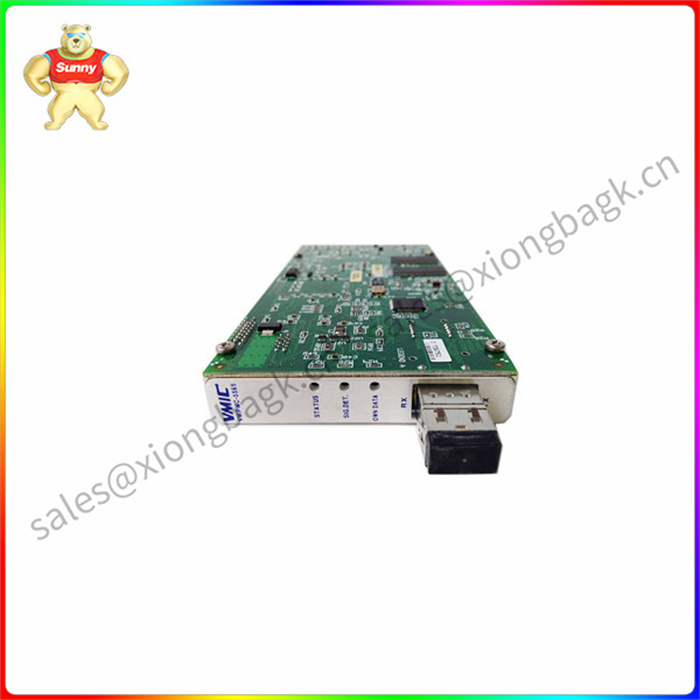

VMIPMC-5565 反射内存PMC模块

VMIPMC-5565 反射内存PMC模块

GE Fanuc/VMIC VMI PMC-5565/5565 piorc反射内存PMC模块是GE Fanuc嵌入式系统VMIxxx-5565系列反射内存(RFM)实时网络产品的PCI夹层卡(PMC)成员。该系列的其他成员包括VMI VME-5565(VME兼容板)和VMI PCI-5565(PCI兼容板)。所有这三种产品都是网络兼容的，并且可以以任何组合集成到网络中。

该系列产品允许计算机、工作站、PLC和其他具有不同操作系统或根本没有操作系统的嵌入式控制器实时共享数据。

对于本地节点，反射内存板显示为共享内存。任何级别的软件(包括应用程序本身)都可以将数据写入内存或从内存中读取数据。写入一个节点中的反射内存的数据由网络硬件传输到所有其他节点，并放置在这些节点的反射内存板上的相同地址中。这种数据传输的完成不需要任何节点上的处理器的参与。通过该系统，网络上的所有节点都有共享数据的本地副本可用于即时访问。

VMIPMC-5565 反射内存PMC模块

The GE Fanuc/VMIC VMI PMC-5565/5565 piorc Reflective Memory PMC module is a PCI Sandwich card (PMC) member of the GE Fanuc Embedded system VMIxxx-5565 series Reflective Memory (RFM) real-time networking products. Other members of the family include the VMI VME-5565(VME compatible board) and the VMI PCI-5565(PCI compatible board). All three products are network compatible and can be integrated into the network in any combination.

This family of products allows computers, workstations, PLCS and other embedded controllers with different operating systems or no operating systems at all to share data in real time.

For local nodes, the reflected memory board appears as shared memory. Any level of software, including the application itself, can write data to or read from memory. Data written to the reflected memory in one node is transmitted by the network hardware to all other nodes and placed at the same address on the reflected memory boards of those nodes. This data transfer is completed without the involvement of any processor on the node. With this system, all nodes on the network have a local copy of the shared data available for instant access.

VMIPMC-5565 反射内存PMC模块
