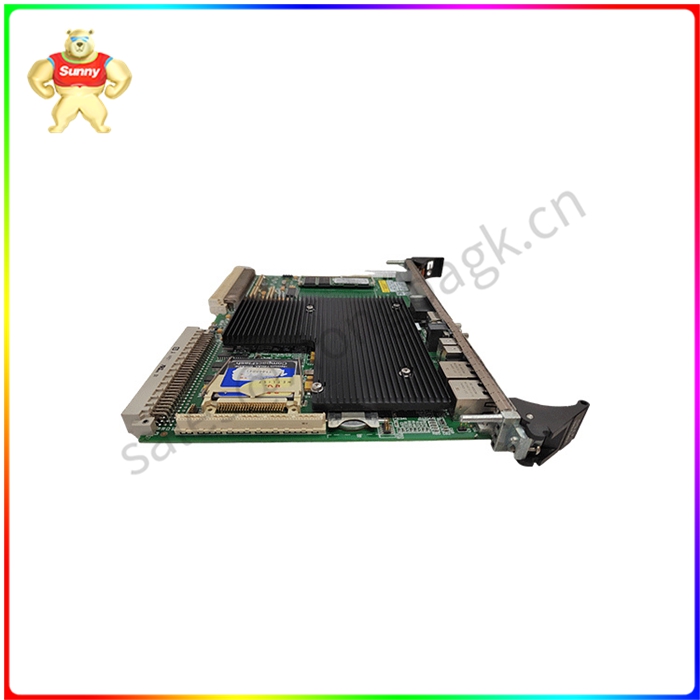

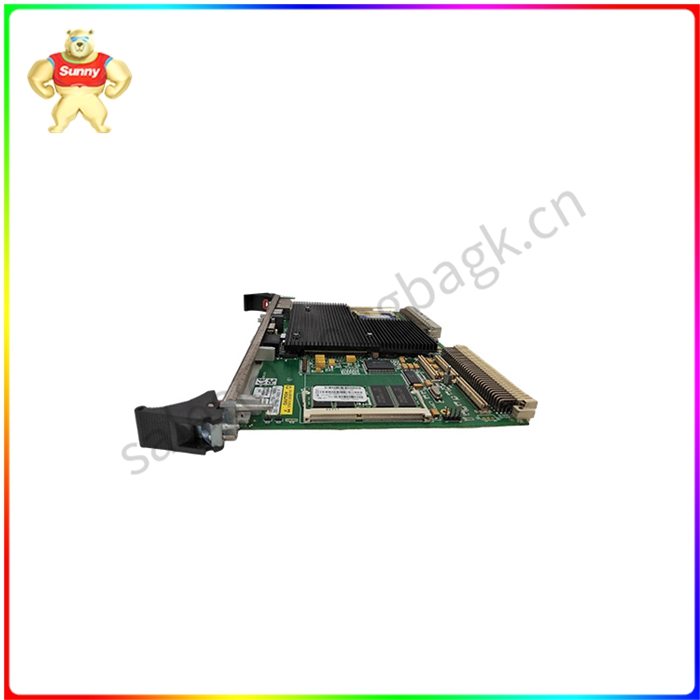

VMIVME-7750-746001 单槽奔腾III单板机

VMIVME-7750-746001 单槽奔腾III单板机

微处理器:VMIVME-7750搭载英特尔奔腾III处理器处理器到VME，提供处理器速度高达1.26 GHz。的奔腾III处理器具有32位寻址和64位数据公共汽车。它的超标量架构允许三个指令并行每个时钟周期执行。动态分支预测单元;独立指令和数据缓存，以及MMX™技术也提高了处理器的性能。奔腾III处理器还提供256kbyte (1.26 GHz有512kbyte)的容量高 级传输缓存(芯片上，全速2级缓存)使用双独立总线架构，用于高带宽和的性能。这个二级缓存在同一个时钟上运行频率作为处理器，从而提高性能。
DRAM内存:VMIVME-7750接受一个144针SDRAMSODIMM的zui大内存容量为512mbyte的DRAM双端口连接到VME。
BIOS:系统BIOS和视频BIOS都是可编程的闪存。
超级VGA控制器:高分辨率的图形和VMIVME-7750支持多媒体质量的视频内置815E芯片组AGP图形适配器。适配器是辅以4mbyte的外部同步DRAM缓存具有高带宽64位数据接口。屏幕分辨率高达1600 x 1200 x 256色(单视图模式)图形适配器支持。
以太网控制器:VMIVME-7750支持以太网局域网有两个英特尔以太网控制器(一个82559，另一个82559)英特尔芯片组ICH2的内部)。10BaseT和100BaseTX选项通过两个RJ45连接器支撑。远程局域网引导是支持。
远程以太网引导:VMIVME-7750使用Lanworks技术公司的BootWare®。引导软件提供了这样的能力使用NetWare、TCP/IP或RPL远程引导VMIVME-7750网络协议。
BootWare特点:
•NetWare, TCP/IP, RPL网络协议支持
•无与伦比的引导扇区病毒保护
•详细的启动配置屏幕
VMIVME-7750提供超越PC/AT的嵌入式功能功能。GE发那科支持这些特性面向开发人员的嵌入式系统软件产品谁正在整合GE发那科嵌入式系统sbc, I/O电路板和工作站进入系统。Windows XP /2000和VxWorks是zui常见的操作系统由GE发那科嵌入式系统软件产品支持。
Windows XP/Windows 2000: IOWorks®软件系列是一个一组可以一起工作的软件组件单独提供一个完整的开发环境应用程序在Windows XP/ Windows 2000操作系统。

VMIVME-7750-746001 单槽奔腾III单板机

Microprocessor: The VMIVME-7750 is powered by an Intel Pentium III processor to the VME, offering processor speeds up to 1.26 GHz. The Pentium III processor has 32-bit addressing and 64-bit data bus. Its superscalar architecture allows three instructions to be executed in parallel per clock cycle. Dynamic branch prediction unit; Separate instruction and data caches, as well as MMX™ technology, also improve processor performance. The Pentium III processor also offers 256kbyte (1.26 GHz with 512kbyte) capacity Advanced transfer cache (on chip, full speed level 2 cache) using a dual independent bus architecture for high bandwidth and performance. This secondary cache exists on the same clock running at the same frequency as the processor, thus improving performance.
DRAM memory: The VMIVME-7750 accepts a 144-pin SDRAMSODIMM with a maximum memory capacity of 512mbyte for DRAM dual-port connection to the VME.
BIOS: Both the system BIOS and video BIOS are programmable flash memory.
Super VGA controller: High resolution graphics and VMIVME-7750 supports multimedia quality video with built-in 815E chipset AGP graphics adapter. The adapter is complemented by a 4mbyte external synchronous DRAM cache with a high-bandwidth 64-bit data interface. Screen resolution up to 1600 x 1200 x 256 colors (single view mode) graphics adapter support.
Ethernet Controller: The VMIVME-7750 supports Ethernet LAN with two Intel Ethernet controllers (one 82559 and the other 82559) inside Intel chipset ICH2. The 10BaseT and 100BaseTX options are supported by two RJ45 connectors. Remote LAN booting is supported.
Remote Ethernet boot: The VMIVME-7750 uses BootWare® from Lanworks Technologies. The boot software provides the ability to remotely boot the VMIVME-7750 network protocol using NetWare, TCP/IP, or RPL.
BootWare Features:
•NetWare, TCP/IP, RPL network protocol support
• Unmatched boot sector virus protection
• Detailed startup configuration screen
The VMIVME-7750 provides embedded functionality beyond PC/AT. GE Fanuc supports these features in embedded systems software products for developers who are integrating GE Fanuc Embedded Systems sbc, I/O boards and workstations into the system. Windows XP /2000 and VxWorks are the most common operating systems supported by GE Fanuc embedded system software products.
Windows XP/Windows 2000: The IOWorks® software family is a set of software components that can work together individually to provide a complete development environment for applications in the Windows XP/Windows 2000 operating system.

VMIVME-7750-746001 单槽奔腾III单板机
