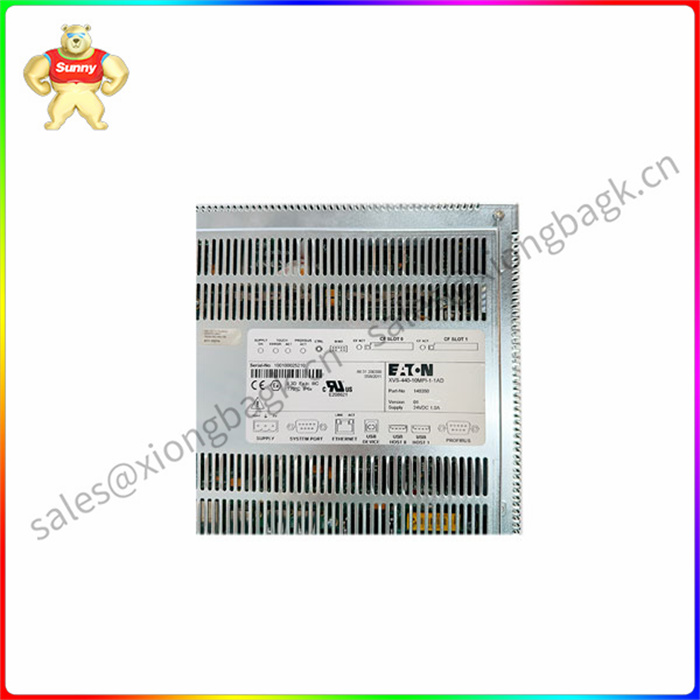

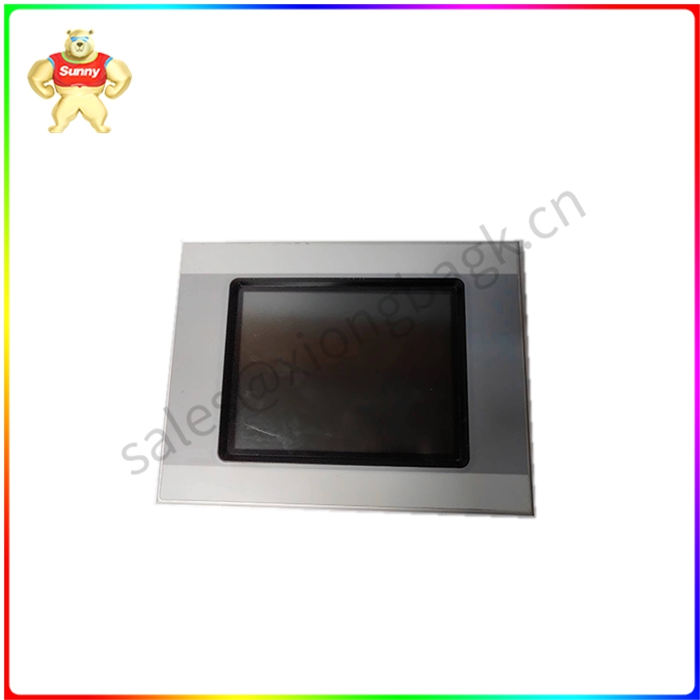

XVS-440-10MPI-1-10 EATON 操作员界面面板

XVS-440-10MPI-1-10 EATON 操作员界面面板

XVS44010MPI110
制造商已停产
触感控制板
视频图形阵列
640 X 480像素
红外辐射（Infrared Radiation）
24伏DC
10.4Z
薄膜颜色
以太网
串行通讯连接的工业标准
触摸屏，红外，24伏DC，10.4z，tft彩色，以太网，RS232，CAN，(PLC)
用户界面，XV400，产品范围:XV400 10.4 “，功能:HMI-PLC (PLC由用户改装)，型号系列的共同特征:以太网接口，USB设备，RS232，CAN/easyNet，UL508，cUL批准，PLC功能可由用户安装，通信范围可由用户使用许可证安装，显示类型:彩色显示，TFT，触摸技术:红外触摸，颜色数量:可调:65536或256色，分辨率:VGA，640 x 480 操作系统:Windows CE(需要许可证)，需要CompactFlash卡，PLC-许可证:可由用户安装，货号140390 LIC-PLC-MXP-介质，板载接口许可证:可根据需要扩展，参见附件->许可证产品证书，内置接口:1个以太网100base-TX/10base-T，1个RS232，1个Can，2个USB主机，1个USB设备，正面类型:标准正面，带标准薄膜，层压安全玻璃，不反光，用途:嵌入式安装，插槽:用于紧凑型 存储卡自动化:必需，见附件->存储卡，可插拔通信卡(可选):是，散热:32 W，防护等级(IEC/EN 60529，EN50178，VBG 4): IP65(前面)，IP20(后面)

XVS-440-10MPI-1-10 EATON 操作员界面面板

XVS44010MPI110
The manufacturer has discontinued production
Touch control panel
Video graphics array
640 X 480 pixels
Infrared Radiation (Infrared Radiation)
24 Volt DC
10.4 Z
Film color
Ethernet
Industry standard for serial communication connections
Touch screen, Infrared, 24V DC, 10.4z, tft color, Ethernet, RS232, CAN, (PLC)
User interface, XV400, product range :XV400 10.4 ", Function :HMI-PLC (PLC modified by user), common features of model series: Ethernet interface, USB device, RS232, CAN/easyNet, UL508, cUL approval, PLC function can be installed by user, Communication range can be installed by user using license, Display type: Color display, TFT, touch technology: Infrared touch, Number of colors: Adjustable :65536 or 256 colors, resolution :VGA, 640 x 480 Operating system :Windows CE(license required), CompactFlash card required, Plc-license: Can be installed by the user, item No. 140390 LIC-PLC-MXP-media, onboard interface license: can be expanded as needed, see the attachment -> License Product certificate, built-in interface :1 Ethernet 100base-TX/10base-T, 1 RS232, 1 Can, 2 USB host, 1 USB device, front type: Standard front, with standard film, laminated safety glass, non-reflective, Purpose: Recessed mount, slot: for compact memory card Automation: Required, see accessories -> Memory card, plugable communication card (optional): Yes, Heat dissipation :32 W, protection class (IEC/EN 60529, Standard front, laminated safety glass, non-reflective, Use: Built-in, slot: for compact memory card Automation: required, see accessories -> Memory Card, plugable communication card (optional): Yes, Heat dissipation :32 W, Protection Class (IEC/EN 60529, optional) EN50178, VBG 4): IP65(front), IP20(back)

XVS-440-10MPI-1-10 EATON 操作员界面面板
