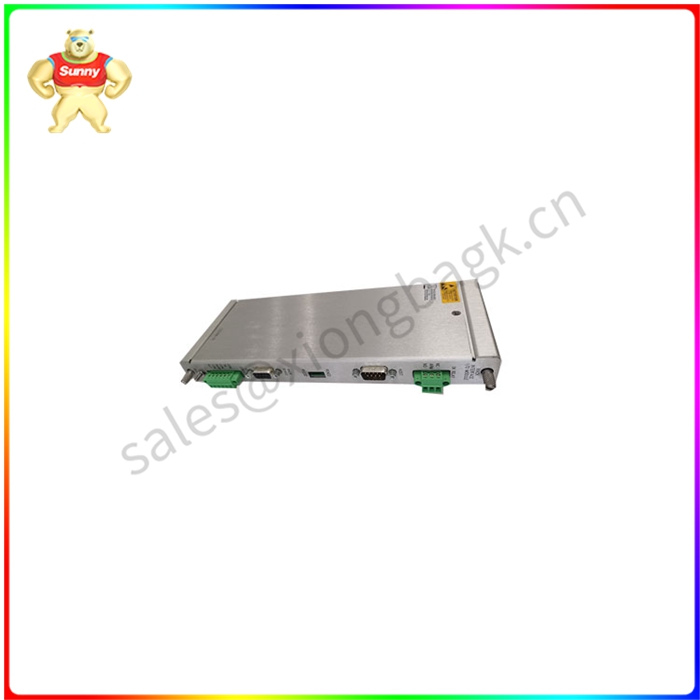

BENTLY 125768-01 4通道继电器模块

BENTLY 125768-01 4通道继电器模块

产品介绍：

4通道继电器模块是一个全高模块，提供四个继电器

产出。任何数量的4通道继电器模块可以放置在任何

机架接口模块右侧的插槽。4通道的每个输出

继电器模块可以独立编程，以执行所需的表决逻辑。

4通道继电器模块上使用的每个继电器都包括“报警驱动逻辑”。

报警驱动逻辑使用“与”和“或”逻辑进行编程，并可利用来自任何监控通道或任何

机架中监视器通道的组合。该警报驱动逻辑

编程使用3500框架配置软件来满足特定的应用程序的需求。

注意:三模冗余(TMR)应用需要使用125768-01 TMR继电器模块。

BENTLY 125768-01 4通道继电器模块

Product Introduction:

The 4-channel relay module is a full height module that provides four relays

Output. Any number of 4-channel relay modules can be placed in any

The slot on the right of the rack interface module. 4 channels for each output

The relay module can be programmed independently to perform the required voting logic.

Each relay used on the 4-channel relay module includes "alarm drive logic".

The alarm driver logic is programmed using "and" and "or" logic and can be used from any monitoring channel or any

Combination of monitor channels in the rack. The alert drives the logic

Programming uses the 3500 framework to configure software to meet the needs of specific applications.

Note: Three-mode redundancy (TMR) applications require the use of the 125768-01 TMR relay module.

BENTLY 125768-01 4通道继电器模块
