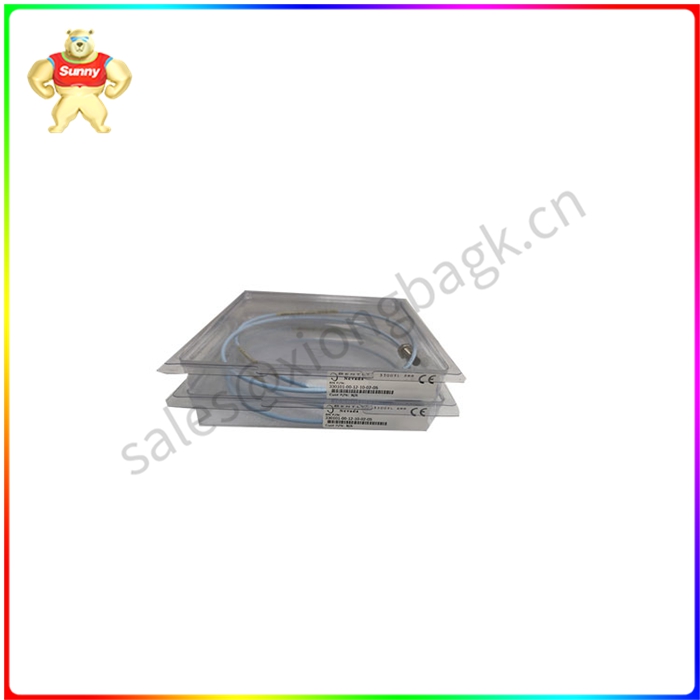

330101-00-12-10-02-05 XL接近探头在涡流接近传感器系统

330101-00-12-10-02-05 XL接近探头在涡流接近传感器系统

本利内华达3300 XL接近探头在涡流接近传感器系统中提供了zui先进的性能。标准的3300 XL 8mm 5米系统在机械配置、线性范围、精度和温度稳定性方面也完全符合美国石油协会(API) 670标准(第4版)。所有3300 XL 8mm接近传感器系统都提供这种级别的性能，并支持探头，延长电缆和Proximitor传感器的完全互换性，无需匹配或台架校准单个组件。

系统的三个部分必须具有一致的电气长度。近端探头的电长度加上延长线的电长度必须等于近端探头的电长度。

每个3300 XL 8毫米传感器系统组件向后兼容，可与其他非XL 3300系列5mm和8mm传感器系统组件互换。这种兼容性包括3300毫米探头，用于8mm探头太大而无法使用安装空间的应用。

3300 XL Proximitor传感器与以前的设计相比进行了许多改进。它的物理包装允许您在高密度DIN导轨安装中使用它。您也可以将传感器安装在传统的面板安装配置中，其中它与旧的Proximitor传感器设计共享相同的4孔安装“足迹”。安装基础的任何一个选项提供电气隔离，消除了需要单独的隔离板。3300 XL Proximitor传感器对射频干扰具有高度免疫力，可以将其安装在玻璃纤维外壳中，而不会对附近的射频信号产生不利影响。3300 XL Proximitor传感器改进的RFI/EMI抗扰度满足欧洲CE标志认证，无需特殊屏蔽导管或金属外壳，从而降低了安装成本和复杂性。

330101-00-12-10-02-05 XL接近探头在涡流接近传感器系统

The Bentley Nevada 3300 XL Proximity probe offers state-of-the-art performance in eddy current proximity sensor systems. The standard 3300 XL 8mm 5-meter system is also fully compliant with the American Petroleum Institute (API) 670 standard (4th edition) in terms of mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8mm proximity sensor systems deliver this level of performance and support full interchangeability of probe, extension cable and Proximitor sensors without the need to match or bench calibrate individual components.

The three parts of the system must have a consistent electrical length. The electrical length of the near end probe plus the electrical length of the extension wire must equal the electrical length of the near end probe.

Each 3300 XL 8mm sensor system component is backward compatible and interchangeable with other non-XL 3300 series 5mm and 8mm sensor system components. This compatibility includes 3300 mm probes for applications where 8mm probes are too large to use mounting space.

The 3300 XL Proximitor sensor features a number of improvements over previous designs. Its physical packaging allows you to use it in high-density DIN rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares the same 4-hole mount "footprint" as the older Proximitor sensor design. Either option of mounting the base provides electrical isolation, eliminating the need for separate isolation panels. The 3300 XL Proximitor sensor is highly immune to RF interference and can be installed in a fiberglass housing without adversely affecting nearby RF signals. The improved RFI/EMI immunity of the 3300 XL Proximitor sensor meets the European CE Mark and eliminates the need for special shielded ducts or metal housings, reducing installation costs and complexity.
