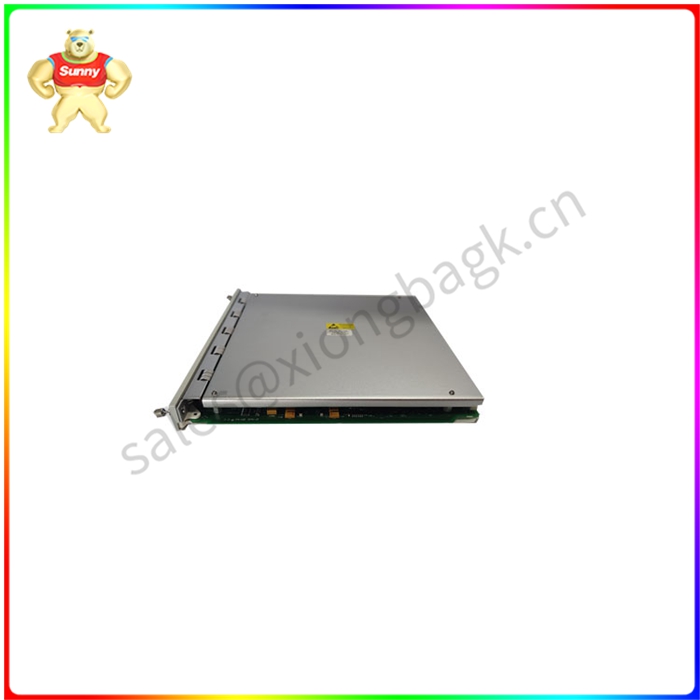

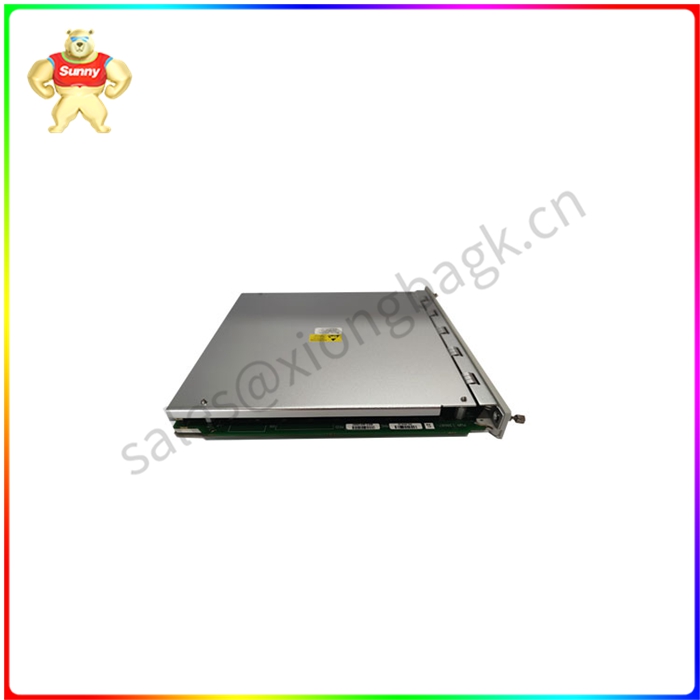

3500/22M 138607-01 数据接口(TDI) 连续采集稳态和瞬态动态(波形)

3500/22M 138607-01 数据接口(TDI) 连续采集稳态和瞬态动态(波形)

3500/ 22m暂态数据接口(TDI)是3500监控系统与兼容软件(system 1状态监测与诊断软件和3500系统组态软件)之间的接口。TDI结合了3500/20机架接口模块(RIM)的功能和通信处理器(如TDXnet)的数据采集能力。
在3500机柜中，TDI安装在靠近电源的槽位。它与M系列监视器(3500/40M, 3500/42M等)接口，连续采集稳态和瞬态动态(波形)数据，并通过以太网链路将这些数据传递给主机软件。有关更多信息，请参阅本文档末尾的兼容性部分。
静态数据捕获功能是TDI的标准配置。但是，使用可选的通道启用磁盘将允许TDI捕获动态和高分辨率的瞬态数据。TDI集成了3500机架内的通信处理器功能。
虽然TDI提供了整个机架通用的某些功能，但它不是关键监控路径的一部分，对整个自动机械保护监控系统的正常运行没有影响。每个3500机架需要1个TDI或RIM，总是占用1号槽位(电源旁边)。

3500/22M 138607-01 数据接口(TDI) 连续采集稳态和瞬态动态(波形)

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (system 1 condition monitoring and diagnosis software and 3500 system configuration software). The TDI combines the capabilities of a 3500/20 rack interface module (RIM) with the data acquisition capabilities of a communications processor such as TDXnet.
In cabinet 3500, the TDI is installed in a slot close to the power supply. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient dynamic (waveform) data and pass this data to the host software via an Ethernet link. For more information, see the Compatibility section at the end of this document.
Static data capture is standard in TDI. However, enabling the disk with an optional channel will allow TDI to capture dynamic and high-resolution transient data. The TDI integrates communication processor capabilities within 3500 racks.
Although TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no impact on the normal operation of the overall automatic mechanical protection monitoring system. Each 3500 rack requires 1 TDI or RIM, always occupying slot 1 (next to the power supply).
