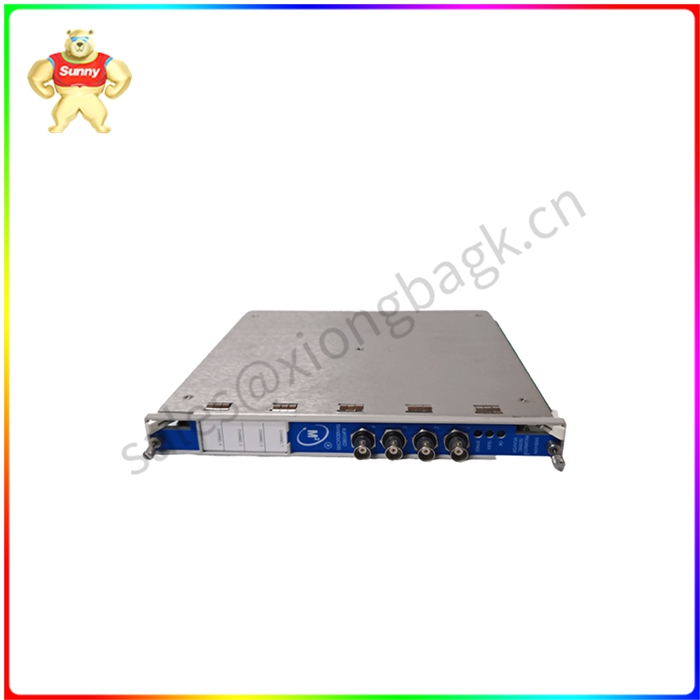

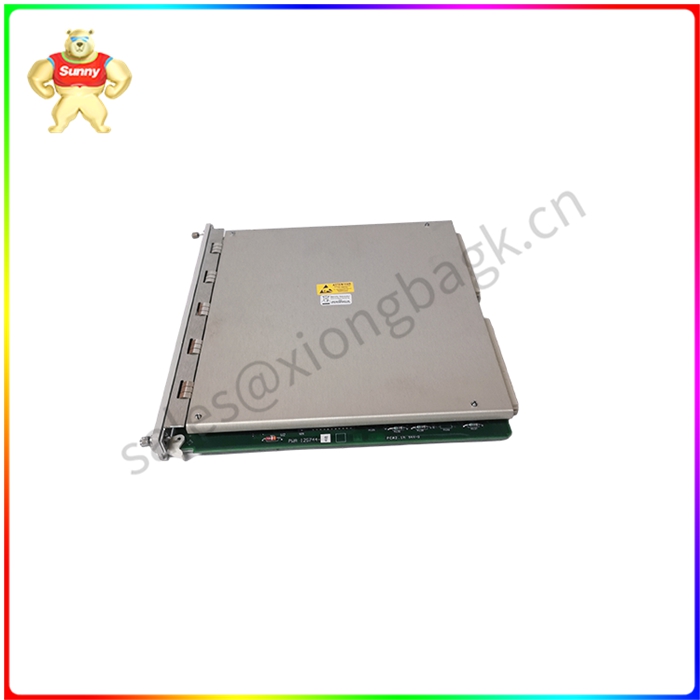

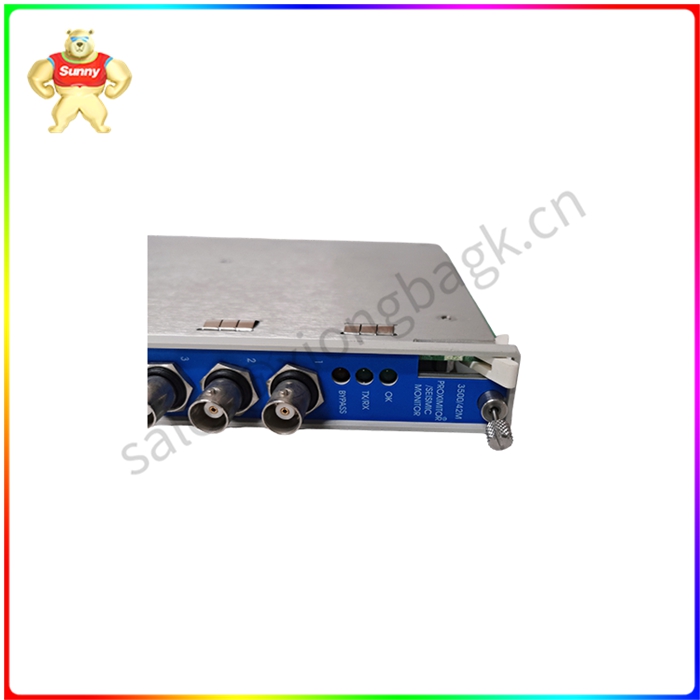

3500/42M 140734-02 Proximitor地震监测组件 可用于对每个通道进行编程

3500/42M 140734-02 Proximitor地震监测组件 可用于对每个通道进行编程

3500/42M是由本特利内华达公司开发的Proximitor地震监测组件。这是一个带有近程和地震传感器输入的四通道监视器。它将调节后的信号与用户可编程的警报进行比较，并调节信号以产生振动和位置读数。3500框架组态软件可用于对每个通道进行编程，以监控和报告径向振动、推力位置、钢筋、加速度、膨胀差、偏心率、速度和其他参数。

3500/42M功能
监控通道成对设置，zui多可以同时执行两个指定的功能。例如，通道1和2可以执行一种功能，而通道3和4执行另一种或相同的功能。
Proximitor地震监测器通过实时比较监测参数和选定的警报设定值，触发警报，从而保护机器。它向操作和维护员工通报重要的机器信息。
根据不同的配置，每个通道通常会调节其输入信号，以产生一组静态值。可以为任何当前静态值建立报警设定点，也可以为其中任何两个值建立危险设定点。
使用框架配置软件为监视器测量的任何值设置警报级别，并为监视器测量的任何两个值设置危险设定点。对于每个测量值，警报可以设置为满量程的0-100%。当满量程范围超过传感器范围时，设定值受到传感器范围的限制。
3500/42M技术特征
输入
接受一至四个接近传感器、加速度传感器或速度传感器的信号。
功耗7.7瓦。

3500/42M 140734-02 Proximitor地震监测组件 可用于对每个通道进行编程

3500/42M is the Proximitor seismic monitoring component developed by Bentley Nevada. This is a four-channel monitor with short range and seismic sensor inputs. It compares the adjusted signal with a user-programmable alarm and adjusts the signal to produce vibration and position readings. The 3500 frame configuration software can be used to program each channel to monitor and report radial vibration, thrust position, rebar, acceleration, differential expansion, eccentricity, speed, and other parameters.

3500/42M function
The monitoring channels are set up in pairs and can perform up to two specified functions simultaneously. For example, channels 1 and 2 May perform one function, while channels 3 and 4 perform another or the same function.
The Proximitor seismic monitor protects the machine by comparing monitoring parameters and selected alarm Settings in real time, triggering an alarm. It communicates important machine information to operations and maintenance employees.
Depending on the configuration, each channel typically adjusts its input signal to produce a set of static values. You can create an alarm set point for any current static value, and you can create a danger set point for any two of those values.
Use the framework configuration software to set an alert level for any value measured by the monitor and a danger set point for any two values measured by the monitor. For each measurement, the alarm can be set to 0-100% of full scale. When the full scale range exceeds the sensor range, the set value is limited by the sensor range.
3500/42M technical features
input
Receive signals from one to four proximity sensors, acceleration sensors, or speed sensors.
Power consumption 7.7 watts.
