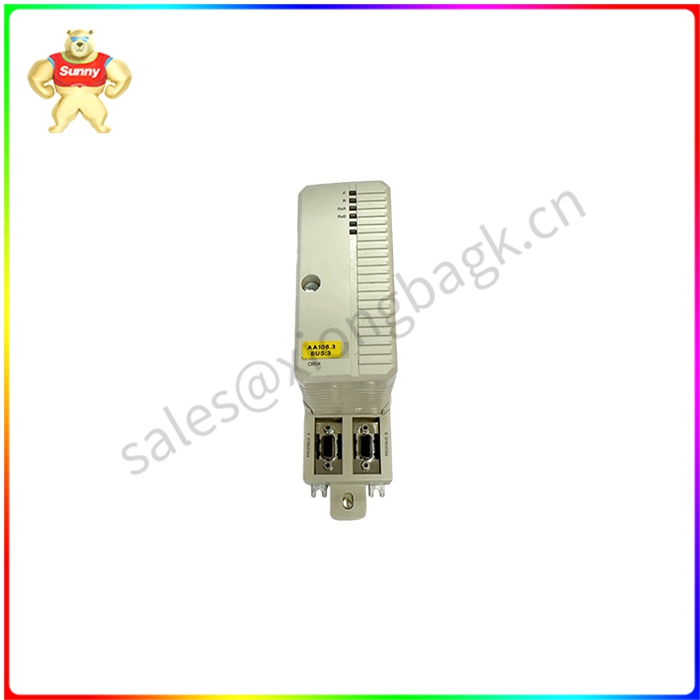

CI854 3BSE030220R1 接口现场总线

CI854 3BSE030220R1 接口现场总线

CI854是PROFIBUS-DP/V1接口现场总线。这是一种用于互连现场设备的高速多用途总线协议，如远程I/O、驱动器、低压电气设备和控制器。这种总线协议可以通过CI854B通讯接口连接到AC 800M。
CI854 3BSE030220R1 是 ABB 公司的一款 PROFIBUS-DP/V1 接口现场总线，用于将自动化设备连接到 PROFIBUS-DP 网络。
该模块具有以下特点：
支持 PROFIBUS-DP 协议，zui高通信速率为 12 Mbps。
提供两个电气隔离的 PROFIBUS-DP 接口，支持冗余配置。
支持热插拔功能，方便系统维护。
可通过 DIP 开关设置模块地址和波特率。
具有诊断功能，可实时监测网络状态。
该模块通常用于 ABB 的自动化系统中，例如 AC800M 控制器，用于连接 PROFIBUS-DP 从站设备，实现数据采集和控制功能。
CI854的通讯接口包括CI854A和CI854B。

CI854A包括两个PROFIBUS端口，以实现线路冗余，还支持PROFIBUS主冗余。
CI854B是新型的取代CI854A的PROFIBUS-DP主机，它包括两个用于实现线路冗余的PROFIBUS端口，也支持PROFIBUS主冗余。通过使用两个CI854B通讯接口模块，PROFIBUS-DP通讯支持主冗余。

CI854 3BSE030220R1 接口现场总线

CI854 is a PROFIBUS-DP/V1 interface fieldbus. It is a high-speed multipurpose bus protocol for interconnecting field devices such as remote I/O, drivers, low-voltage electrical equipment, and controllers. This bus protocol can be connected to the AC 800M via the CI854B communication interface.
The CI854 3BSE030220R1 is a PROFIBUS-DP/V1 interface fieldbus from ABB for connecting automation equipment to PROFIBUS-DP networks.
The module has the following features:
Supports PROFIBUS-DP protocol with a maximum communication rate of 12 Mbps.
Provides two electrically isolated PROFIBUS-DP interfaces for redundant configuration.
Supports hot swap, facilitating system maintenance.
The module address and baud rate can be set with the DIP switch.
It has diagnostic function and can monitor the network status in real time.
The module is commonly used in ABB's automation systems, such as the AC800M controller, to connect the PROFIBUS-DP slave station equipment for data acquisition and control functions.
CI854 communication ports include CI854A and CI854B.

The CI854A includes two PROFIBUS ports for line redundancy and also supports PROFIBUS master redundancy.
The CI854B is a new ProFIbus-DP host that replaces the CI854A. It includes two PROFIBUS ports for line redundancy and also supports PROFIBUS master redundancy. By using two CI854B communication interface modules, PROFIBUS-DP communication supports primary redundancy.

CI854 3BSE030220R1 接口现场总线
