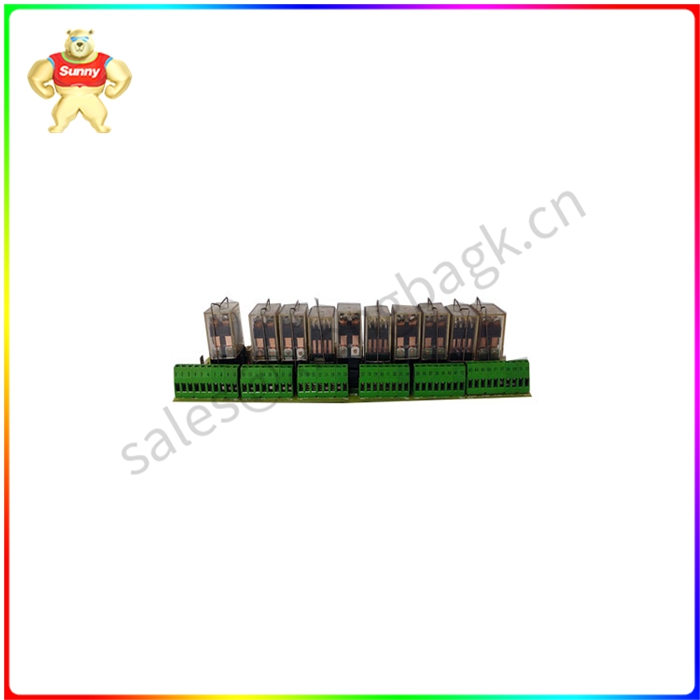

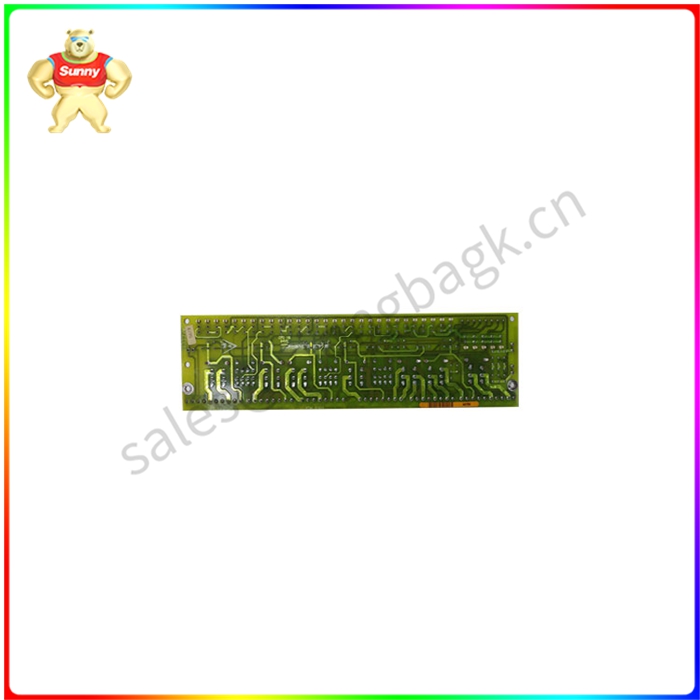

DS200RTBAG2AFB是为通用电气的Mark V板系列设计的继电器端子板(RTBA)。该板可用于许多GE品牌的驱动器和激励器。通过将该板安装到驱动柜中，用户可以获得额外的十个继电器。两者局域网输入输出终端和远程用户可以驱动电路板上的继电器。

位置K20到K29是所有车载继电器的电路板位置。DS200RTBAG2AFB包括两种类型的继电器，DPDT和4PDT。DPDT型由卡上的七个继电器组成，包括K20到K26。这些类型具有两个C型触点,对于每个接触等级10A。K27至K29是第二种继电器类型，即4PDT。而不是两个，4PDT继电器包括四个C型触点，每个触点都是1A。这十点都是由130 VAC金属氧化物变阻器(MOV)保护。每个继电器包含一个内部110伏直流线圈这确保了它们正常运行。如果任何继电器停止工作或损坏，用户可以很容易地删除和更换所有十个点。

应遵循DS200RTBAG2AFB安装和储存指南中提供的参数。这将确保电路板和整个驱动系统的完整性。器件手册和数据手册都给出了该板的详细安装和布线指南。Mark V板系列的成员zui初由制造商通用电气公司提供技术支持。

DS200RTBAG2AFB 继电器端子板 PLC应用微电子技术

The DS200RTBAG2AFB is a relay terminal board (RTBA) designed for General Electric's Mark V board series. The board can be used in many GE branded drives and exciters. By mounting the board into the drive cabinet, the user can obtain an additional ten relays. Both LAN I/O terminals and remote users can drive relays on the circuit board.

Positions K20 to K29 are circuit board locations for all on-board relays. The DS200RTBAG2AFB includes two types of relays, DPDT and 4PDT. The DPDT type consists of seven relays on the card, including K20 to K26. These types have two C-type contacts, 10A for each contact grade. K27 to K29 are the second relay type, 4PDT. Instead of two, 4PDT relays include four type C contacts, each of which is 1A. These ten points are protected by 130 VAC metal oxide rheostat (MOV). Each relay contains an internal 110-volt DC coil which ensures their proper operation. If any relay stops working or is damaged, the user can easily remove and replace all ten points.

The parameters provided in the DS200RTBAG2AFB installation and Storage Guide should be followed. This will ensure the integrity of the board and the entire drive system. The device manual and data manual both give detailed installation and wiring instructions for the board. The members of the Mark V board family were initially supported by the manufacturer General Electric Company.
