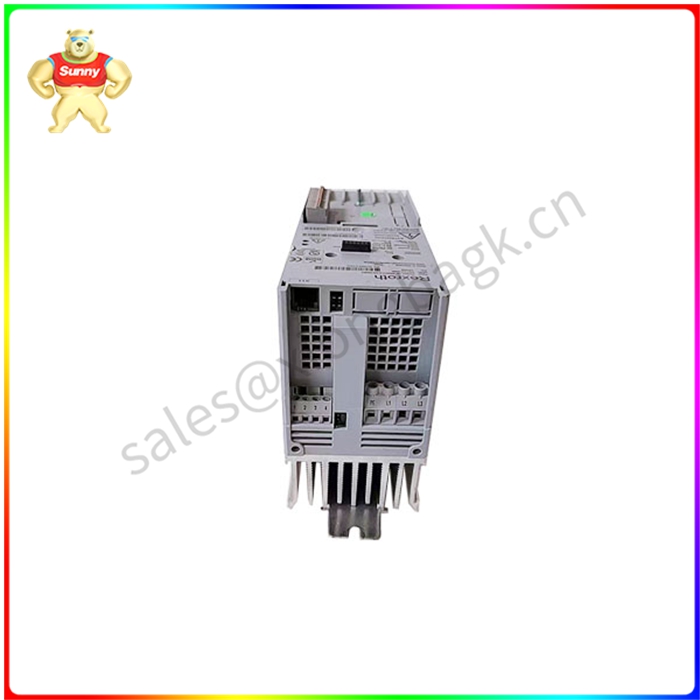

FCS01.1E-W0011-A-04-NNBV 伺服驱动器

FCS01.1E-W0011-A-04-NNBV 伺服驱动器

博世力士乐IndraDrive Fc交流变频器，用于2.2kW (3.OHP)4OOV三相电机，采用V:E或无传感器矢量控制至5.5A。标准交流感应电机的400V三相输入设置简不含键盘-请参见下面的链接产品了解键盘选项。
尺寸B:73毫米宽x153mm毫米深x 226mm毫米高(安装了附带的墙壁安装支架时为260毫米高)IP20。重量:1.8千克(近似值)。
过载-150%x 60秒，200%x 3.5秒速度控制范围-O-400赫兹。
制动-zui小130欧姆外部电阻(未提供)-参见下面链接的电阻选项或使用本页的“哪个电阻”按钮。特性-2个模拟/数字输入，5个数字输入，1个模拟输出，2个继电器触点组，RS232，RS485。公共汽车节能应用的DC公共汽车总站。
可通过”IndraWorks”软件和PC电缆从PC上编程-参见下面的链接产品。输入电流-7.7。
输入电压-380-480伏三相-20%+10%，50/60Hz士5%。符合IEC/EN 55011A类第二环境(工业)的EMC滤波器洁净环境中的壁式安装或柜式安装。
额定环境温度为40°C。
上下通风空间-100毫米。
侧面通风空间-0毫米(驱动器可以并排安装)zui大输出时的热损失-[未指定]。
通过后部(顶部和底部)的2个可拆卸散热器安装支架进行安装。每个支架1个直径为5.5毫米的孔。完整零件号为FCSO1.1E-WO011-A-04-NNBV或R911311065。

FCS01.1E-W0011-A-04-NNBV 伺服驱动器

Bosch Rexrow IndraDrive Fc AC inverter for 2.2kW (3.OHP)4OOV three-phase motors with V:E or senselless vector control up to 5.5A. The 400V three-phase input setup for standard AC induction motors does not include a keyboard - see the linked products below for keyboard options.
Dimensions B: 73mm wide x153mm deep x 226mm high (260mm high when the included wall mounting bracket is installed)IP20. Weight :1.8 kg (approximate).
Overload -150%x 60 seconds, 200%x 3.5 seconds Speed control range -O-400 Hz.
Brake - minimum 130 ohm external resistor (not provided)- see the resistor options linked below or use the "Which Resistor" button on this page. Features -2 analog/digital inputs, 5 digital inputs, 1 analog output, 2 relay contact sets, RS232, RS485. Bus energy efficiency application at DC Bus Terminal.
It can be programmed from a PC via "IndraWorks" software and PC cable - see linked products below. Input current -7.7.
Input voltage -380-480v three-phase -20%+10%, 50/60Hz 5%. Wall mounting or cabinet mounting in clean environments for EMC filters conforming to IEC/EN 55011A Class II environment (industrial).
The rated ambient temperature is 40°C.
Upper and lower ventilation space -100 mm.
Side ventilation space -0 mm (drivers can be mounted side by side) Heat loss at maximum output -[not specified].

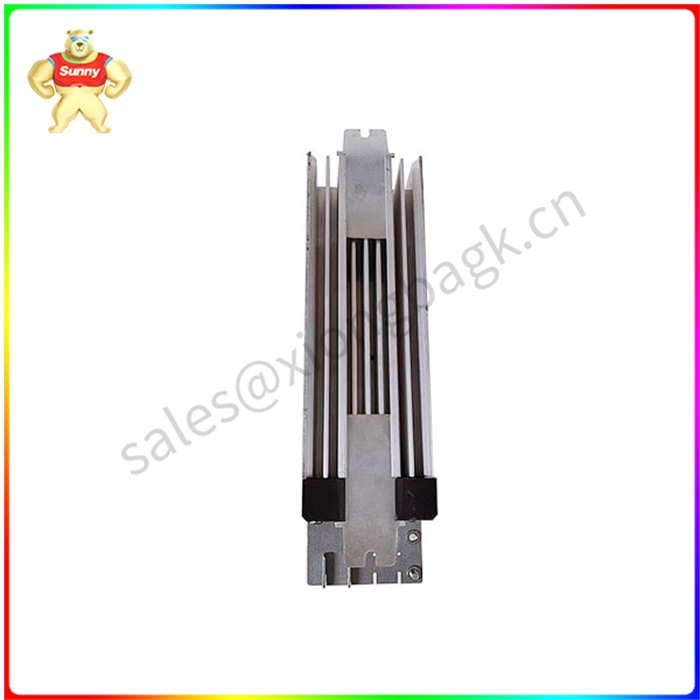

Installation via 2 removable radiator mounting brackets at the rear (top and bottom). One 5.5 mm diameter hole for each bracket. The complete part number is FCSO1.1E-WO011-A-04-NNBV or R911311065.
