IC695CPU320-CF是一款专为工业应用而设计的高性能CPU模块

IC695CPU320-CF是一款专为工业应用而设计的高性能CPU模块

IC695CPU320是GE Fanuc PACSystems RX3i系列的中央处理器。这IC695CPU320配有1 GHz的英特尔赛扬M微处理器，具有64 MB的用户(随机存取)内存和64 MB的闪存(存储)内存。RX3i CPUs经过编程和配置，可实时控制机器、流程和物料处理系统。

IC695CPU320在其机箱中内置了一对独立的串行端口。两个串行端口各占系统基座上的一个插槽。CPU支持SNP、串行I/O和Modbus从串行协议。此外，IC695CPU320具有双背板设计，支持RX3i PCI和90-30风格的串行总线。像Rx3i产品系列中的其他CPU一样，IC695CPU320提供自动错误检查和纠正。

IC695CPU320使用Proficy机器版，通用于所有GE Fanuc控制器的开发环境。Proficy Machine Edition用于创建、运行和诊断操作员界面、运动和控制应用程序。

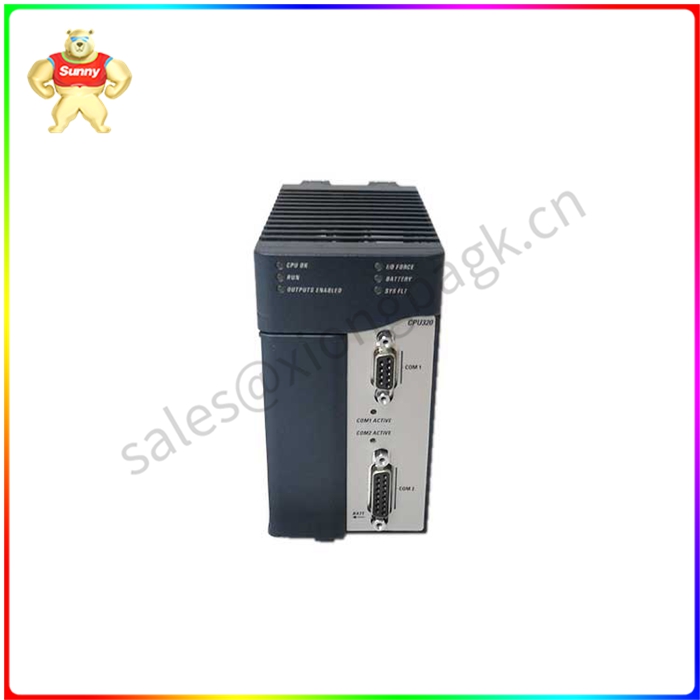

CPU上的八个指示灯有助于故障排除。除了标记为COM 1和COM 2的两个led属于不同的端口而不是不同的功能之外，每个LED响应一个单独的功能。其他指示灯是CPU正常、运行、输出使能、I/O力、电池和Sys Flt——这是“系统故障”的缩写。I/O Force LED指示位参考上的覆盖是否有效。当输出启用led亮起时，则输出扫描已启用。其他LED标签不言自明。为了便于查看，led和串行端口都聚集在设备的正面。

IC695CPU320-CF是一款专为工业应用而设计的高性能CPU模块

The IC695CPU320 is a central processing unit of the GE Fanuc PACSystems RX3i series. This IC695CPU320 is equipped with a 1 GHz Intel Cyon M microprocessor with 64 MB of user (random access) memory and 64 MB of flash (storage) memory. The RX3i CPUs are programmed and configured to control machines, processes and material handling systems in real time.

The IC695CPU320 has a pair of separate serial ports built into its case. The two serial ports each occupy a slot on the system base. The CPU supports SNP, serial I/O, and Modbus slave serial protocols. In addition, the IC695CPU320 has a dual-backplane design that supports RX3i PCI and a 90-30 style serial bus. Like other cpus in the Rx3i product family, the IC695CPU320 provides automatic error checking and correction.

The IC695CPU320 uses Proficy Machine Edition and is used in all GE Fanuc controller development environments. Proficy Machine Edition is used to create, run, and diagnose operator interface, motion, and control applications.

Eight indicators on the CPU help with troubleshooting. In addition to the fact that the two leds labeled COM 1 and COM 2 belong to different ports rather than different functions, each LED responds to a separate function. The other indicators are CPU normal, running, Output enabled, I/O force, battery, and Sys Flt - short for "System failure." The I/O Force LED indicates whether the overlay on the bit reference is valid. When the output enabled led lights up, output scanning is enabled. Other LED labels are self-explanatory. For easy viewing, leds and serial ports are clustered on the front of the device.

IC695CPU320-CF是一款专为工业应用而设计的高性能CPU模块
