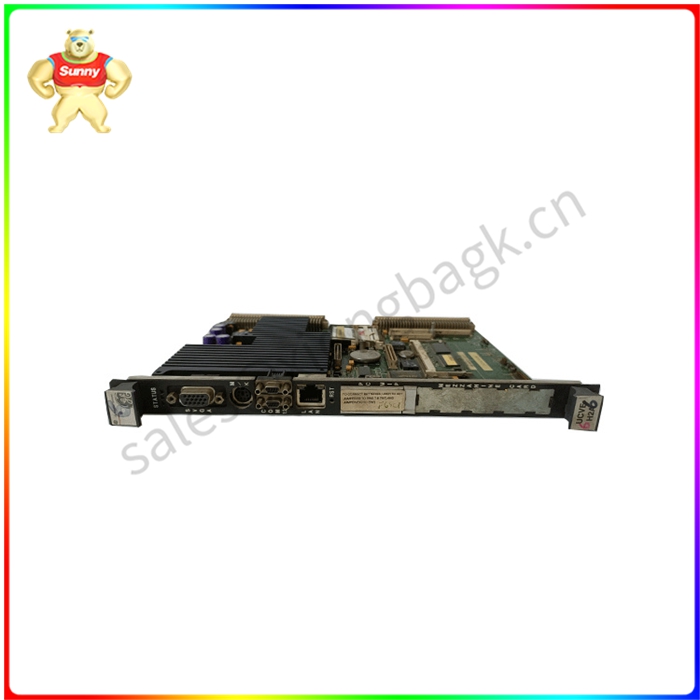

IS215UCVEH2AB VMIVME-7614-132 350-007614-132C 标准Mark VI控制器

IS215UCVEH2AB VMIVME-7614-132 350-007614-132C 标准Mark VI控制器

产品说明
IS215UCVEH2AB型号被标记为标准Mark VI控制器，设计为6U高、单槽/双槽、单板计算机，通常用于操作涡轮机应用程序代码。该型号位于一个有21或13个插槽的VME机架中。当位于控制模块中时，它将通过VME总线与其他涡轮机I/O板通信。该主板使用的典型操作系统是QNX。QNX系统是一个多任务、实时操作系统，专为高可靠性和高速工业应用而设计。

关于型号IS215UCVEH2AB的一个重要注意事项是，它只是Mark VI系统中使用的三个控制器之一，该型号可以取代其他控制器，但通常需要对背板进行升级。该型号可以取代ICVB型号，但这样做时，必须升级以太网电缆。

UCVE控制器可用于以下几种产品类型:

BOP，工厂平衡

蒸汽

气体

陆-海气动导数

当控制器与这样的产品一起使用时，它具有高达每秒十万个黑色或梯级的特定执行时间。使用特定类型的应用软件时，无需重启即可在线修改软件。

IS215UCVEH2AB型号只是UCVE控制器的变体之一。UCVEH2控制器有两种不同的内存类型，即32兆DRAM或16兆闪存。有关该控制器的更多信息，请参考GEH-6421C第二卷Mark VI涡轮机控制手册。

IS215UCVEH2AB VMIVME-7614-132 350-007614-132C 标准Mark VI控制器
Product description
The IS215UCVEH2AB model is marked as a standard Mark VI controller and is designed as a 6U tall, single slot/double slot, single-board computer, typically used to operate turbine application code. The model is located in a VME rack with 21 or 13 slots. When located in the control module, it will communicate with other turbine I/O boards via the VME bus. The typical operating system used by this motherboard is QNX. The QNX system is a multi-tasking, real-time operating system designed for high reliability and high-speed industrial applications.

An important note about the model IS215UCVEH2AB is that it is only one of three controllers used in Mark VI systems, and this model can replace the others, but usually requires an upgrade to the backplane. This model can replace the ICVB model, but when doing so, the Ethernet cable must be upgraded.

UCVE controllers are available in several product types:

BOP, factory balance

steam

gas

Land-sea aerodynamic derivative

When the controller is used with such a product, it has a specific execution time of up to one hundred thousand blacks or steps per second. When using a specific type of application software, the software can be modified online without restarting.

The IS215UCVEH2AB model is only one of the variants of the UCVE controller. The UCVEH2 controller comes in two different memory types, 32 megabytes of DRAM or 16 megabytes of flash. For more information on this controller, please refer to the GEH-6421C Volume II Mark VI Turbine Control Manual.
