IS220PDIAH1A 336A4940CSP1 离散IO组件 MK VIe燃气轮机控制系统

IS220PDIAH1A 336A4940CSP1 离散IO组件 MK VIe燃气轮机控制系统

这些型号都与PDIA配合使用，被批准用于危险场所。在危险环境中使用时，需要特定的认证。ULE207685认证用于非危险的I级2区组IIC和I级2区组A、B、C和D位置。在ATEX 2区集团IIC分公司使用时，需要特定的认证，认证为UL·德姆科12 ATEX 1114875X。

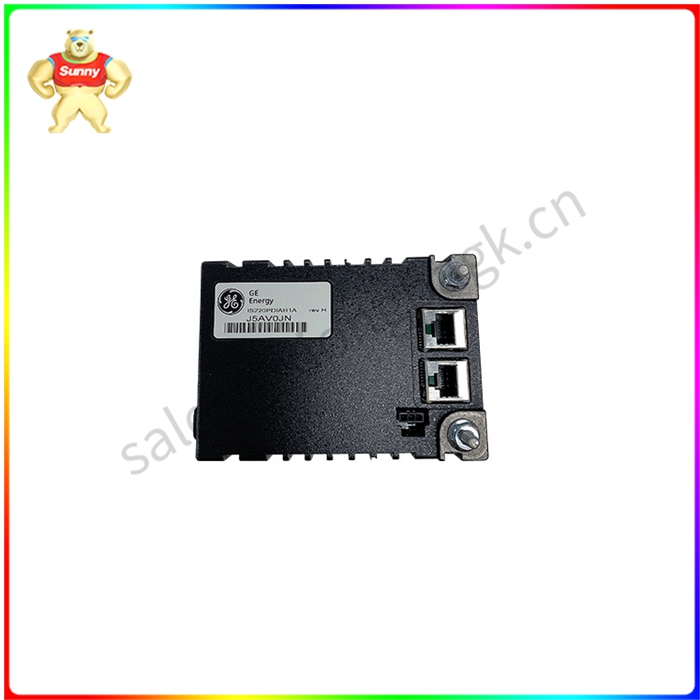

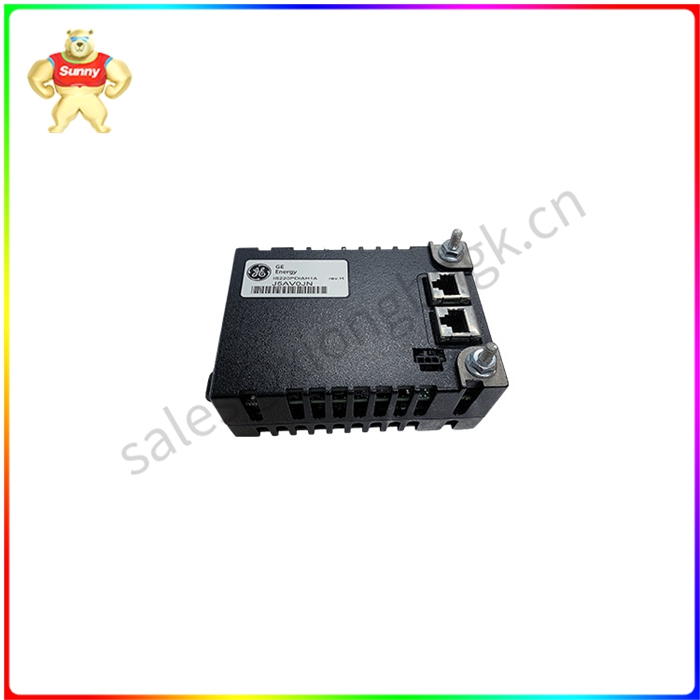

与Mark VI系列中的其他型号相比，IS220PDIAH1A不一定有特定的面板，因为它是一个I/O包。在设备的正面有七个指示灯，在包装的右侧有三个一组的电源指示灯和两个链路指示灯，一个表示ENet1，另一个表示ENet2。在这三个指示器下面，有一个以太网端口，用于将模型连接到以太网，以方便以太网通信。

IS220PDIAH1A包具有位置标准，其中两个是UL 600790 Ed。5和UL 60079-15版。3用于IIC I级2区组。该信息可在GEH-6725 Mark VI控制设备Hazloc手册中找到，该手册位于手册选项卡下。

IS220PDIAH1A 336A4940CSP1 离散IO组件 MK VIe燃气轮机控制系统
These models are used in conjunction with PDIA and are approved for use in hazardous locations. Specific certification is required for use in hazardous environments. The ULE207685 is certified for non-hazardous Class I 2 Zone IIC and Class I 2 Zone A, B, C and D locations. When used in the ATEX Region 2 Group IIC branch, a specific certification is required, certified as UL· Demco 12 ATEX 1114875X.

Compared to other models in the Mark VI series, the IS220PDIAH1A does not necessarily have a specific panel, as it is an I/O package. There are seven indicators on the front of the device, and a group of three power indicators and two link indicators on the right side of the package, one indicating ENet1 and the other indicating ENet2. Underneath these three indicators, there is an Ethernet port for connecting the model to Ethernet to facilitate Ethernet communication.

The IS220PDIAH1A package has location standards, two of which are UL 600790 Ed. 5 and UL 60079-15 edition. 3 Used for IIC Level I Area 2 group. This information can be found in the GEH-6725 Mark VI Control Device Hazloc Manual, which is located under the Manuals TAB.

IS220PDIAH1A 336A4940CSP1 离散IO组件 MK VIe燃气轮机控制系统
