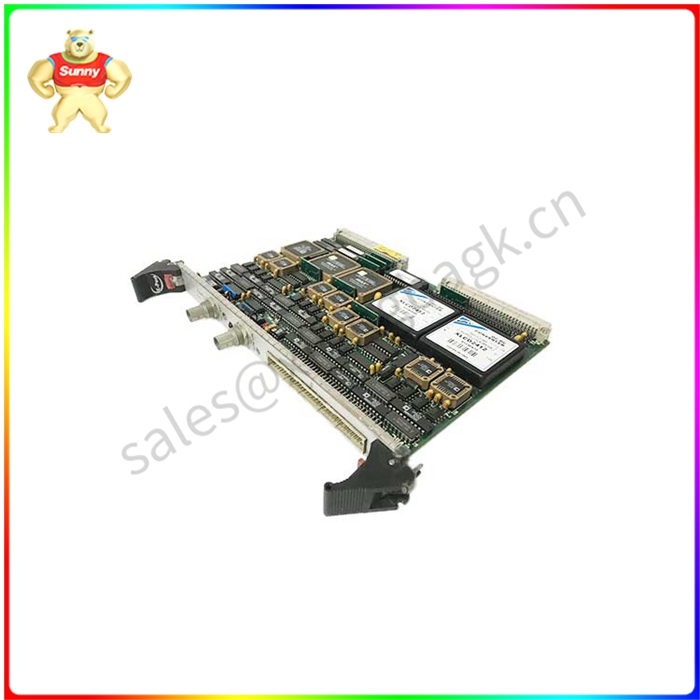

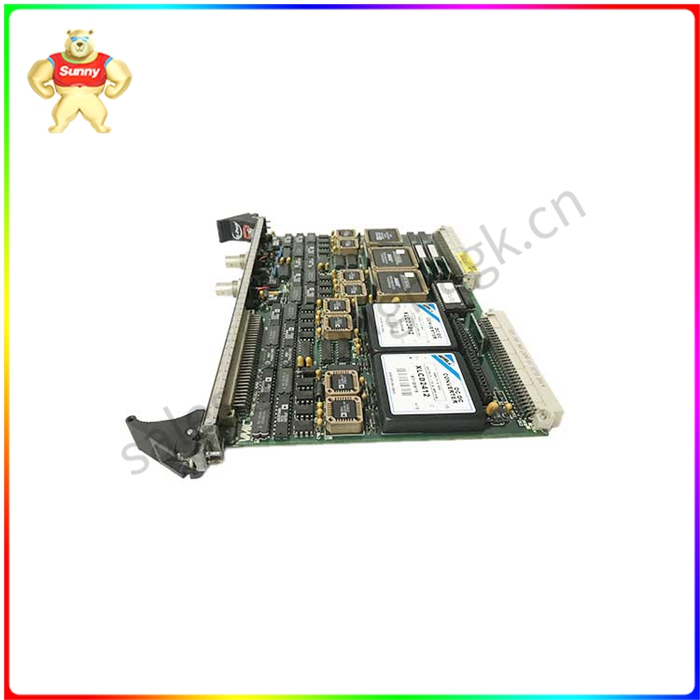

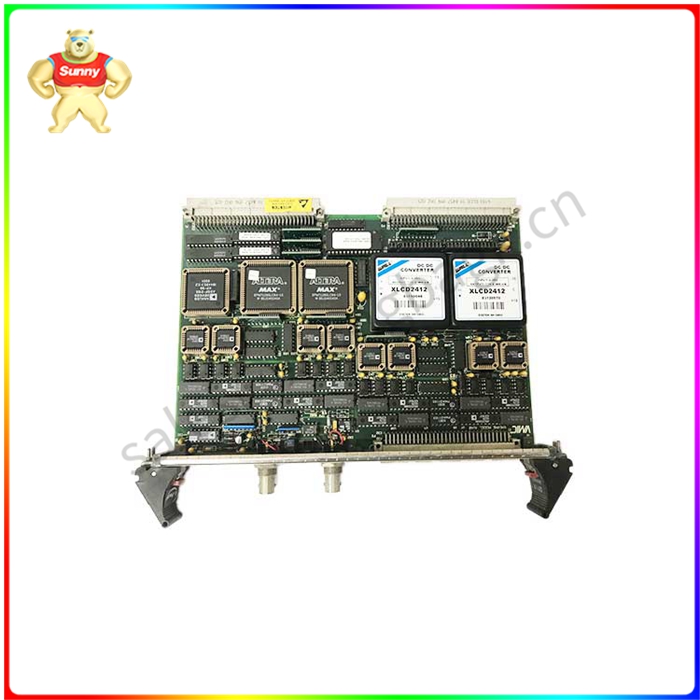

VMIVME-4140 32通道12位模拟输出 板

VMIVME-4140 32通道12位模拟输出 板

特点:
•32模拟输出通道
-每通道精 确大输出电流10mA
-每个输出通道一个12位D/A转换器(DAC)
•0.8Ω输出阻抗
•随机更新(非扫描)
•软件或外部同步更新双缓冲输出
•单参考电位器-无需其他手动校准要求
•通过复位或软件启动自动校准命令
•单相(0到+10V, 0到+5V, 0到+2.5 v)或双极(±2.5，±5重新或批量端接电缆
•从字段连接到脱机n槽——自我测试±10V)软件可选
•离散wi自测
-广泛的机载诊断测试能力
—可以对输出进行discon
– PMC扩展
•前面板状态LED
•前面板模拟输出连接器
•前面板参考电压访问
•应用程序
-数据采集系统
-控制系统
-精 确模拟刺激
-自动测试设备(ATE)

VMIVME-4140 32通道12位模拟输出 板
Features:
•32 Analog output channels
- The maximum output current per channel is 10mA
- One 12-bit D/A converter (DAC) per output channel
•0.8Ω output impedance
• Random updates (non-scanning)
• Software or external synchronous update of dual buffered output
Single reference potentiometer - no additional manual calibration requirements
• Initiate automatic calibration commands via reset or software
• Single phase (0 to +10V, 0 to +5V, 0 to + 2.5V) or bipolar (±2.5, ±5 re-end or batch end cables
• Connect from field to offline n slot - self-test ±10V) software is optional
• Discrete wi self-test
- Wide range of on-board diagnostic testing capabilities
- The output can be discon
- PMC extension
• Front panel status LED
• Front panel analog output connector
• Front panel reference voltage access
• Applications
- Data acquisition system
- Control system
- Accurately simulate stimuli
- Automatic Test Equipment (ATE).
