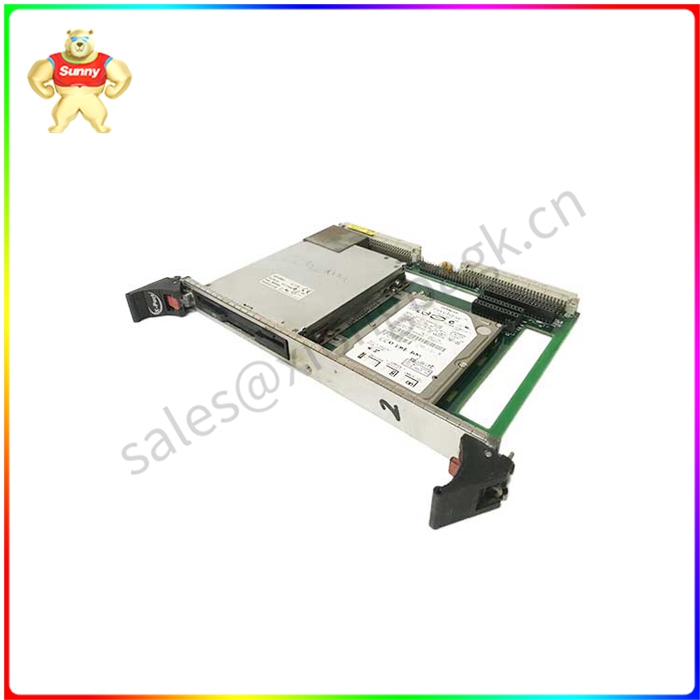

VMIVME-7452 6U单槽VME模块 采用6U VMEbus形式

VMIVME-7452 6U单槽VME模块 采用6U VMEbus形式

特点:
标准VME 6U单槽形式因素
3.5英寸1.44 MB软驱
低功率

VMIVME-7452是一款6U单槽VME模块，可为GE发那科嵌入式系统的嵌入式VME处理器系列提供硬盘和软盘存储选项。该模块可以单独配置驱动器，也可以同时配置驱动器。一个闪存驱动器是可选的。VMIVME-7452是无源VME板，仅连接到P2用户定义引脚、电源和地。

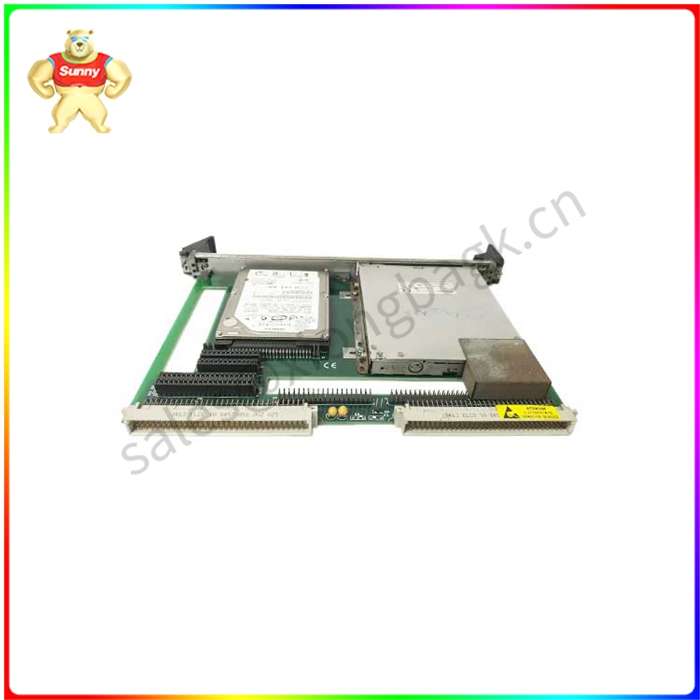

简介- VMIVME-7452是一个无源板，可容纳一个软盘和一个硬盘驱动器，可选的闪存驱动器可用。该单板采用6U VMEbus形式，其功率来自标准VMEbus P1和P2。
VMIVME-7452设计用于连接VMIC的vmebus兼容PC/AT SBC板。
这些SBC板将软盘和IDE控制器合并在板上。请参阅本规范中的兼容SBC列表。

VMIVME-7452 6U单槽VME模块 采用6U VMEbus形式
Features:
Standard VME 6U single slot form factor
3.5-inch 1.44MB floppy drive
underpower

The VMIVME-7452 is a 6U single-slot VME module that provides hard disk and floppy disk storage options for the embedded VME processor family of GE Fanuc Embedded systems. The module can be configured with a drive either individually or simultaneously. A flash drive is optional. The VMIVME-7452 is a passive VME board that is only connected to P2 user-defined pins, power supply, and ground.

The VMIVME-7452 is a passive board that can accommodate a floppy disk and a hard drive, with optional flash drives available. The board is in the form of a 6U VMEbus, and its power comes from the standard VMEbus P1 and P2.
The VMIVME-7452 is designed to connect vmebus compatible PC/AT SBC boards to Vmics.
These SBC boards combine the floppy disk and IDE controller on the board. See the list of compatible SBCS in this specification.
