IS200TVIBH2BBB 振动终端板 Speedtronic Mark VI涡轮控制系统

IS200TVIBH2BBB 振动终端板 Speedtronic Mark VI涡轮控制系统

IS200TVIBH2BBB由通用电气公司制造，是该公司Speedtronic Mark VI涡轮控制系统的一部分。Speedtronic系统用于控制从大型到小型的工业蒸汽和燃气轮机系统的功能和操作。MKVI的设计易于集成，提供控制和保护功能。

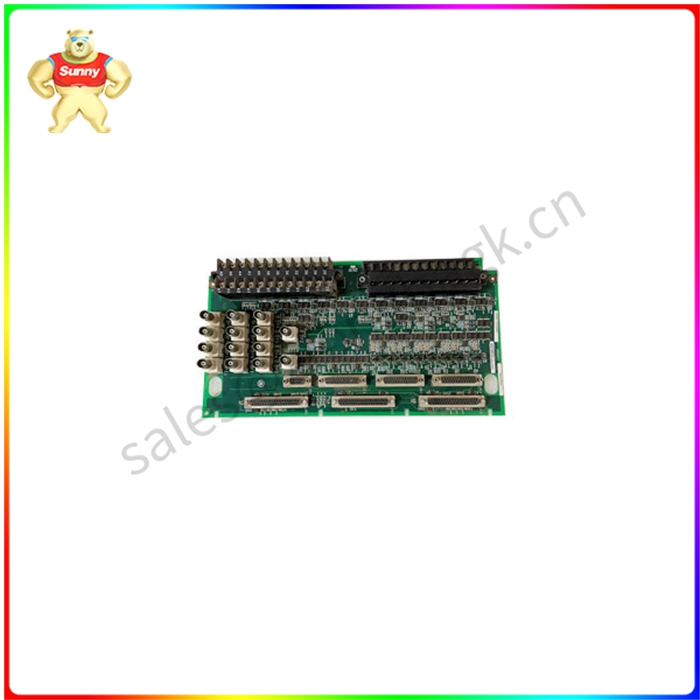

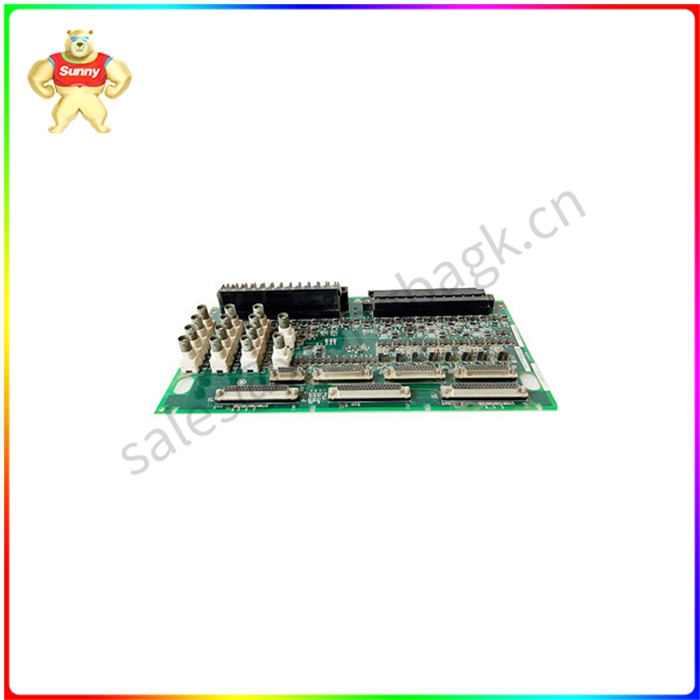

IS200TVIBH2BBB用作振动终端板。它由安装在其表面的多个集成电路构成，以控制和包含数据。该板还包括电阻和电容等典型元件。此外，在电路板的一侧有14个插头连接器。

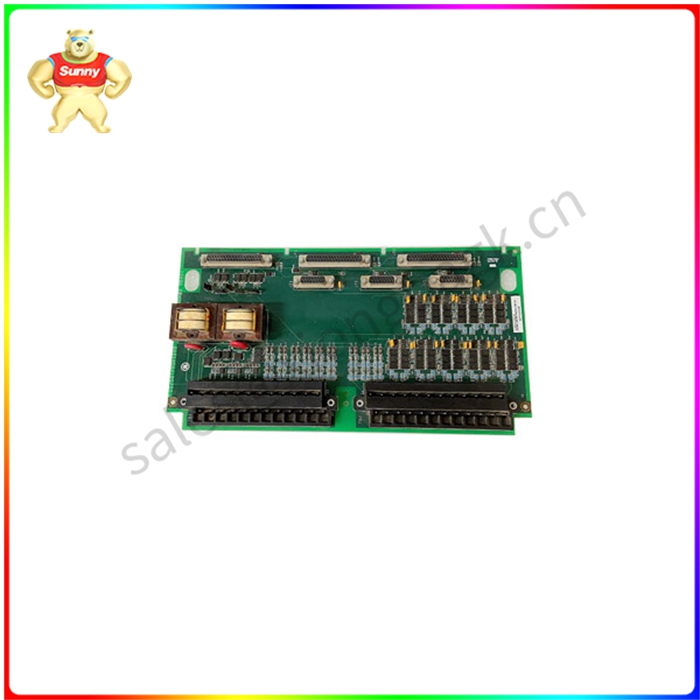

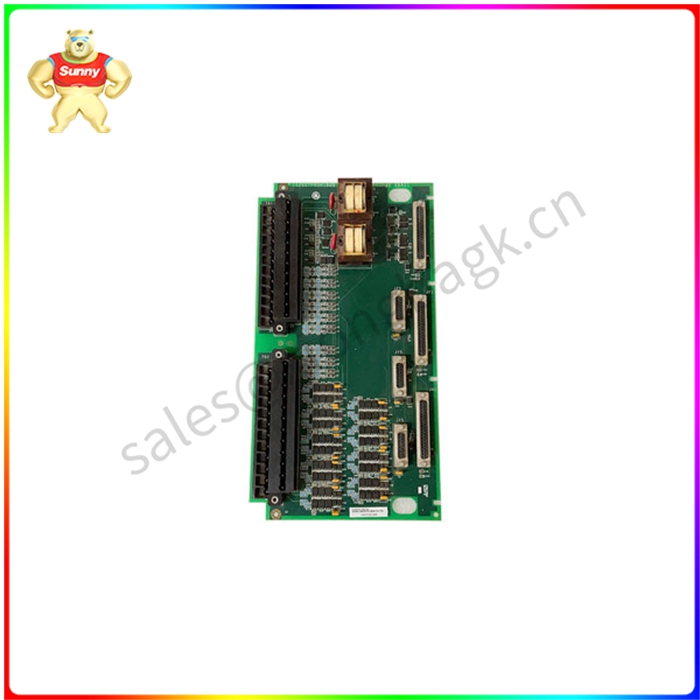

is 200 tvb H2 BBB有两个大型端子板，占据一个长电路板边缘。这些接线板有两行螺丝连接。每个单独的螺钉连接都有编号。这将允许用户更好地维护和跟踪所有的板连接。

is 200 tvb H2 BBB上的其它电路板组件包括母d壳连接器、电感和跳线开关。这跳线放置在电路板中心附近的一条线上。它们成对放置。跳线可以改变或复位，以控制电路板中电路的布线方式。有关更多信息，请参考GE原始文档。

is 200 tvb H2 BBB通常与VVIB配合使用来控制振动。应该考虑这种振动控制的rpm限制。通用电气手册和数据表将为您提供更多详细信息。拆箱前，请务必通读所有技术信息，以确保您理解所有操作说明和安装指南。

IS200TVIBH2BBB 振动终端板 Speedtronic Mark VI涡轮控制系统
The IS200TVIBH2BBB is manufactured by General Electric and is part of the company's Speedtronic Mark VI turbine control system. Speedtronic systems are used to control the function and operation of industrial steam and gas turbine systems from large to small. The MKVI is designed to be easy to integrate, providing control and protection.

IS200TVIBH2BBB is used as a vibration terminal board. It consists of multiple integrated circuits mounted on its surface to control and contain data. The board also includes typical components such as resistors and capacitors. In addition, there are 14 plug connectors on the side of the board.

The is 200 tvb H2 BBB has two large terminal boards that occupy one long board edge. The panels are joined by two rows of screws. Each individual screw connection is numbered. This will allow users to better maintain and track all board connections.

Other board components on the is 200 tvb H2 BBB include female D-shell connectors, inductors and jumper switches. This jumper is placed on a line near the center of the board. They are placed in pairs. Jumpers can be changed or reset to control how the circuit in the board is routed. Please refer to GE's original documentation for more information.

Is200 tvb H2 BBB is usually used in combination with VVIB to control vibration. rpm limits for this vibration control should be considered. Ge manuals and data sheets will provide you with more details. Before unpacking, be sure to read through all technical information to ensure that you understand all operating instructions and installation guidelines.

IS200TVIBH2BBB 振动终端板 Speedtronic Mark VI涡轮控制系统
