IS215UCVEH2AE是通用电气公司Mark VI Speedtronic控制系统的一个组件。该板的功能相当于VME控制卡。VME卡架是Mark VI的标准架，有13或21槽架可供选择。

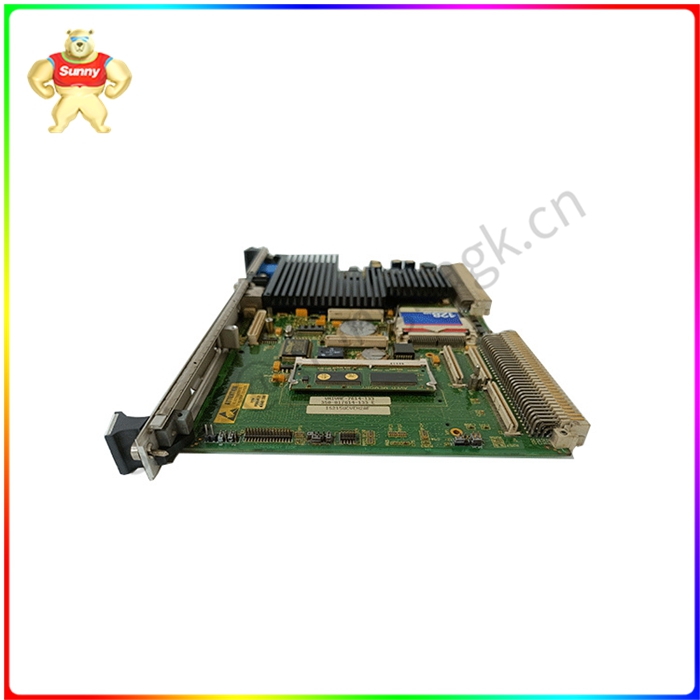

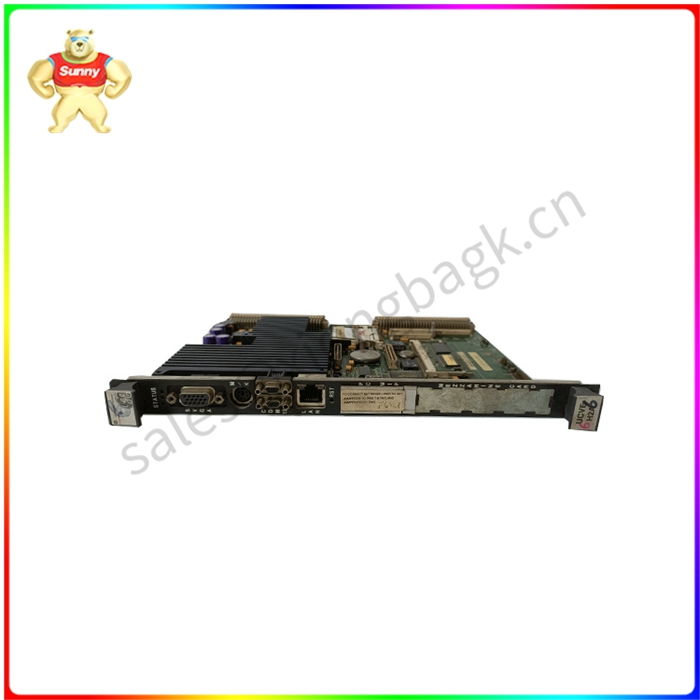

IS215UCVEH2AE是一个带有附加前面板的矩形板。面板顶部和底部有一个固定螺钉，用于在电路板安装到机架系统中后将其固定到位。前面板包括一个以太网端口、两个COM端口和一个LAN端口。它还有一个夹层卡的开口。

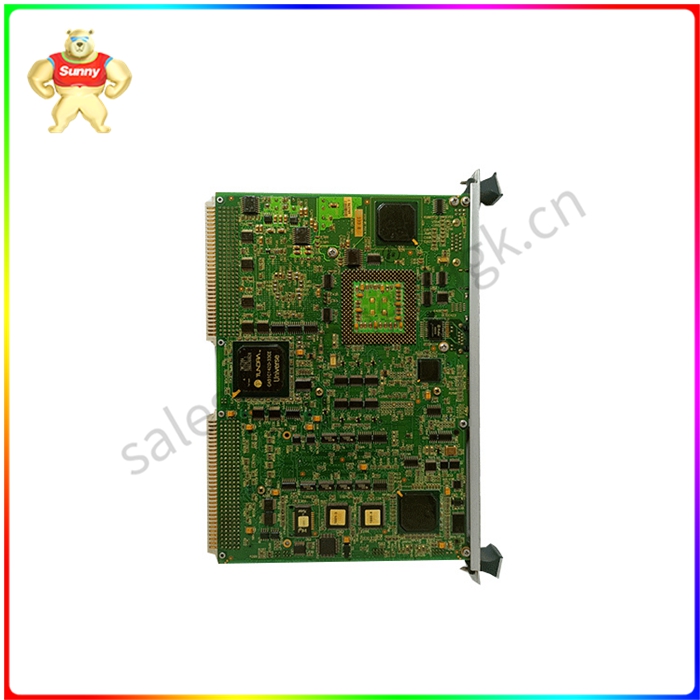

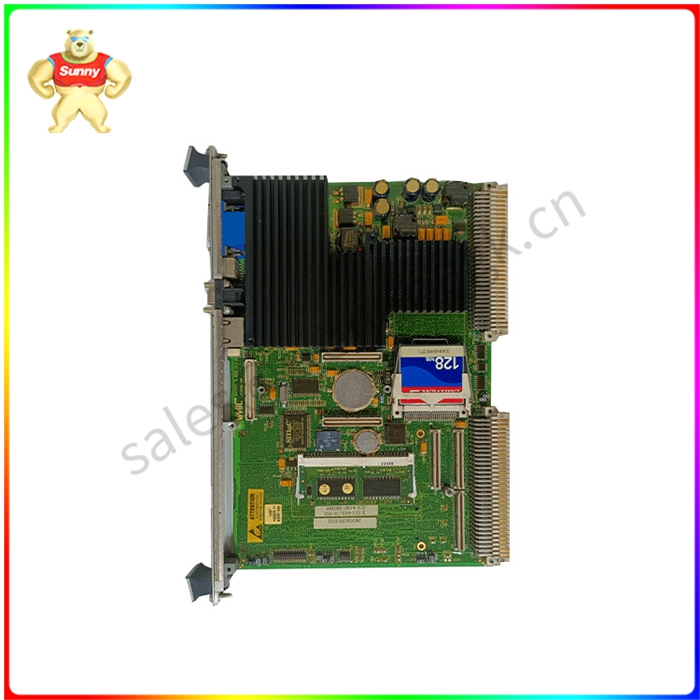

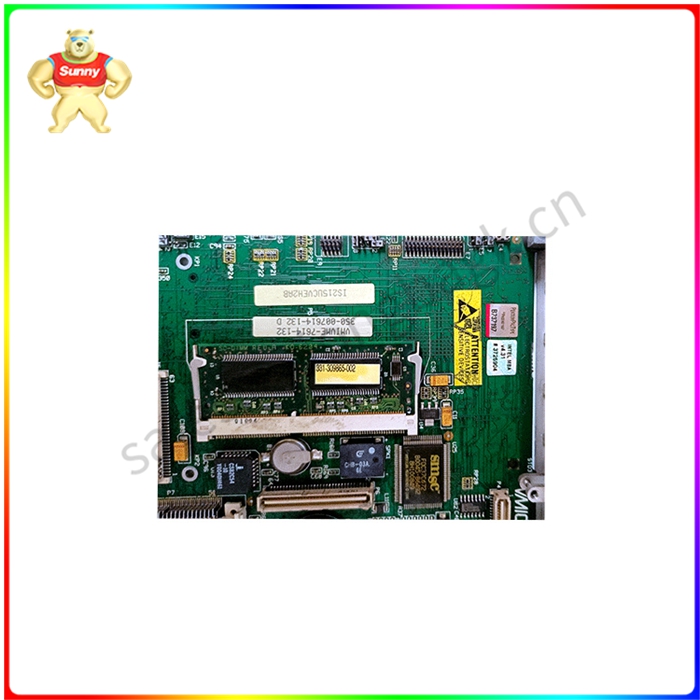

板本身包括板体内的垂直引脚连接器和沿板边缘的直角引脚连接器。此外，该板还有几个集成电路、电阻、电容、扼流圈和其它元件。此外，有一个小电路板以一定角度安装在电路板的中心，散热器盖位于电路板的一半以上。

请注意，我们的库存中有几种版本的这种板。确保为您的应用订购正确的主板。

IS215UCVEH2AF ic控制系统 VME控制卡
The IS215UCVEH2AE is a component of General Electric's Mark VI Speedtronic control system. The board functions as a VME control card. The VME bracket is standard for Mark VI and is available in 13 or 21 slots.

The IS215UCVEH2AE is a rectangular board with an attached front panel. There is a set screw at the top and bottom of the panel to hold the board in place after it is installed into the rack system. The front panel includes one Ethernet port, two COM ports, and one LAN port. It also has an opening for a sandwich card.

The plate itself consists of a vertical pin connector inside the plate and a right Angle pin connector along the edge of the plate. In addition, the board has several integrated circuits, resistors, capacitors, chokes, and other components. In addition, there is a small circuit board mounted at an Angle in the center of the circuit board, and the radiator cover is located more than half of the circuit board.

Please note that we have several versions of this board in stock. Make sure to order the right motherboard for your application.
