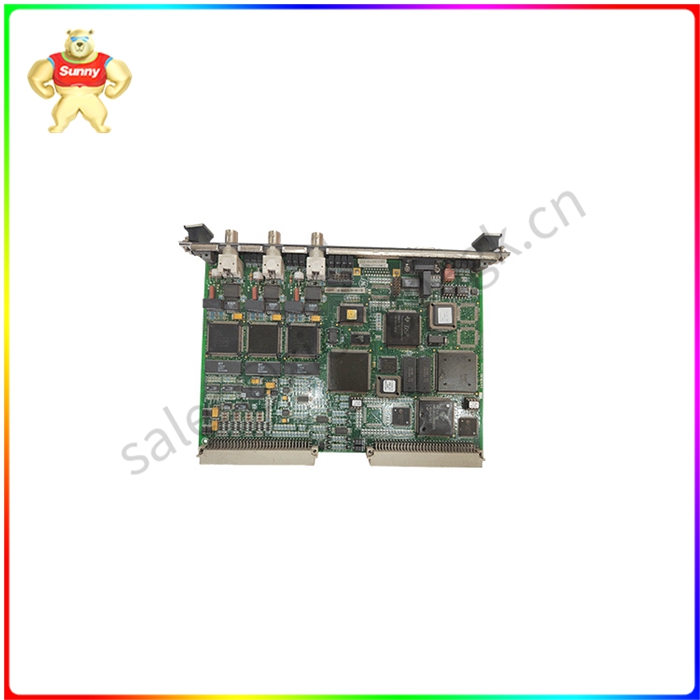

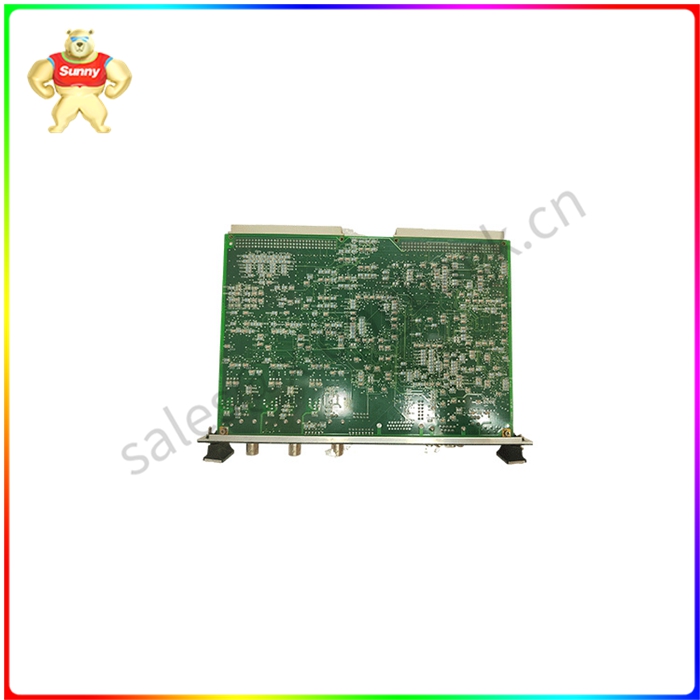

IS215VCMIH2B是通用电气公司制造的Mark VI系统的板组件。MKVI是通用电气以“Speedtronic”名称发布的zui终蒸汽和气体管理系统之一。该生产线侧重于使用良好的设计和多重备份来创建可靠的管理系统，从而提高相关涡轮机的效率。

IS215VCMIH2B用作VME总线主控制板。该板旨在连接控制器和I/O板之间的通信。IS215VCMIH2B还管理机架内板和相关端子板的id。VCMI板有两个主要版本(VCMIH1/VCMIH2。)

IS215VCMIH2B的前面板上有四个端口连接。这包括一个串行端口和三个IONet连接器。每个IONet连接器上方都有三个LED指示灯。这些标签为“TX”、“RX”和“CD”该板还有标有运行/故障/状态的led指示灯(位于按钮复位开关上方)，以及标有1、2、4和8的四个LED指示灯。面板用螺丝连接到主板上。

IS215VCMIH2B是一个6U高的VME板，宽0.0787英寸。它有一个德州仪器32位数字信号处理器和32位传输配置SRAM，256k x 32。该板有两个背板、一个12引脚垂直公连接器(p5)和几个由导电点制成的连接器。该板使用集成电路、电阻、电容和二极管。前缘附近有三个变压器。该板有几个变压器和四十多个电感珠。

IS215VCMIH2BB IS200VCMIH2BCC Mark VI系统板组件
The IS215VCMIH2B is a board component of the Mark VI system manufactured by General Electric Company. MKVI was one of the final steam and gas management systems released by General Electric under the name "Speedtronic". The line focuses on using good design and multiple backups to create a reliable management system that increases the efficiency of the associated turbines.

IS215VCMIH2B is used as the VME bus master control board. The board is designed to connect the communication between the controller and the I/O board. The IS215VCMIH2B also manages the id of the rack inner board and associated terminal board. There are two main versions of the VCMI board (VCMIH1/VCMIH2).

The IS215VCMIH2B has four ports connected on the front panel. This includes a serial port and three IONet connectors. There are three LED indicators above each IONet connector. These are labeled "TX," "RX," and "CD." The board also has led indicators labeled Run/fault/status (located above the button reset switch), and four LED indicators labeled 1, 2, 4, and 8. The panel is attached to the motherboard with screws.

The IS215VCMIH2B is a 6U high VME board with a width of 0.0787 inches. It has a Texas Instruments 32-bit digital signal processor and 32-bit transmission configuration SRAM, 256k x 32. The board has two backplanes, a 12-pin vertical male connector (p5), and several connectors made of conductive points. The board uses integrated circuits, resistors, capacitors and diodes. There are three transformers near the leading edge. The board has several transformers and more than forty inductor beads.
