IS220PRTDH1A 电阻温度器件（RTD）输入模块

IS220PRTDH1A 电阻温度器件（RTD）输入模块

产品描述
IS220PRTDH1A是通用电气的电阻温度设备输入模块。该模块是GE的Mark VIe Speedtronic系统的一部分，该系统是zui后可用的Speedtronic系统之一。Speedtronic 系列由 GE 于 1960 年代创建，用于管理工业燃气轮机和蒸汽轮机，包括 Mark I、Mark II、Mark IV 和 Mark VI 等流行版本。

IS220PRTDH1A是一个 I/O 包，旨在与端子板配合使用。当与特定的端子板（如IS200TRTDH2D、IS200SRTDH1A或IS200SRTDH2A）一起使用时，它被批准用于危险场所。本机有自己的电源。

只有像RTD这样的电阻式简单设备才能连接到IS220PRTDH1A上的RTD输入。用于这些连接的电缆应具有当地电气规范中规定的适当绝缘层。

IS220PRTDH1A的前面板包括 I/O 单元的两个以太网端口的 LED 指示灯，以及电源和 ATTN LED 指示灯。端口位于设备的侧面。
在添加任何类型的包装材料之前，该装置的重量约为 4.40 磅。尺寸为 34 x 18 x 10 厘米。该装置带有 CE 标志和 UL 认证。

IS220PRTDH1A 电阻温度器件（RTD）输入模块

Product description
The IS220PRTDH1A is a General Electric resistance temperature equipment input module. The module is part of GE's Mark VIe Speedtronic system, one of the last Speedtronic systems available. The Speedtronic family was created by GE in the 1960s to manage industrial gas and steam turbines, including popular versions such as the Mark I, Mark II, Mark IV and Mark VI.

The IS220PRTDH1A is an I/O package designed to work with the terminal board. When used with a specific terminal board, such as IS200TRTDH2D, IS200SRTDH1A or IS200SRTDH2A, it is approved for use in hazardous places. This unit has its own power supply.

Only resistive simple devices like RTDS can be connected to the RTD input on the IS220PRTDH1A. The cables used for these connections shall have appropriate insulation as specified in the local electrical code.

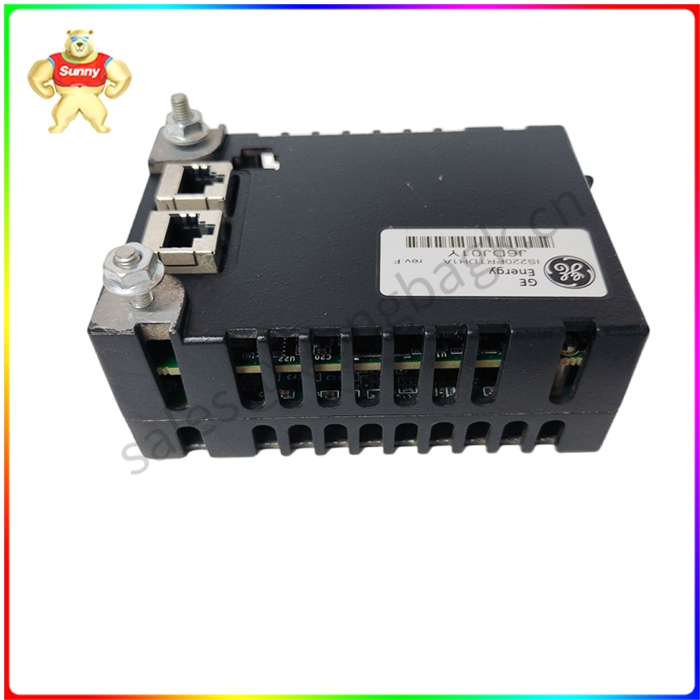

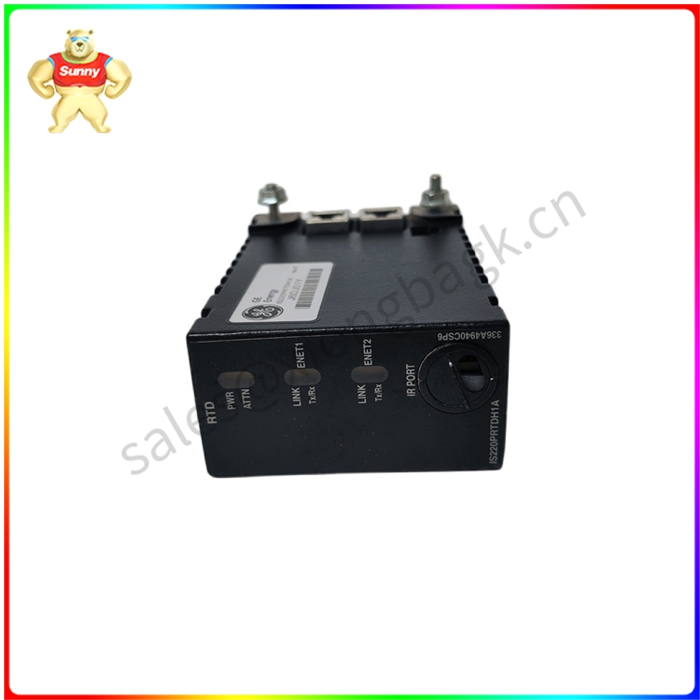

The front panel of the IS220PRTDH1A includes LED indicators for two Ethernet ports on the I/O unit, as well as power and ATTN LED indicators. Ports are located on the side of the device.
Before adding any type of packaging material, the unit weighs about 4.40 pounds. The dimensions are 34 x 18 x 10 cm. The unit carries the CE mark and UL certification.
