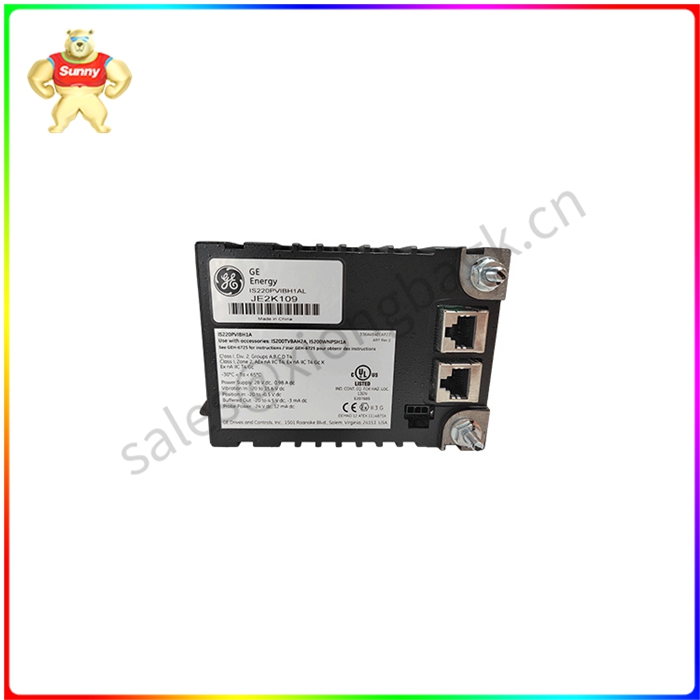

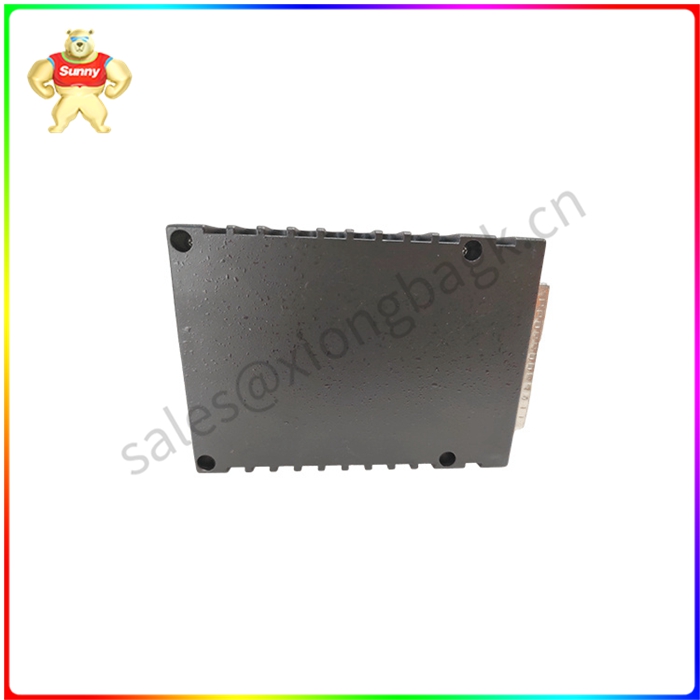

IS220PVIBH1A 336A4940CSP16 振动终端板和两个以太网之间提供电气接口

IS220PVIBH1A 336A4940CSP16 振动终端板和两个以太网之间提供电气接口

产品描述
IS220PVIBH1A 型号被设计为振动监测器包。PVIB包的主要功能是在zui多两个I/O以太网网络和一个振动终端板之间提供电气接口功能。该软件包的主要组件是主处理器板，它与大多数 MK VIe 分布式 I/O 包以及子板和采集板一起使用。

该套件上有 13 个通道，用于通过以下几种传感器类型收集和读取接近和振动信息：

维洛米托

地震的

近似器

加速度 计

传感器类型用于不同的通道，例如，加速度计仅用于通道一、二和三。 请注意，通道 9、10、11 和 12 只能用于支持近端，而第 13 道可以输入接近类型或键相信号类型。请注意，IS220PVIBH1A包上的 13 个差分输入有一个 DAC（数字模拟转换器），用于偏置调整，可以使信号的直流成分无效，从而更好地使 A/D（模数）输入范围居中。

PVIB I/O 包具有一个处理器应用程序代码，该代码可能包含允许该包从单以太网或双以太网输入运行所需的所有逻辑代码。当从两个以太网输入操作时，正确操作IS220PVIBH1A包所需的网络路径始终处于活动状态。如果由于任何原因任一网络发生故障，它不会对 I/O 包的运行造成任何类型的干扰，但故障将通过操作网络连接指示。

IS220PVIBH1A 336A4940CSP16 振动终端板和两个以太网之间提供电气接口

Product description
The IS220PVIBH1A model is designed as a vibration monitor package. The main function of the PVIB package is to provide electrical interface functionality between up to two I/O Ethernet networks and a vibrating terminal board. The main component of the package is the main processor board, which is used with most MK VIe distributed I/O packages as well as daughter boards and acquisition boards.

There are 13 channels on the kit for collecting and reading proximity and vibration information through several sensor types:

Vilomito

seismic

approximator

accelerometer

Sensor types are used for different channels, for example, accelerometers are only used for channels one, two, and three. Note that channels 9, 10, 11, and 12 can only be used to support the near end, while channel 13 can enter either the proximity type or the key confidence type. Note that the 13 differential inputs on the IS220PVIBH1A packet have A DAC (digital-to-analog converter) for bias adjustment that invalidates the DC component of the signal, better centering the A/D (analog-to-digital) input range.

A PVIB I/O package has a processor application code that may contain all the logic code needed to allow the package to run from single or dual Ethernet inputs. When operating from both Ethernet inputs, the network path required for proper operation of the IS220PVIBH1A packet is always active. If either network fails for any reason, it will not cause any type of interference to the operation of the I/O packet, but the failure will be indicated by the operational network connection.
