产品描述
IS230TDBTH6A是GE为Mark VI系统制造的PCB组件。Mark VI是GE发布的燃气轮机和蒸汽轮机管理平台，是Speedtronic系列的一部分。该平台可以设计为三重冗余或单工系统，以满足其相关涡轮机系统的尺寸和复杂性。

该IS230TDBTH6A用作分立式输入/输出端子板。 该组件可以安装在DIN导轨上。它接受多达 24 个组隔离的触点输入。这些触点的标称电压应为 125 V dc。IS230TDBTH6A是 TDBT 板的三个可用版本中zui强大的。

该IS230TDBTH6A由两个并排位于一个长板边缘的接线端子 （TB1/TB2） 组成。该板还装有 12 个继电器，这些继电器分为三行，每行 4 个、49 个金属氧化物压敏电阻 （MOV）、3 个母连接器（JE1、JW1 和 JW2）以及各种电阻器、二极管、电容器和集成电路。每个输入都具有用于浪涌抑制和降低高频噪声的滤波器。该板设计时没有跳线或可配置硬件。

IS230TDBTH6A安装在钣金托架上，该托架设计为然后安装到 DIN 导轨上。IS230TDBTH6A及其绝缘体也可以直接安装在钣金组件上，并用螺栓固定在机柜中。无论采用何种安装方式，所有维护和安装都应遵循制造商指南。有关此信息，请参阅制造商用户指南和手册。

IS230TDBTH6A 燃气轮机和蒸汽轮机

Product description
The IS230TDBTH6A is a PCB component manufactured by GE for the Mark VI system. Mark VI is a gas turbine and steam turbine management platform released by GE as part of the Speedtronic family. The platform can be designed as a triple redundant or simplex system to meet the size and complexity of its associated turbine system.

The IS230TDBTH6A is used as a separate input/output terminal board. The assembly can be mounted on a DIN rail. It accepts up to 24 groups of isolated contact inputs. The nominal voltage of these contacts should be 125 V dc. The IS230TDBTH6A is the most powerful of the three available versions of the TDBT board.

The IS230TDBTH6A consists of two terminals (TB1/TB2) located side by side at the edge of a long board. The board also houses 12 relays, which are divided into three rows of four each, 49 metal oxide varystors (MOV), three female connectors (JE1, JW1, and JW2), and various resistors, diodes, capacitors, and integrated circuits. Each input has a filter for surge suppression and high-frequency noise reduction. The board is designed without jumpers or configurable hardware.

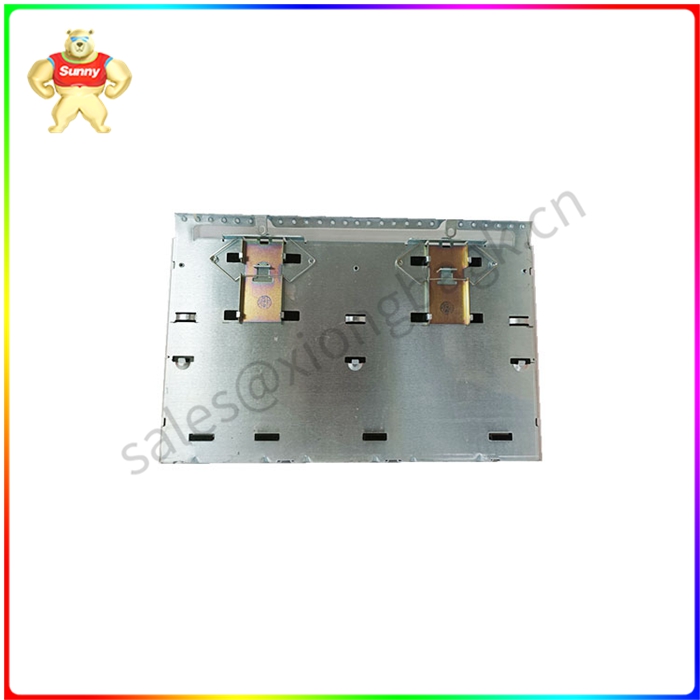

The IS230TDBTH6A is mounted on a sheet metal bracket that is then designed to be mounted onto a DIN rail. The IS230TDBTH6A and its insulators can also be mounted directly on the sheet metal assembly and bolted to the cabinet. Regardless of the installation method, all maintenance and installation should follow the manufacturer's guidelines. Refer to the manufacturer's User Guide and manual for this information.
