产品说明
IS420UCSCH2A-C-V0.1-A是通用电气公司为Mark VI系统开发的处理器/控制器。Mark VI平台旨在管理燃气或蒸汽涡轮机，由ge作为Speedtronic系列的一部分发布。它具有HMI(人机界面),带有为运行重型涡轮机而设计的软件，例如CIMPLICITY图形界面。

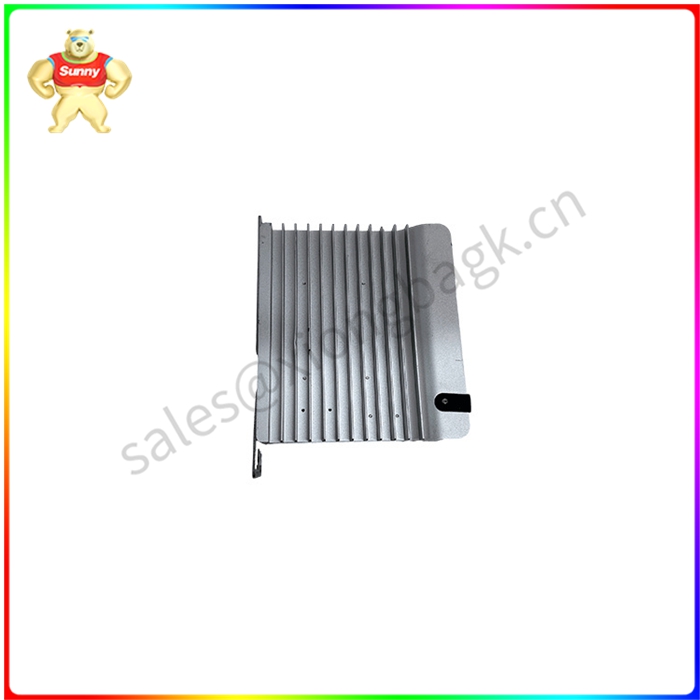

IS420UCSCH2A-C-V0.1-A是一个单独的盒装组件，带有一个前面板以允许通信连接，两个螺丝安装在后边缘，三面有格栅开口以允许空气流动。控制器设计用于机柜内的底座安装。zui多可将三个组件彼此相邻安装，形成一个紧凑的布局，便于为三冗余系统提供服务。

IS420UCSCH2A-C-V0.1-A在QNX操作系统上运行。它有一个飞思卡尔8349，667兆赫处理器。该板使用额定功率为18-36伏直流电、12瓦的电源。该板可在0至65摄氏度的温度下使用，即使在zui大额定温度下也不需要风扇来冷却。该板可用于NFPA 1级，分区。2应用程序。

IS420UCSCH2A-C-V0.1-A的前面板有六个母插孔连接器、一个USB端口和多个LED指示灯。这包括前面板左侧标有Link/Act的LED指示灯，以及面板中间标有Power、Boot、Online、Flash、DC和Diag的一行指示灯。插孔连接器用于以太网连接，使电路板能够与其他MKVI、MKVIe或EX2100励磁控制器以及维护站和操作员站通信。

IS420UCSCH2A-C-V0.1-A Mark VI系统开发 处理器/控制器

Product description
The IS420UCSCH2A-C-V0.1-A is a processor/controller developed by General Electric for the Mark VI system. The Mark VI platform, designed to manage gas or steam turbines, was released by ge as part of the Speedtronic family. It has an HMI(Human machine interface) with software designed for running heavy-duty turbines, such as the CIMPLICITY graphical interface.

The IS420UCSCH2A-C-V0.1-A is a separate boxed assembly with a front panel to allow communication connections, two screws mounted on the back edge, and grille openings on three sides to allow air flow. The controller is designed for mounting bases in cabinets. Up to three components can be installed next to each other to form a compact layout for easy service of triple-redundant systems.

IS420UCSCH2A-C-V0.1-A runs on the QNX operating system. It has a Freescale 8349,667 MHZ processor. The board uses a 12-watt power supply rated at 18-36 volts DC. The board can be used at temperatures from 0 to 65 degrees Celsius and does not require a fan to cool it even at maximum rated temperatures. The board can be used for NFPA Level 1, partitioning. 2 Application programs.

The front panel of the IS420UCSCH2A-C-V0.1-A has six female jack connectors, a USB port, and multiple LED indicators. This includes LED indicators labeled Link/Act on the left side of the front panel, and a row of indicators labeled Power, Boot, Online, Flash, DC, and Diag in the middle of the panel. The jack connector is used for Ethernet connectivity and enables the board to communicate with other MKVI, MKVIe, or EX2100 excitation controllers as well as with maintenance and operator stations.
