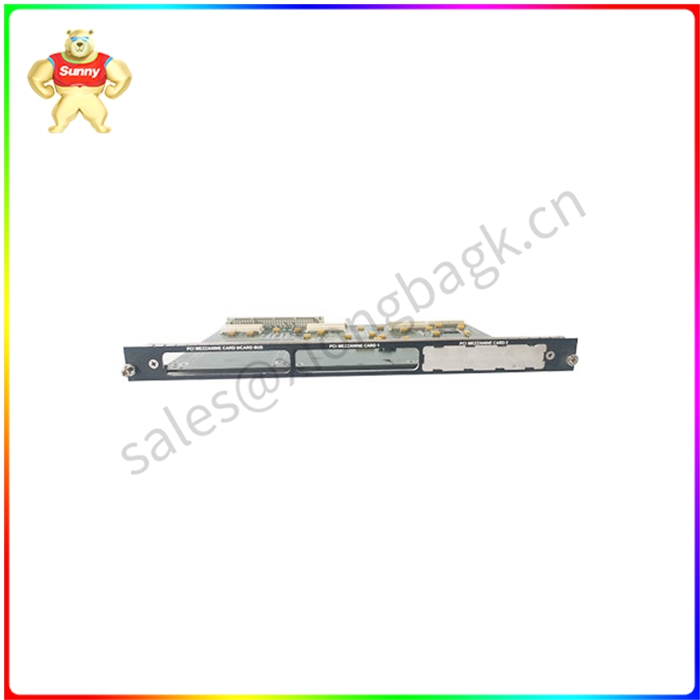

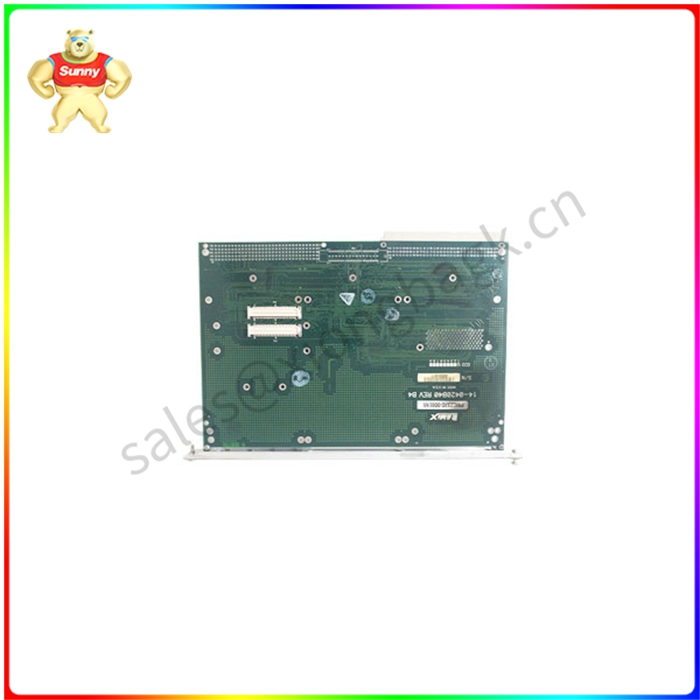

PMC237是一款6U规格卡扩展VMEbus上的单个PMC站点处理器板连接到两个PMC站点和一个PCMCIA/CardBus插槽或三个PMC站点。

兼容多种VMEbus单板计算机，它提供了PCI和扩展PCMCIA容量内的VMEbus形式因素。PMC237有PCMCIA/的选项CardBus卡安装在机箱外部使用18英寸的电缆。功能上，PMC237由PCI/PCI桥(确保遵从性)组成PCI加载)和一个可选的PCI/PCMCIA主机总线适配器(参见GE Fanuc Intelligent平台PCMCIA/PC卡主机总线适配器)。

全PCI带宽可以维持到PMCPMC237上安装的设备。PMC237提供多种配置定制板载功能和主机SBC连接。

该板可以填充三个PMC模块，或两个PMC模块和PCMCIA/PC卡总线插座。

PMC237为板载产生+3.3 V电压设备。PMC237只支持Power(5v)和从VMEbus接地。简单连接到主机

通过PMC连接到主机主机上的连接器(GE Fanuc,curtis-wright，FORCE)或通过供应商特定的PCI扩展连接器。

PMC237C-008EMI VME系统的PMC扩展卡 兼容多种VMEbus单板计算机

The PMC237 is a 6U specification card that extends a single PMC site processor board on a VMEbus connected to two PMC sites and one PCMCIA/CardBus slot or three PMC sites.

Compatible with a variety of VMEbus single-board computers, it provides VMEbus form factors within PCI and extended PCMCIA capacity. The PMC237 has the option of PCMCIA/ CardBus card mounted outside the case using an 18-inch cable. Functionally, the PMC237 consists of a PCI/PCI bridge (to ensure compliance) and an optional PCI/PCMCIA host bus adapter (see GE Fanuc Intelligent Platform PCMCIA/PC card Host Bus Adapter).

The full PCI bandwidth can be maintained to devices installed on the PMCPMC237. The PMC237 provides customized on-board functions and host SBC connectivity.

The board can be filled with three PMC modules, or two PMC modules and PCMCIA/PC card bus sockets.

The PMC237 is an on-board voltage generating + 3.3V device. The PMC237 only supports Power(5v) and ground from the VMEbus. Simple connection to host

Connect to a connector on the host machine via PMC (GE Fanuc,curtis-wright, FORCE) or via a vendor-specific PCI extension connector.
