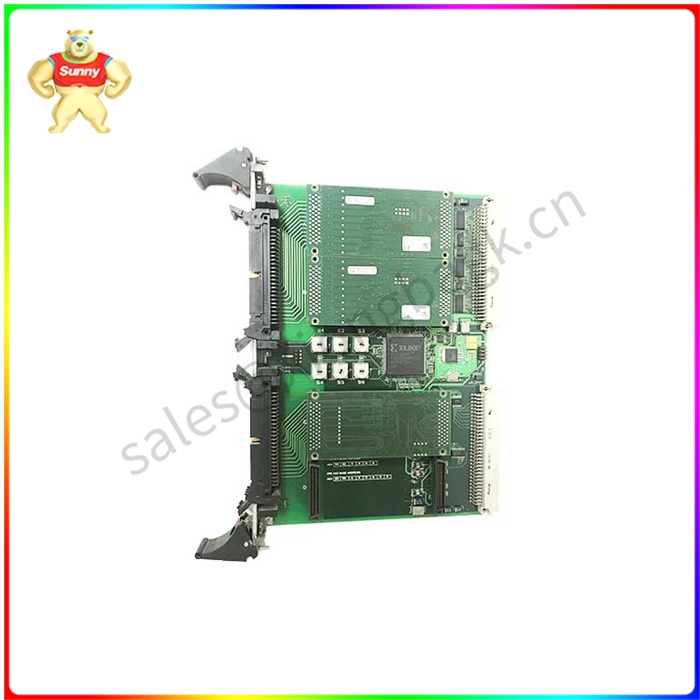

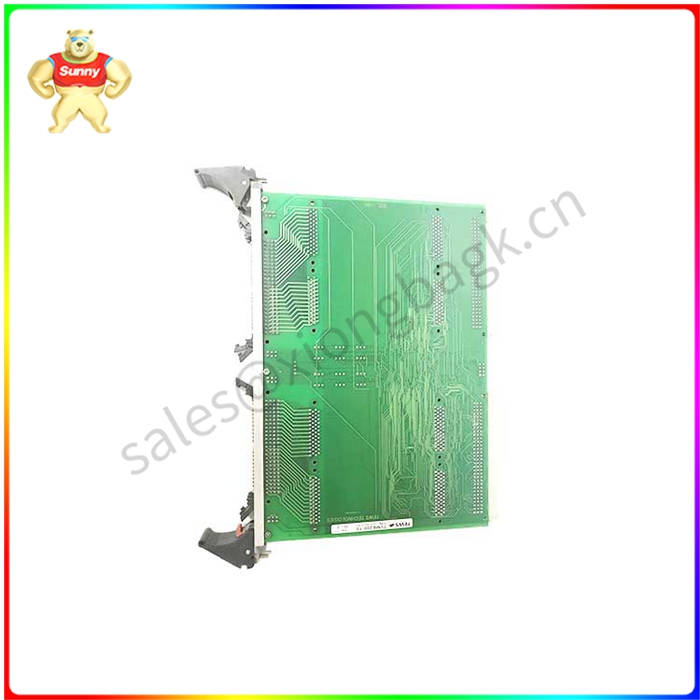

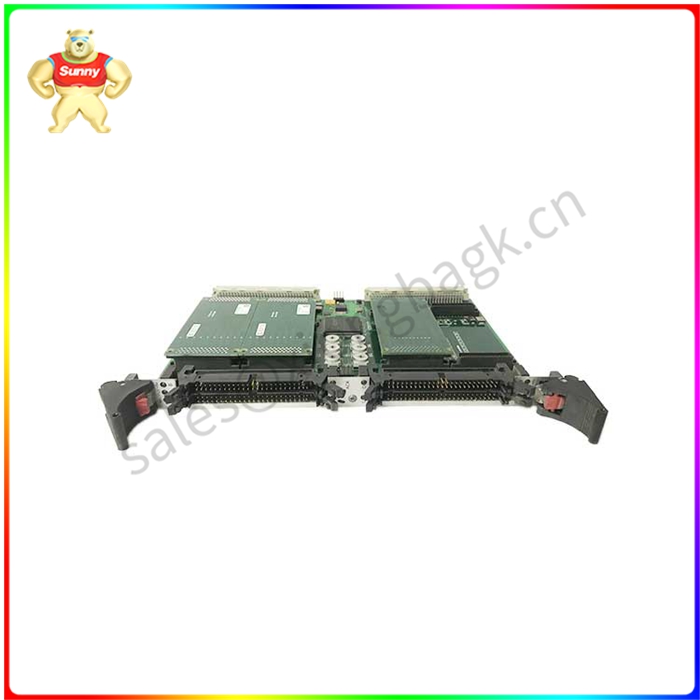

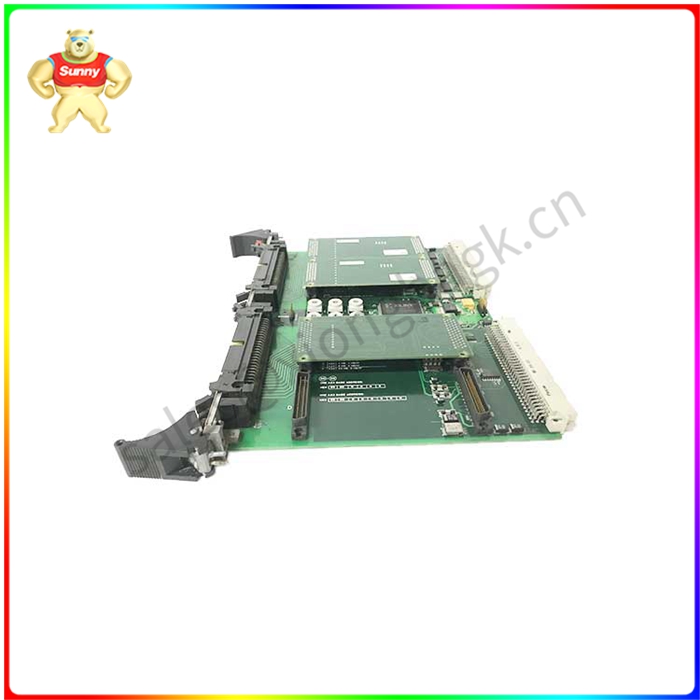

TVME200是6U VMEbus载体，zui多支持4个单尺寸或2个双尺寸IndustryPack (IP)模块，用于构建模块化、灵活且经济高效的I/O解决方案，应用于过程控制、医疗系统、电信和交通控制。

一组16位旋转开关允许轻松配置VME短I/O和内存地址。从IP插槽到VME IRQ的中断路由有两种方式:通过软件编程或通过旋转开关选择预定义的设置。

安装在TVME200前面板上的四个50针0.1英寸扁平带状电缆连接器可接入所有IP I/O线路。此外，在TVME200-20R上，IP D的所有I/O线都可以连接到VME P2，IP C的14条用户可选I/O线可以通过跳线场连接到VME P2。

提供IP访问、+5V和+/-12V的状态指示器。

IP电源线由自愈保险丝保护，并经过射频滤波。工作温度范围为-40°C至+85°C。

TEWS TVME200-10 数字存储示波器

The TVME200 is a 6U VMEbus carrier that supports up to four single-size or two dual-size IndustryPack (IP) modules for building modular, flexible and cost-effective I/O solutions for process control, medical systems, telecommunications and traffic control.

A set of 16-bit rotary switches allows easy configuration of VME short I/O and memory addresses. There are two ways to route an interrupt from the IP slot to the VME IRQ: by software programming or by selecting a predefined setting via a rotary switch.

Four 50-pin 0.1-inch flat ribbon cable connectors mounted on the front panel of the TVME200 provide access to all IP I/O lines. In addition, on TVME200-20R, all I/O lines of IP D can be connected to VME P2, and 14 user-optional I/O lines of IP C can be connected to VME P2 via a jumper field.

Provides IP access, +5V and +/-12V status indicators.

IP power cables are protected by self-healing fuses and are RF filtered. Operating temperature range is -40°C to +85°C.
