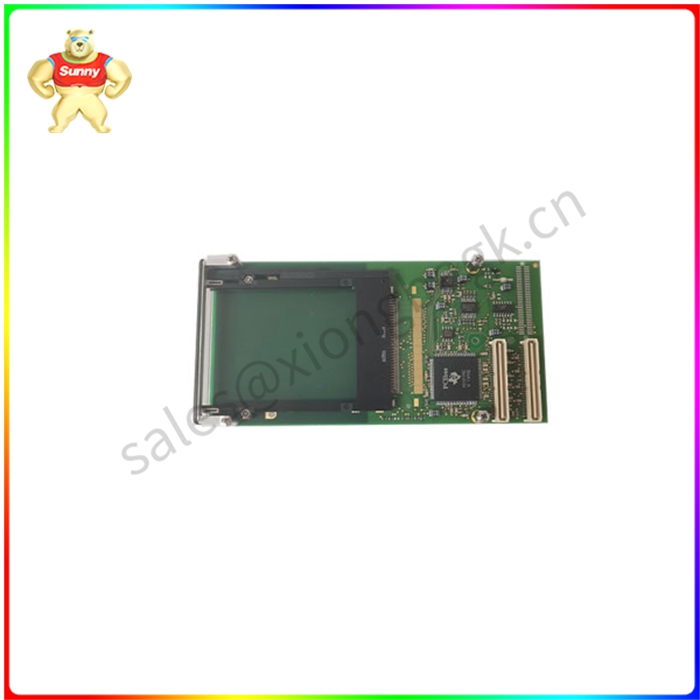

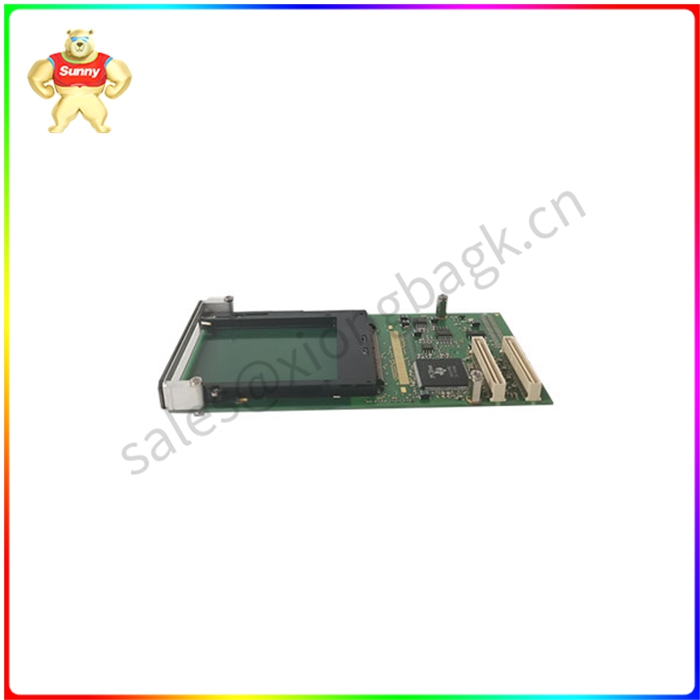

TPMC871-10 单宽度32位PMC模块 用于16位PC卡

TPMC871-10 单宽度32位PMC模块 用于16位PC卡

特点:
符合IEEE P1386.1的标准单宽32位PMC模块
PCI 2.1兼容接口
纸板尺寸:149毫米x 74mm毫米
1个可热插拔的PC卡插槽
支持I类和II类内存和I/O卡
Tews Technologies TPMC871是一个标准的单宽度32位PMC模块，具有一个接口，用于16位PC卡或32位Cardbus卡，使用PC卡控制器和电源管理单元。PC卡控制器的寄存器映射与Intel 82365-DF兼容。

电源管理单元提供3.3V或5.0V PC卡电源和3.3V、5.0V或12V PC卡编程电压。由于电源管理单元的短路和热保护，模块上不需要外部保险丝。

TPMC871提供一个16位PC卡的完整ExCA寄存器实现，与PCMCIA 2.1/JEIDA 4.2标准兼容。支持内存卡和I/O卡。多达五个存储器窗口和多达两个I/O窗口可用于PC卡16的访问。对于32位Cardbus卡，控制器支持两个存储器窗口和两个I/O窗口。Cardbus卡状态信息可以在五个Cardbus插槽寄存器中访问，这些寄存器可以映射到主机存储空间中。

TPMC871-10 单宽度32位PMC模块 用于16位PC卡

Features:
Standard single-width 32-bit PMC module compliant with IEEE P1386.1
PCI 2.1 compatible interface
Board size :149 mm x 74mm
One hot-swappable PC card slot
Class I and Class II memory and I/O cards are supported
Tews Technologies TPMC871 is a standard single-width 32-bit PMC module with one interface for 16-bit PC cards or 32-bit Cardbus cards, using a PC card controller and power management unit. The PC card controller's register map is compatible with Intel 82365-DF.

The power management unit provides 3.3V or 5.0V PC card power supply and 3.3V, 5.0V or 12V PC card programming voltage. Due to the short circuit and thermal protection of the power management unit, no external fuse is required on the module.

The TPMC871 provides a full ExCA register implementation for a 16-bit PC card, compatible with the PCMCIA 2.1/JEIDA 4.2 standard. Supports memory cards and I/O cards. Up to five memory Windows and up to two I/O Windows can be used for PC card 16 access. For 32-bit Cardbus cards, the controller supports two memory Windows and two I/O Windows. Cardbus card status information can be accessed in five Cardbus slot registers that can be mapped to host storage.
