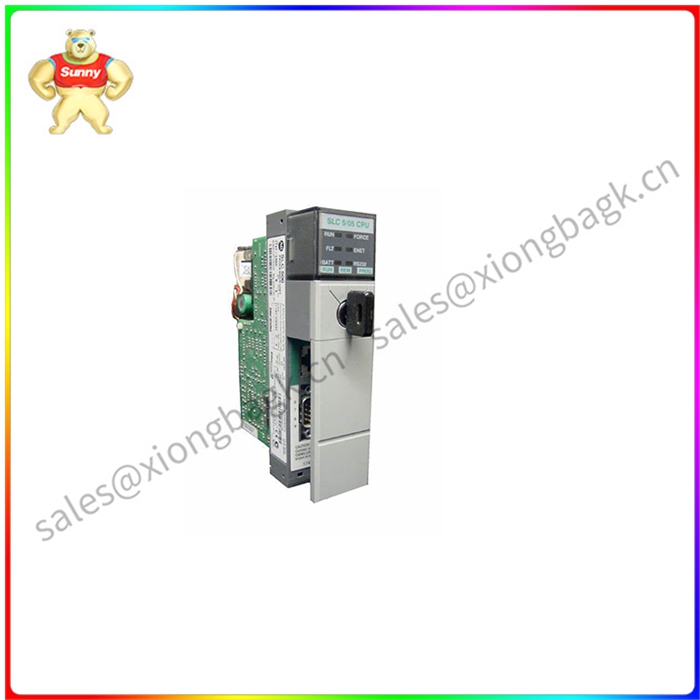

1747-L552 SLC 500 模块化硬件控制器模块

1747-L552 SLC 500 模块化硬件控制器模块

1747-L552 是 SLC 500 处理器，属于 SLC 5/05 的子类别。此处理器是单插槽处理器，可直接连接到任何 SLC 500 机箱的背板。该处理器集成了 RS232 端口，用于点对点通信和以太网通信，用于网络应用和同步数据交换。

该处理器非常适合用于大中型应用，重点是将机器级区域集成到企业级。该处理器还为工业物联网 （IIoT） 要求提供了实用的集成功能。

与SLC 500平台下的其他处理器不同，这些处理器的嵌入式通信功能包括DH485、Data Highway Plus（DH+）、远程I/O和DeviceNet。这些通信协议是专有的，需要专用模块或第三方转换器和网关来实现垂直集成。借助嵌入式以太网，该处理器开箱即用，可进行垂直集成。

RS232 通信端口是人机界面 （HMI） 通信的理想选择，通常安装在安装可编程逻辑控制器 （PLC） 处理器的同一面板上，因为 RS232 的距离覆盖范围有限。

1747-L552 的大内存容量具有 4096 个输入和输出的 IO 容量，允许处理器控制多个小型进程或单个大型进程。必须考虑系统关键性，以正确规划哪些进程可以包含在相同的处理器中。它还支持远程 I/O 拓扑的实现，以便战略性地安装 I/O 模块。

该模块的zui大用户内存为 32K 字，其中 28K 字用于数据或程序，4K 字用于用户数据。处理器的输入和输出的绝 对zui大 I/O 数量为 4096 个。它还具有 480 点的zui大本地模拟。该处理器zui多支持一百零七 （107） 个编程指令，并允许安装多达三 （3） 个机箱，zui多三十 （30） 个插槽。该处理器的zui大输入电流为 1A（5 伏直流电）和 0A（24 伏直流电）。它的典型程序扫描时间为 0.9 毫秒/K，I/O 扫描时间为 0.225 毫秒，XIC 位执行时间为 0.37 μs。根据电源负载的不同，该处理器在断电后具有 20 毫秒到 3 秒的程序扫描保持时间。它的工作振动为 0.015 英寸，峰峰值位移为 5 至 57 赫兹，2.5G 加速度为 57 至 2000 赫兹。该处理器还具有 30G 的工作冲击和 5% 至 95% 的非冷凝相对湿度。该处理器的工作温度范围为 0 至 60 摄氏度，存储温度范围为 -40 至 85 摄氏度。

添加或移除模块时必须关闭电源。状态 LED 可用于此处理器，这些 LED 可让您监控其当前状态。1747-L552 处理器具有开放式机箱，并通过机箱安装。整个处理器尺寸为 145 x 35 x 142 毫米。此处理器的以太网连接启用了 BOOTP，它支持多达 48 个传入或传出连接。每个目标节点只能建立一次传出连接.如果多个 MSG 指令使用相同的目标节点，它们将共享同一连接。该处理器还具有一个 RS-232 端口和一个闪存备份存储器。它有一个用户可更换的锂电池，平均可以使用两年。1747-L552 处理器有一个电容器，这使得处理器可以在电池本身断开连接的情况下使用备用电池运行至少 30 分钟。电池必须在 30 分钟内连接到处理器，以免丢失 RAM 中的数据。

1747-L552 SLC 500 模块化硬件控制器模块

The 1747-L552 is an SLC 500 processor that belongs to the SLC 5/05 subcategory. This processor is a single-slot processor that connects directly to the backplane of any SLC 500 chassis. The processor integrates an RS232 port for point-to-point and Ethernet communication for networking applications and synchronous data exchange.

The processor is well suited for medium to large scale applications, with a focus on integrating machine-level areas to the enterprise level. The processor also provides practical integration capabilities for Industrial Internet of Things (IIoT) requirements.

Unlike other processors under the SLC 500 platform, these processors include DH485, Data Highway Plus (DH+), remote I/O, and DeviceNet. These communication protocols are proprietary and require dedicated modules or third-party converters and gateways for vertical integration. With embedded Ethernet, the processor can be vertically integrated out of the box.

The RS232 communication port is ideal for human-machine interface (HMI) communication, and is usually installed on the same panel where the programmable logic controller (PLC) processor is installed, due to the limited range coverage of the RS232.

The large memory capacity of the 1747-L552 has an IO capacity of 4096 inputs and outputs, allowing the processor to control multiple small processes or a single large process. System criticality must be considered to properly plan which processes can be included in the same processor. It also supports the implementation of remote I/O topologies for strategic installation of I/O modules.

The module has a maximum user memory of 32K words, of which 28K words are for data or programs and 4K words are for user data. The absolute maximum number of I/ OS for the input and output of the processor is 4096. It also has a maximum local simulation of 480 points. The processor supports up to one hundred and seven (107) programming instructions and allows the installation of up to three (3) cases with up to thirty (30) slots. The processor's maximum input currents are 1A (5 volts DC) and 0A (24 volts DC). Its typical program scan time is 0.9 ms /K, I/O scan time is 0.225 ms, and XIC bit execution time is 0.37 μs. Depending on the power load, the processor has a program scan hold time of 20 milliseconds to 3 seconds after power failure. It has an operating vibration of 0.015 inches, peak-to-peak displacement of 5 to 57 Hz, and 2.5G acceleration of 57 to 2000 Hz. The processor also has a 30G operating shock and 5% to 95% non-condensing relative humidity. The processor has an operating temperature range of 0 to 60 degrees Celsius and a storage temperature range of -40 to 85 degrees Celsius.

You must turn off the power when adding or removing a module. Status leds are available for this processor, and these leds allow you to monitor its current status. The 1747-L552 processor has an open chassis and is mounted through the chassis. The entire processor measures 145 x 35 x 142 mm. BOOTP is enabled for this processor's Ethernet connection, which supports up to 48 incoming or outgoing connections. Only one outgoing connection can be established per destination node. If multiple MSG instructions use the same target node, they will share the same connection. The processor also has an RS-232 port and a flash backup memory. It has a user-replaceable lithium battery that lasts an average of two years. The 1747-L552 processor has a capacitor, which allows the processor to run on a backup battery for at least 30 minutes if the battery itself is disconnected. The battery must be connected to the processor within 30 minutes to avoid losing data in RAM.
