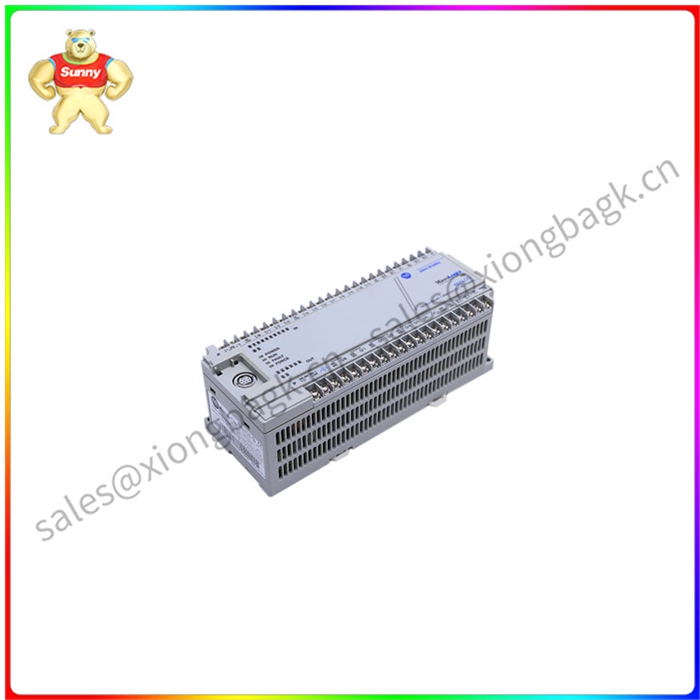

1762-IF2OF2 是 MicroLogix 1100 / 1200 / 1400 模拟组合模块

1762-IF2OF2 是 MicroLogix 1100 / 1200 / 1400 模拟组合模块

1762-IF2OF2 是一款扩展模块，可与 Allen-Bradley 的 MicroLogix 1100、1200 和 1400 可编程 Logix 控制器 （PLC） 配合使用。该模块是一个组合模拟 I/O 模块，总共集成了四 （4） 个模拟通道，包括两 （2） 个输入和两 （2） 个输出，均可配置为电压或电流信号。

该模块的输入通道支持差分输入，而输出为单端输出。输入和输出的兼容信号为 4 至 20 mA，而电压输入为 0 至 10V。全范围输入和输出为 0 至 10.5Vdc 和 0 至 21 mA。具有 12 位分辨率。重复性为±0.12%。

该模块安装在 MicroLogix 1100 / 1200 / 1400 紧凑型底座旁边。提供的带状电缆连接到相邻的电缆以建立模块化总线，以提供模块互连和总线电压的分配。它可以沿着主控制器底座安装在DIN导轨上，也可以直接安装在安装板上。这两种安装方法都需要适当的接地，以消除和减少可能影响设备运行的噪音。

由于 MicroLogix 控制器产品系列的扩展能力有限，因此该扩展模块通过集成多种信号类型并节省扩展和面板空间，提供了一种经济高效的解决方案。

该模块的模拟输入电路配有一个模数转换器，该转换器将接收到的模拟信号转换为具有 12 位单极性分辨率的二进制编码寄存器。模拟输入可以表示过程变量的大小，例如流量、液位、压力和温度。

模拟输出可用于驱动调制设备，例如调制控制阀、变频驱动器、阻尼器、百叶窗和许多其他以调制方式移动的设备。它还可用于重新传输数据，供数据记录器、指示器、记录器和其他接收元件使用。

Allen-Bradley 的 1762-IF2OF2 MicroLogix 模拟量 I/O 模块是一款扩展 I/O 模块，可连接到 MicroLogix 1100 / 1200 / 1400 可编程控制器，专为工业环境而设计。1762-IF2OF2 具有 2 个差分单极性输入，更新时间为 2.5ms。它具有一个集成的模数转换器，可通过逐次逼近将接收到的输入信号转换为二进制康德斯。1762-IF2OF2 的共模输入电压范围为 +/-27 V，在 50 至 60 赫兹的共模抑制下为 55 dB。它具有 +/-0.12% 的非线性，在 -20 至 65 华氏度（-4 至 149 华氏度）时具有 +/-0.55% 的全精度，在 25 摄氏度（77 华氏度）下具有 +/-0.3% 的总体精度。它在端电压下的输入阻抗为 200 kOhms，在端电流下的输入阻抗为 250 Ω。

1762-IF2OF2 具有 +/-30 伏的输入电压保护和 +/-32mA 的输入电流保护。1762-IF2OF2 在 5 V DC 时的zui大总线消耗电流为 4 0mA，在 24 V DC 时为 105 mA，模拟工作电压范围在 0 到 10 V DC 和 4 到 20 mA 之间，可以达到 0 至 10.5 V DC 和 0 至 21 mA 的满量程范围。它具有 12 位单极性分辨率和 +/-0.12% 的可重复性。1762-IF2OF2 的尺寸为 90 x 87 x 40 毫米（3.54 x 3.43 x 1.58 英寸），重量约为 240 克（0.53 磅）。它的工作温度范围为 -20 - 65 摄氏度（-4 和 149 华氏度），储存温度在 -40 到 85 摄氏度（-40 到 185 华氏度）之间，相对湿度为 5 到 95%。1762-IF2OF2 可在 2000 米（6561 英尺）的高度运行而不会降额，并可承受 30G 的zui大冲击。


1762-IF2OF2 是 MicroLogix 1100 / 1200 / 1400 模拟组合模块

The 1762-IF2OF2 is an expansion module that works with Allen-Bradley's MicroLogix 1100, 1200, and 1400 programmable Logix controllers (PLCS). The module is a combined analog I/O module that integrates a total of four (4) analog channels, including two (2) inputs and two (2) outputs, all configurable as voltage or current signals.

The input channel of the module supports differential input, while the output is single-ended output. The compatible signals for input and output are 4 to 20 mA, while the voltage input is 0 to 10V. The full range of inputs and outputs is 0 to 10.5Vdc and 0 to 21 mA. With 12-bit resolution. Repeatability was ±0.12%.

The module is mounted next to the MicroLogix 1100/1200/1400 compact base. The supplied ribbon cable connects to adjacent cables to establish a modular bus to provide module interconnection and distribution of bus voltage. It can be mounted on the DIN rail along the main controller base or directly on the mounting plate. Both installation methods require proper grounding to eliminate and reduce noise that can affect the operation of the equipment.

Due to the limited scalability of the MicroLogix controller product family, this expansion module provides a cost-effective solution by integrating multiple signal types and saving expansion and panel space.

The analog input circuit of the module is equipped with an analog-to-digital converter that converts the received analog signal into a binary-coded register with 12-bit unipolar resolution. Analog inputs can represent the magnitude of process variables, such as flow, level, pressure, and temperature.

Analog outputs can be used to drive modulation devices such as modulation control valves, variable frequency drivers, dampers, shutters, and many other devices that move in a modulated manner. It can also be used to retransmit data for use by data loggers, indicators, recorders and other receiving elements.

Allen-Bradley's 1762-IF2OF2 MicroLogix Analog I/O module is an extended I/O module that connects to MicroLogix 1100/1200/1400 programmable controllers and is designed for industrial environments. The 1762-IF2OF2 has two differential unipolar inputs with an update time of 2.5ms. It has an integrated analog-to-digital converter that converts the received input signal to binary Condes by successive approximations. The 1762-IF2OF2 has a common-mode input voltage range of +/-27 V and 55 dB at 50 to 60 Hz common-mode rejection. It has a nonlinearity of +/-0.12%, a full accuracy of +/-0.55% at -20 to 65 degrees Fahrenheit (-4 to 149 degrees Fahrenheit), and an overall accuracy of +/-0.3% at 25 degrees Celsius (77 degrees Fahrenheit). It has an input impedance of 200 kOhms at the end voltage and 250 Ω at the end current.

The 1762-IF2OF2 has input voltage protection of +/-30 volts and input current protection of +/-32mA. The 1762-IF2OF2 has a maximum bus consumption current of 4 0mA at 5 V DC, 105 mA at 24 V DC, and an analog operating voltage range between 0 to 10 V DC and 4 to 20 mA. Full scale ranges of 0 to 10.5V DC and 0 to 21 mA can be achieved. It has 12-bit unipolar resolution and a repeatability of +/-0.12%. The 1762-IF2OF2 measures 90 x 87 x 40 mm (3.54 x 3.43 x 1.58 in) and weighs about 240 grams (0.53 lb). It has an operating temperature range of -20 to 65 degrees Celsius (-4 and 149 degrees Fahrenheit), a storage temperature of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and a relative humidity of 5 to 95%. The 1762-IF2OF2 can operate at an altitude of 2,000 meters (6,561 feet) without derating and can withstand a maximum impact of 30G.
