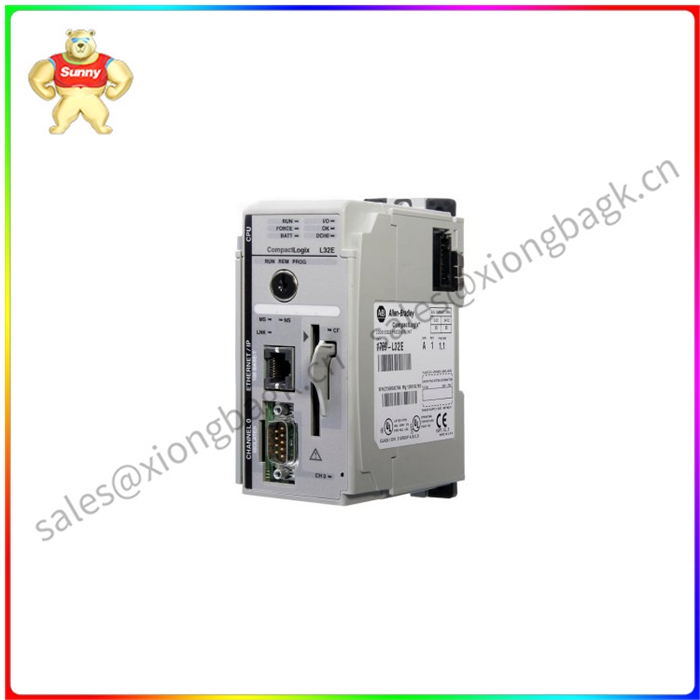

Allen-Bradley 1769- l35e 1769 CompactLogix控制器是一款可编程自动化控制器(PAC)，适用于过程和工厂自动化行业的中型控制要求。该控制器具有集成的One (1) RS232和One(1)以太网通信端口，集成内存为1.5MB。
该控制器支持安装三十(30)本地扩展银行I/O。它还允许扩展多达三(3)扩展银行与使用两(2)扩展电缆。

控制器修改，16。修订版17。对于19.015，使用19.01.00，而对于20.013，使用20.01.00。如果控制器版本是21.00或更高版本，请使用Studio 5000 Logix Designer。

以太网可以通过RSNetworx for Ethernet、BOOTP-DHCP和提供旋转交换机配置。所需的通信是标准的Cat5或Cat6电缆，支持zui远100米的距离。它还支持10/ 100mbps的传输速率，具有自动协商功能。
Allen-Bradley的1769-L35E CompactLogix控制器提供了复杂的系统控制和通信域，并与各种工业机器系统兼容。它配备了以太网和RS-232串行通信端口，具有1.5兆字节的操作内存。1769-L35E与1784-CF64紧凑型闪存非易失性存储器模块兼容，它可以支持zui多30个I/O模块，它有一个艾伦-布拉德利1769-BA可更换电池。1769-L35Ezui大扩展容量为30个模块，额定电源为4个模块。1769-L35E在直流5v时的输出电流为660mA，散热速率为5.5瓦，zui大绝缘电压为30伏，背板电流为660mA(直流5v时)。尽管这是一个生命周期结束的产品，我们将继续销售1769-L35E，即使它已经过时。
1769-L35E可以使用艾伦-布拉德利1747-CP3/1756-CP3电缆通过以太网编程，它可以通过使用DIN导轨(具有20 G的操作冲击额定值)或面板安装(具有30 G的操作冲击额定值)轻松安装。1769-L35E具有5 G的操作振动，频率为10至500赫兹。1769-L35E可以承受1.1到1.8 N-m的安装扭矩。它具有CISPA11 1类(1组)排放认证和开放式外壳。1769-L35E的重量约为0.30公斤(0.66磅)。它的工作温度范围为0至60摄氏度(32至140华氏度)，储存温度范围为-40至85摄氏度(-40至185华氏度)，相对湿度范围为0至95%，不凝结。该单元可以安装几种不同的电源，包括1769-PA4。
RS232通信端口使用的线缆型号为1756-CP3或1747-CP3串口线缆。这也可以制造为RS232通信端口使用标准的9针DB9连接器。电缆长度限制在15.2米以内。支持DF1、DH485通信协议。

该控制器符合IEC-61131-3对PLC和PAC编程语言的要求。该控制器支持梯形，功能块，语句列表，结构化文本和序列功能图编程。这些编程语言可以在程序的不同部分组合使用。

1769-L35E CompactLogix控制器是一款可编程自动化控制器

The Allen-Bradley 1769-L35E 1769 CompactLogix controller is a programmable automation controller (PAC) for the medium-sized control requirements of the process and factory automation industries. The controller features integrated One(1) RS232 and One(1) Ethernet communication ports with 1.5MB of integrated memory.
The controller supports installation of thirty (30) local expansion bank I/O. It also allows expansion of up to three (3) extension banks with the use of two (2) extension cables.

Controller modification, 16. Revision 17. For 19.015, 19.01.00 is used, and for 20.013, 20.01.00 is used. If the controller version is 21.00 or later, use the Studio 5000 Logix Designer.

Ethernet can be configured via RSNetworx for Ethernet, BOOTP-DHCP, and by providing rotary switches. The required communication is a standard Cat5 or Cat6 cable that supports distances up to 100 meters. It also supports 10/100mbps transfer rates with auto-negotiation.
Allen-Bradley's 1769-L35E CompactLogix controller provides complex system control and communication domains and is compatible with a wide range of industrial machine systems. It is equipped with Ethernet and RS-232 serial communication ports and has 1.5 megabytes of operating memory. The 1769-L35E is compatible with the 1784-CF64 compact flash non-volatile memory module, it can support up to 30 I/O modules, and it has an Allen-Bradley 1769-BA replaceable battery. The 1769-L35E has a maximum expansion capacity of 30 modules and a rated power supply of 4 modules. The 1769-L35E has an output current of 660mA at 5v DC, a heat dissipation rate of 5.5 watts, a maximum insulation voltage of 30 volts, and a backplane current of 660mA(5v DC). Even though this is an end-of-life product, we will continue to sell the 1769-L35E even though it is obsolete.
The 1769-L35E can be programmed via Ethernet using an Allen-Bradley 1747-CP3/1756-CP3 cable, and it can be easily installed by using a DIN rail (with a 20 G operating impact rating) or a panel mount (with a 30 G operating impact rating). The 1769-L35E has an operating vibration of 5 G with a frequency of 10 to 500 Hz. The 1769-L35E can withstand mounting torques from 1.1 to 1.8 N-m. It has CISPA11 Class 1 (Group 1) emission certification and open housing. The 1769-L35E weighs about 0.30 kg (0.66 lb). It operates in a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), is stored in a temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and has a relative humidity range of 0 to 95% without condensation. The unit can be installed with several different power supplies, including 1769-PA4.
The RS232 communication port uses a 1756-CP3 or 1747-CP3 serial cable. This can also be manufactured for RS232 communication ports using standard 9-pin DB9 connectors. Cable length is limited to 15.2 meters. Supports DF1 and DH485 communication protocols.

The controller complies with IEC-61131-3 requirements for PLC and PAC programming languages. The controller supports ladder, function block, statement list, structured text and sequence function diagram programming. These programming languages can be used in combination with different parts of a program.
