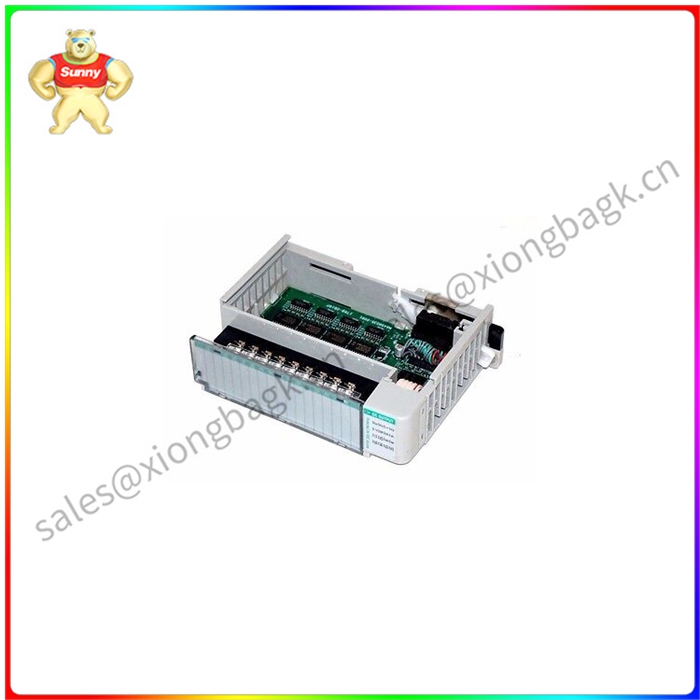

1769-OB16P 是一款固态输出模块，列属于 1769 紧凑型 I/O 产品系。该模块与 Allen-Bradley 的 CompactLogix 和 MicroLogix 控制器兼容。使用 CompactLogix，它可以作为本地 I/O 模块和扩展 I/O 模块进行安装。使用 MicroLogix，它可以作为本地 I/O 扩展模块进行服务器。

1769-OB16P 在供电配置中提供 20.4-26.4VDC 的输出电压范围。每个输出通道的信号转换延迟为 1.0 ms（ON 转换）和 2.0 ms（关闭转换）。它的电流消耗为 160 mA，每个通道的输出电流为 0.5 A @ 60 °C （140 °F） 或 1.0 A @ 30 °C （86 °F），每个模块的输出电流为 4.0 A @ 60 °C （140 °F） 或 8.0 A @ 30 °C （86 °F）。它的浪涌电流额定值为 2.0 A，持续 10 ms，每 1 秒可重复一次。 1769-OB16P 保护装置配有 1769-RTB18 可拆卸接线端子 （RTB）、1769-RL1 门标签和 1769-RD 门。

这可以通过单独的套件单独订购。1769-OB16P 的电源距离额定值为八 （8） 模块，指的是模块相对于电源的位置。它的安装不得超过电源距离额定值，以保持有效的 CompactLogix 配置。其他电源模块（如 1769-PA2、1769-PB2、1769-PA4、1769-PB4）可以沿 CompactLogix 组件使用和安装，以为超出主电源能力的模块供电。

1769-OB16P 输出模块的电压输出延迟为 1.0 毫秒，输出延迟（关闭模式）为 2.0 毫秒。它在 5.1 V DC 和 2.69 W 散热时具有 160 mA 的消耗电流。1769-OB16P 输出模块在 26.4 V DC 时的漏电流为 1.0 mA，zui小导通电流额定值为 1.0 mA。1769-OB16P Allen-Bradley 输出模块的zui大导通压降额定值为 0.5 伏，在 60 摄氏度（140 华氏度）时具有 0.5 安培的zui大额定电流，在 30 摄氏度（86 华氏度）时具有 1.0 安培的zui大额定电流。它还具有 4.0 安培的zui大额定电流（60 摄氏度（140 华氏度）和 8.0 安培的zui大额定电流（30 摄氏度（86 华氏度）每个模块，以及 2.0 毫秒的 10 安培浪涌电流额定值，每 1 秒重复一次。1769-OB16P 输出模块配备 IEC 2 级增强绝缘，可提供高达 75 伏直流电压的保护。1769-OB16P 输出模块有 8 个模块，尺寸约为 4.65 x 1.38 x 3.43 英寸。它重 0.56 磅。

1769-OB16P 是一款固态输出模块 属于 1769 紧凑型 I/O 产品系

The 1769-OB16P is a solid-state output module that belongs to the 1769 compact I/O product family. The module is compatible with Allen-Bradley's CompactLogix and MicroLogix controllers. With CompactLogix, it can be installed as both a local I/O module and an extended I/O module. With MicroLogix, it can act as a local I/O expansion module for the server.

The 1769-OB16P offers an output voltage range of 20.4-26.4VDC in the power supply configuration. The signal conversion delay for each output channel is 1.0 ms (ON conversion) and 2.0 ms (off conversion). It has A current consumption of 160 mA and an output current of 0.5 A @ 60 °C (140 °F) or 1.0 A @ 30 °C (86 °F) per channel. Each module has an output current of 4.0A@ 60 °C (140 °F) or 8.0A@ 30 °C (86 °F). It has A surge current rating of 2.0 A for 10 ms and can be repeated every 1 second. The 1769-OB16P protection is equipped with 1769-RTB18 detachable terminal (RTB), 1769-RL1 door tag, and 1769-RD door.

This can be ordered separately through a separate kit. The 1769-OB16P has a power distance rating of eight (8) modules, which refers to the position of the module relative to the power supply. It must not be installed beyond the power distance rating to maintain an effective CompactLogix configuration. Other power modules (such as 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4) can be used and installed along the CompactLogix assembly to power modules beyond the capacity of the main power supply.

The 1769-OB16P output module has a voltage output delay of 1.0 ms and an output delay (off mode) of 2.0 ms. It has a current consumption of 160 mA at 5.1V DC and 2.69W heat dissipation. The 1769-OB16P output module has a leakage current of 1.0 mA at 26.4V DC and a minimum on-current rating of 1.0 mA. The 1769-OB16P Allen-Bradley output module has a maximum on-voltage drop rating of 0.5 volts and a maximum rated current of 0.5 amps at 60 degrees Celsius (140 degrees Fahrenheit) and 1.0 amps at 30 degrees Celsius (86 degrees Fahrenheit). It also has a maximum current rating of 4.0 amps (60 degrees Celsius (140 degrees Fahrenheit) and 8.0 amps (30 degrees Celsius (86 degrees Fahrenheit) per module, as well as a 2.0 millisecond surge current rating of 10 amps, repeated every 1 second. The 1769-OB16P output module is equipped with IEC Class 2 enhanced insulation to provide protection up to 75 volts DC. The 1769-OB16P output module has eight modules measuring approximately 4.65 x 1.38 x 3.43 inches. It weighs 0.56 pounds.
