1769-OW16 是一个CompactLogix数字交流/直流继电器触点I/O模块

1769-OW16 是一个CompactLogix数字交流/直流继电器触点I/O模块

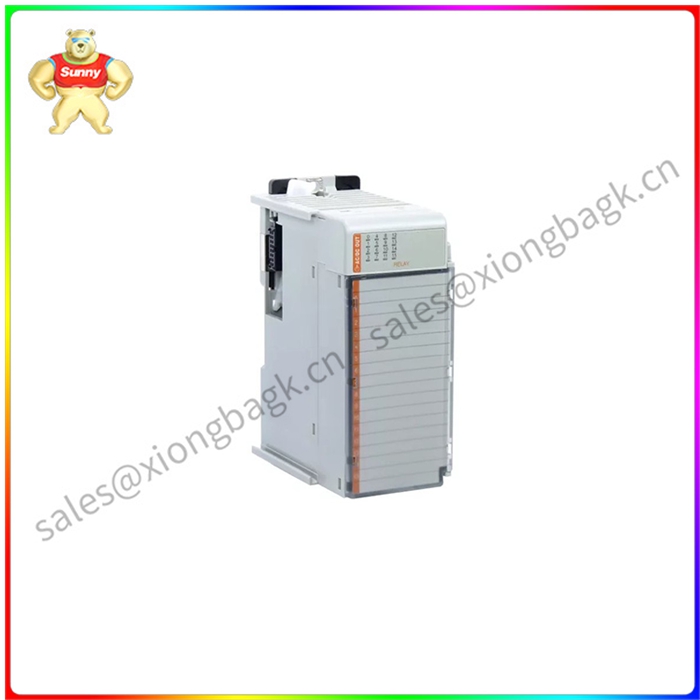

Allen-Bradley 1769-OW16是一个CompactLogix数字交流/直流继电器触点I/O模块。该输出模块有十六(16)常开触点，每组有八(8)点。

该模块的接触额定值为:125伏直流，28VA时0.22 A; 240伏交流，1800VA时7.5 A; 240伏交流，180VA时0.75安培。工作电压范围:交流电压5 ~ 265伏，直流电压5 ~ 125伏。该模块的电流在24伏特时为180毫安，在5.1伏特时为205毫安。每个模块的zui大电流为20A，每个点的zui大电流为2.5A。1769-OW16模块的zui大功耗为4.75瓦，zui大关断漏电流为0ma，直流电压为5v时，zui小通断电流为10ma。工作温度范围为0 ~ 60℃，无冷凝相对湿度范围为5% ~ 95%。
1769-OW16模块的工作冲击约为30G，工作时可承受约2G的振动。请注意，该模块对开和关状态都有10毫秒的延迟。1769-OW16提供了灵活性，并与各种应用程序(如CompactLogix控制器)兼容。此外，1769-OW16可以用作MicroLogix 1500控制器组件中的扩展I/O，也可以用于带有1769-ADN DeviceNet或1769-AENTR以太网适配器的组件中。
1769-OW16 I/O设备需要自己的电源，除非连接到MicroLogix 1500底座。1769-OW16模块可选配22 ~ 14awg实线或22 ~ 16awg绞合线缆。供电距离为8个模块。与该模块兼容的唯 一电源是1769-PA2, 1769-PB2, 1769-PA4和1769-B4，并且它只能安装在面板或DIN导轨上。1769-OW16模块的大致尺寸为4.65 x 2.07 x 3.43英寸，使用138毫米安装卡时，高度增加到5.43英寸。这个模块的重量大约是2磅。

1769-OW16是一个16通道继电器输出模块。该模块由Allen-Bradley为1769 CompactLogix产品系列制造。该模块有两(2)组，每组8个通道。这些输入组是单独隔离的，允许组在不同或相似的电压类别下工作。

该模块有16个A型干接点，每个通道每个点的输出功率高达2.5A。这使得该模块能够以更高的额定电流驱动电气和感性负载。该模块也适用于在不同电压类别下运行的系统。
1769-OW16连接MicroLogix或CompactLogix通信总线。将本模块安装到控制器组件的相邻模块上。通信总线还承载为Compact I/O模块供电的电源电压。在任意一个控制器系统的机箱中占用单个槽位。

当与MicroLogix 1500一起用作扩展I/O时，该模块安装在基本单元之后或任何相邻的Compact I/O上。MicroLogix 1500只支持Compact I/O模块。如果与CompactLogix系统一起使用，该模块可以作为本地或扩展I/O安装。它通过安装到相邻的I/O模块并锁定总线杠杆插入到通信中。

这些参数包括模块抑制、分组间隔、槽分配和修订号。通过访问模块的输入数据文件来执行详细的配置。数据文件存储输入地址的状态以及模块诊断信息。

1769-OW16 是一个CompactLogix数字交流/直流继电器触点I/O模块

The Allen-Bradley 1769-OW16 is a CompactLogix digital AC/DC relay contact I/O module.  This output module has Sixteen (16) Normally Open contacts, with Eight (8) points per group.

The module’s contact ratings are 0.22 A at 125 Volts DC, 28VA, and 7.5 A at 240 Volts AC, 1800VA for make and 0.75 Amps at 240 Volts AC, 180VA for Break.  Its operating voltage ranges are 5 to 265 Volts AC and 5 to 125 Volts DC.  The module’s current draw is 180 mA at 24 Volts and 205 mA at 5.1 Volts.  It also has a 20A maximum current per module and 2.5A maximum current per point.  The maximum power dissipation of the 1769-OW16 module is 4.75 Watts, the maximum off-state leakage is 0 mA, and the minimum on-state current is 10 mA at 5 Volts DC.  It has an operating temperature range of 0 to 60 degrees Celsius and a non-condensing relative humidity range of 5 to 95%.
The 1769-OW16 module has an operating shock of around 30G and while operating, it can withstand vibrations of around 2G.  Note that this module has a delay of 10 milliseconds for both the on and off states.  The 1769-OW16 provides flexibility and is compatible with various applications such as with a CompactLogix controller.  Additionally, the 1769-OW16 can be used as an expansion I/O in a MicroLogix 1500 controller assembly and in an assembly with either a 1769-ADN DeviceNet or 1769-AENTR Ethernet adapter.
The 1769-OW16 I/O device requires its own power supply, except when connected to a MicroLogix 1500 base.  Either 22 to 14 AWG solid cable or a 22 to 16 AWG stranded connection cable can be used with the 1769-OW16 module.  It has a power supply distance rating of 8 modules.  The only power supplies compatible with this module are the 1769-PA2, the 1769-PB2, the 1769-PA4, and the 1769-B4, and it can only be mounted with a panel or DIN rail mount.  The approximate dimensions of the 1769-OW16 module are 4.65 x 2.07 x 3.43 inches, with the height increased to 5.43 inches when using the 138-millimeter mounting tabs.  This module’s weight is around 2 pounds.

The 1769-OW16 is a Sixteen (16) channel Relay output module.  This module is manufactured by Allen-Bradley for the 1769 CompactLogix product family.  This module has Two (2) groups of Eight (8) channels each.  This input groups are individually isolated which permits the group to operate with different or similar voltage category.

This module has Sixteen (16) form A dry contacts, with each channel capable of up to 2.5A per point.  This allows the module to drive electrical and inductive loads with higher current rating.  This module is also practical for use in system that operate in different voltage categories.
The 1769-OW16 connects to the MicroLogix or CompactLogix communication bus.  Install this module to any adjacent module in the controller assembly.  The communication bus also carries the supply voltage that powers the Compact I/O module.  It occupies single slot in the chassis of either controller system.

When used with MicroLogix 1500 as expansion I/O, the module is installed after the base unit or to any adjacent Compact I/O.  Only Compact I/O modules are supported by MicroLogix 1500.  If used with CompactLogix system, the module is installed as a local or expansion I/O.  It is inserted to the communication by by installing to an adjacent I/O module and locking the bus levers.

These parameters include module inhibition, packet interval, slot assignment and revision number.  Detailed configuration is performed by accessing the module’s input data files.  The data files store the status of the input addresses as well as module diagnostics.
