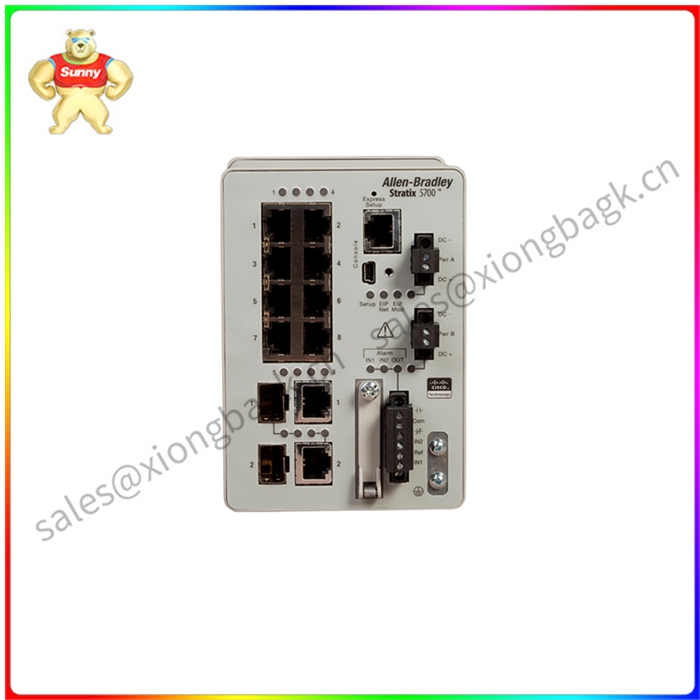

来自Allen-Bradley的Stratix 5700 1783-BMS10CL交换机是一款工业以太网交换机。交换机共有10个端口，其中2个端口为combo端口，8个端口为RJ45端口。RF45接口和combo接口均支持快速以太网。五个不同的SFP模块可以与组合端口一起使用，用于光纤连接。1783-BMS10CL交换机可安装的内存卡为1784-SD1内存条。1783-BMS10CL开关的存储/运输温度范围为-40至185华氏度。开关的工作温度范围为-40至140华氏度。

1783-BMS10CL开关的ESD抗扰度额定值为8千伏接触放电和15千伏空气放电。1783-BMS10CL范围的环境等级为ip30。开关的振动等级为2g，频率为10至500赫兹。1783-BMS10CL交换机重量约为1.25公斤，尺寸为5.1 x 3.6 x 4.59英寸。接地时，应至少使用12awg绞合铜。接地端子的zui大螺钉力矩为0.96 N-m。电源端子和报警端子的螺钉力矩为0.23 N-m。报警接线采用20 ~ 18awg绞合铜线或实铜线。直流电源线的线径为20 ~ 18awg绞合或实铜线，额定温度不低于75摄氏度。交换机输入的电源为直流12伏~ 48v。

1783-BMS10CL 交换机共有10个端口 2个端口为combo端口

The Stratix 5700 1783-BMS10CL switch from Allen-Bradley is an industrial Ethernet switch.  The switch comes with a total of 10 ports, out of which 2 ports are combo ports and 8 ports are RJ45 ports.  Both the RF45 ports and the combo ports support Fast Ethernet.  Five different SFP modules can be used with the combo ports for fiber connectivity.  The memory card which can be installed on the 1783-BMS10CL switch is the 1784-SD1 memory module.  The storage/transportation temperature range for the 1783-BMS10CL switch is -40 to 185 degrees Fahrenheit.  The operating temperature range for the switch is -40 to 140 degrees Fahrenheit.

The ESD immunity rating for the 1783-BMS10CL switch is 8 kilovolts of contact discharges and 15 kilovolts of air discharges.  The environmental rating of the 1783-BMS10CL range is IP 30.  The vibration rating for the switch is 2 G at 10 to 500 Hertz.  The approximate weight of the 1783-BMS10CL switch is 1.25 kilograms and the dimensions of the switch are 5.1 x 3.6 x 4.59 inches.  For the ground connection, 12 AWG stranded copper at minimum should be used.  The maximum screw torque for the ground terminals should be 0.96 N-m.  The screw torque for the power and alarms terminals should be 0.23 N-m.  The wire size for alarm connections should be 20 to 18 AWG stranded or solid copper wire.  The wire size for DC power wiring should be 20 to 18 AWG stranded or solid copper wire rated for minimum of 75 degrees Celsius.  The power input to the switch is 12 to 48 Volts DC.
