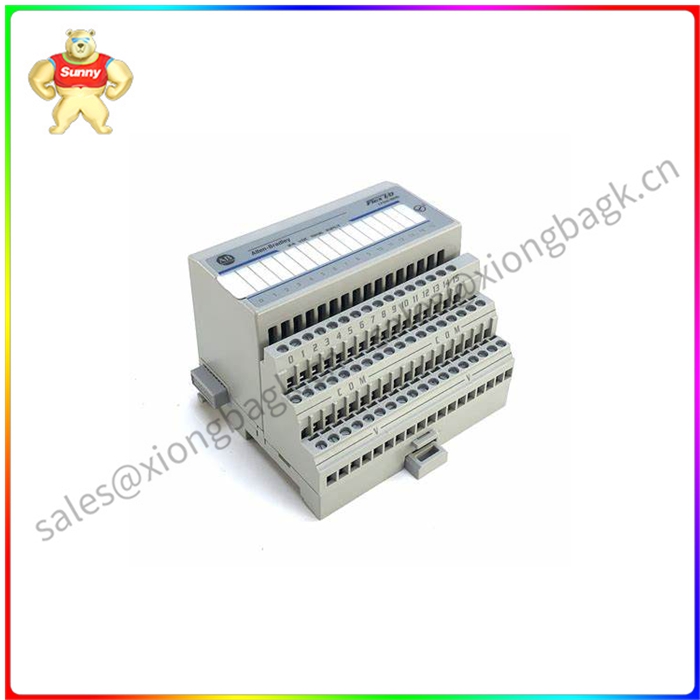

Allen-Bradley 1794-IB16 是一款十六 （16） 通道 24VDC 分立输入模块。该模块是 1794 Flex IO 产品系列的一部分，该系列主要用于实现分布式 IO 解决方案。在分布式 I/O 架构中，I/O 模块可以安装在信号源或驱动负载附近。这大大减少了电缆的铺设，从而降低了整体安装成本。它还简化了维护，并有助于全面增加控制系统的正常运行时间。

1794-IB16 支持标准 DIN 导轨安装或直接面板安装。该模块与信号线端接的端子底座一起使用。兼容的终端底座为 1794-TB3、1794-TB3S、1794-TB3K、1794-TB3SK、1794-TBKD、1794-TB37DS。此外，1794-IB16 需要使用通信适配器将 I/O 数据传输到合作伙伴扫描仪模块或控制器。兼容的通信适配器包括目录号为 1794-ADN 的 DeviceNet 通信适配器、目录号为 1794-ASB 的远程 I/O 通信适配器、目录号为 1794-AENT 的以太网通信适配器、目录号为 1794-APB 的 Profibus 通信适配器和目录号为 1794-ACN 的 ControlNet 通信适配器。

1794-IB16 的电流消耗为 30 mA @ 5V DC。各个输入通道的额定电压为 10 至 31.2 VDC，标称输入电压为 24VDC，支持灌电流接线配置。每个通道的zui小导通状态电压为 10VDC，zui大为 31.2VDC，而zui大关断状态电压为 20VDAC。它的功耗为 3.5 W @ 31.2V DC，热耗散为 11.9 BTU/hr @ 31.2V DC。

1794-IB16 模块具有 16 个吸电流输入，具有 24V DC 标称导通状态电压、10-31.2V DC 导通状态电压范围和 1.5mA zui小关断状态电流。它在 31.2V DC 时的zui大功耗为 6.1W。与此模块兼容的终端基础单元有 1794-TB3、1794-TB3S、1794-TB3K、1794-TB3SK、1794-TBKD、1794-TB37DS。

该模块支持DIN导轨或面板安装，并支持各种通信适配器，如ControlNet、DeviceNet、EtherNet/IP和通用远程I/O。1794-IB16 模块有 16 个黄色 LED 作为每个通道的状态指示灯。LED 指示相应的输入设备和输出信号。它还具有用于诊断和极 端环境的标准模块的 D 和 XT 版本，从而降低了面板和维护成本。它的工作温度为 0 - 55 °C （32 - 131 °F），相对湿度为 5 - 95% 非冷凝。

1794-IB16 是一款 Flex IO 分立式输入模块

The Allen-Bradley 1794-IB16 is a sixteen (16) channel 24VDC discrete input module. The module is part of the 1794 Flex IO product family, which is primarily used to implement distributed IO solutions. In distributed I/O architectures, I/O modules can be installed near the signal source or driver load. This greatly reduces the laying of cables, thus reducing the overall installation cost. It also simplifies maintenance and helps to increase the uptime of the control system overall.

The 1794-IB16 supports standard DIN rail mounting or direct panel mounting. The module is used with the terminal base to which the signal cable is terminated. Compatible terminal bases are 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, and 1794-TB37DS. In addition, the 1794-IB16 requires the use of a communication adapter to transfer I/O data to a partner scanner module or controller. Compatible communication adapters include DeviceNet communication adapter with directory number 1794-ADN, remote I/O communication adapter with directory number 1794-ASB, Ethernet communication adapter with directory number 1794-AENT, and Profibus with directory number 1794-APB Communication adapter and ControlNet communication adapter with directory number 1794-ACN.

The current consumption of 1794-IB16 is 30 mA @ 5V DC. The rated voltage of each input channel is from 10 to 31.2 VDC, and the nominal input voltage is 24VDC. The minimum on-state voltage for each channel is 10VDC, the maximum is 31.2VDC, and the maximum off state voltage is 20VDAC. It has a power consumption of 3.5W@31.2V DC and a thermal dissipation of 11.9BTU/hr@31.2V DC.

The 1794-IB16 module has 16 suction current inputs with a nominal on-state voltage of 24V DC, a range of 10-31.2V DC on-state voltage, and a minimum off state current of 1.5mA. It has a maximum power consumption of 6.1W at 31.2V DC. The terminal base units compatible with this module are 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, and 1794-TB37DS.

The module supports DIN rail or panel mounting and supports various communication adapters such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O. The 1794-IB16 module has 16 yellow leds as status indicators for each channel. The LED indicates the corresponding input device and output signal. It also has D and XT versions of standard modules for diagnostics and extreme environments, reducing panel and maintenance costs. It operates at A temperature of 0-55 °C (32-131 A °F) and a relative humidity of 5-95% non-condensing.
