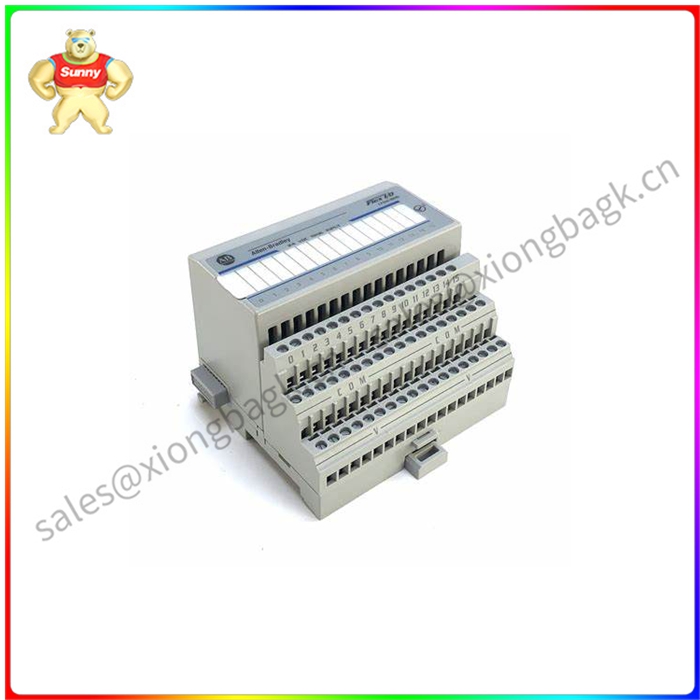

1794-IB32是Allen-Bradley模块，属于分布式I/O组件的Flex I/O产品家族。该模块是一个输入接口设备，允许现场仪器和电气设备，如按钮设备，限位开关，接近传感器，浮子开关，过程开关，继电器触点和接触器辅助触点集成到任何自动控制系统或过程中。

1794-IB32zui多可容纳32个直流输入器件。它是一个32通道电流下沉模块，每个通道的zui小通状态电压范围为192。zui大量程为31.2VDC，标称信号电平为24VDC。

1794-IB32能够安装Flex I/O通信适配器，如以太网、ControlNet、Remote I/O和其他适配器。只要满足Flex I/O安装需求，该模块支持的安装实例数量没有限制。

1794-IB32是一个高密度的输入通道。32个通道中的每一个都配有LED指示灯，用于监控每个通道的活动。这有助于更快地识别活动通道和验证正确工作的输入设备。当接收到信号时，这些LED指示灯简单地点亮，当信号不存在时关闭。

该模块连接到一个Flex I/O终端基座上。端子底座提供输入和电源端子以及DIN导轨安装槽。与此高密度输入模块兼容的端子底座有1794-TB32、1794-TB32S、1794-TB62DS和1794-TB62EXD4X15。端子座也允许模块在电源下拆卸和插入。

1794-IB32的标称导通电压为24v DC，导通电压范围zui小为19.2 v DC，zui大为31.2 v DC。zui大关断电压为5伏直流电，zui大关断电流为1.5毫安。1794-IB32的标称通状态电流为4.1毫安，24伏直流，其范围从zui小2毫安到zui大6毫安。该模块的FlexBus电流在5伏直流下为30毫安。虽然各个通道之间没有隔离，但1794-IB32在系统和场侧之间具有50伏的连续隔离电压。在直流31.2伏时zui大散热20.47 BTU/小时，在直流31.2伏时zui大功耗6瓦。模块工作温度为0 ~ 55℃，存储温度为-40 ~ 85℃。1794-IB32的相对湿度范围为5%至95%，无冷凝，工作频率为10至500赫兹，工作振动为5g，工作冲击为30g，非工作冲击为50g。
