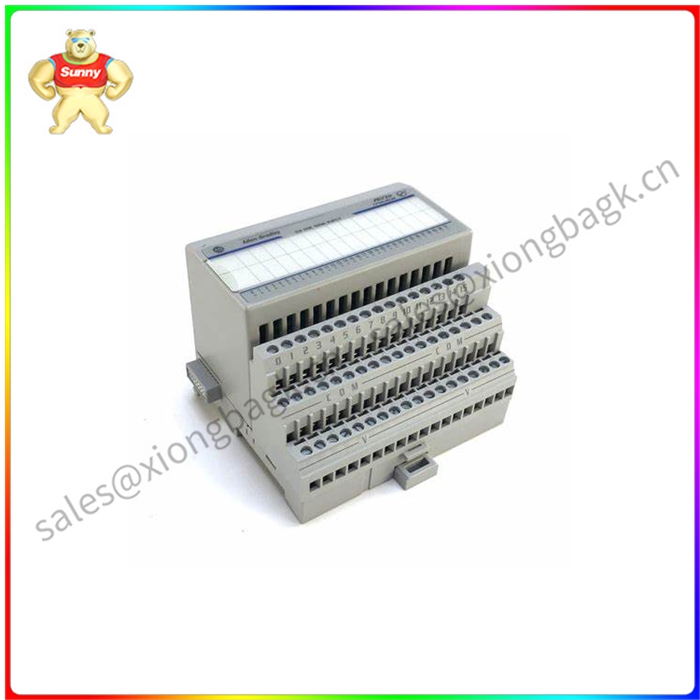

1794-IRT8模块是Allen-Bradley FLEX I/O毫伏、热电偶和RTD模块。在FLEX I/O系统中，1794-IRT8模块连接到终端基座和电源适配器。

艾伦-布拉德利1794-IRT8配备了2个冷端补偿器。这种冷端补偿器提高了热电偶模式模块的精度。1794-IRT8模块具有24伏直流标称额定电压和8个模拟输入。它可以连接到多达8个RTD或热电偶输入。1794-IRT8模块前面板上有标识模块的铭牌、用户可定制的可拆卸标签、按键开关位置指示灯和LED状态指示灯。

该模块兼容的RTD传感器是2线、3线和4线RTD，如100 ?Pt吗?= 0.00385欧元-200…870°C(-328…1598°F)Pt吗?= 0.00385欧元-200…400°C(-328…752°F)Pt吗?美国-200…630°C = 0.003916(-328…1166°F) 100 ?Pt吗?美国-200…400°C = 0.003916(-328…752°F) 100 ?镍-60…250°C(-76…482°F) 200 ?镍-60…200°C(-76…362)°F) 120 ?镍-80…320°C(-112…608°F) 10 ?铜-200…260°C(-328…470°F)。本模块支持的热电偶传感器有B型、E型、J型、K型、TXK/XK(L)型、N型、R型、S型和T型。

该模块具有14位的分辨率，具有可选的数据格式，例如°C(隐含小数点XXX.X)°F(隐含小数点XXX.X)°K(隐含小数点XXX.X) -32767…32767 0…65535 0…5000欧姆模式(隐含小数点XXX.X) -4000…+10000毫伏模式(隐含小数点XXX.XX)。

1794-IRT8具有嵌入式诊断功能，包括开路检测，其中模块读数在RTD和热电偶模式下上升或默认为zui大值。它还具有2次扫描的开路输入检测时间，在25°C下具有15V直流连续过压能力。

1794-IRT8 FLEX I/O毫伏 热电偶和RTD模块

The 1794-IRT8 module is an Allen-Bradley FLEX I/O millivolt, thermocouple, and RTD module. In the FLEX I/O system, the 1794-IRT8 module is connected to the terminal base and power adapter.

The Allen-Bradley 1794-IRT8 is equipped with 2 cold end compensators. The cold-end compensator improves the precision of the thermocouple mode module. The 1794-IRT8 module has a nominal rated voltage of 24 volts DC and 8 analog inputs. It can be connected to up to 8 RTD or thermocouple inputs. The front panel of the 1794-IRT8 module has a nameplate identifying the module, a user-customizable detachable label, a key switch position indicator and an LED status indicator.

The RTD sensors compatible with this module are 2-wire, 3-wire and 4-wire RTDS, such as 100? Pt? = 0.00385 euros -200... 870°C(-328… 1598°F)Pt? = 0.00385 euros -200... 400°C(-328… 752°F)Pt? United States -200... 630°C = 0.003916(-328... 1166°F) 100 ? Pt? United States -200... 400°C = 0.003916(-328... 752°F) 100 ? Nickel-60... 250°C(-76… 482°F) 200 ? Nickel-60... 200°C(-76… 362)°F) 120 ? Nickel-80... 320°C(-112… 608°F) 10 ? Copper -200... 260°C(-328… 470°F). The thermocouple sensors supported by this module are type B, E, J, K, TXK/XK(L), N, R, S and T.

The module has a 14-bit resolution with optional data formats such as °C(hidden decimal point XXX.X)°F(hidden decimal point XXX.X)°K(hidden decimal point XXX.X) -32767... 32767 0... 65535 0... 5000 ohm pattern (implied decimal point XXX.X) -4000... +10000 millivolt mode (implied decimal point XXX.XX).

The 1794-IRT8 features embedded diagnostics, including open circuit detection, where module readings rise or default to maximum values in RTD and thermocouple modes. It also has an open input detection time for 2 scans and a 15V DC continuous overvoltage capability at 25°C.
