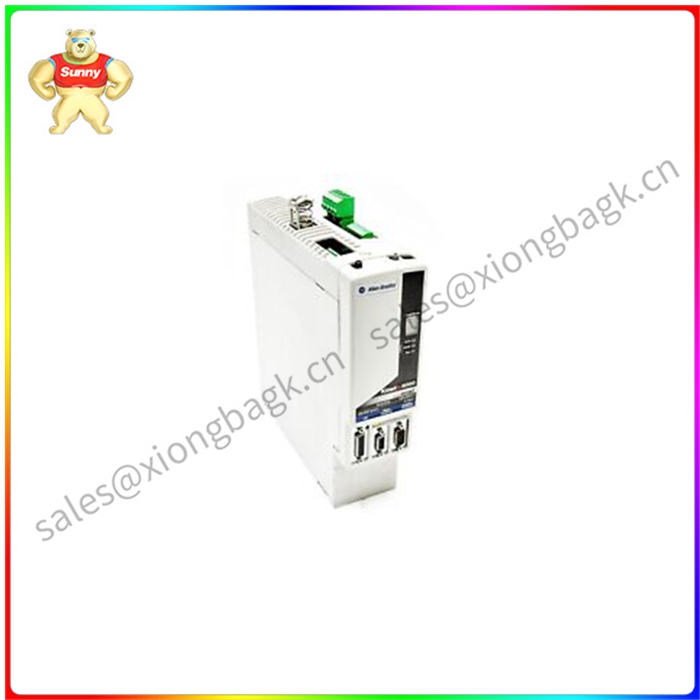

2094-BM03-M Kinetix 6000多轴伺服驱动系统组件
2094-BM03-M是Kinetix 6000多轴伺服驱动系统组件。该组件为轴模块，属于400VAC级轴模块，连续电流21.2 A，峰值电流53.0 A。
2904-BM03-M轴模块通过反馈电缆为旋转和直线电机等运动控制设备提供接口。该轴模块还提供了控制模块的安装位置，其中来自系统的控制信号与设备的精 确控制相关。该轴模块与集成轴模块、轴模块、分流模块和槽位填充模块一起安装在电源导轨上。根据系统的控制要求，组成功能Kinetix Drive系统的模块可能会有所不同。
2904-BM03-M兼容Kinetix MPL电机，如MPL- b540k, MPL- b560f, MPL- b580f, MPL- b640f, MPL- b680d, Kinetix MPM电机包括MPM- b1153t, MPM- b1302t, MPM- b1304m, MPM- b1651f, MPM- b1651m, MPM- b1652e, MPM- b1653c, MPM- b1653e, MPM- b2152c, MPM- b2153b, Kinetix如MPF电机MPF- b540k和Kinetix MPS电机目录号MPS- b560f。
可与LDC-C100600-DHT、LDC-C150400-DHT、LDC-C150600-DHT等直线电机配套使用。
该2094-BM03-M具有逆变器连续输出额定13.5千瓦和30a。它也有一个内部分流和内部分流电阻安装。它的效率为98%，电容能量吸附为840f。
2094-BM03-M在20%负载时的连续功耗为94瓦，在40%负载时为130瓦，在60%负载时为169瓦，在80%负载时为211瓦，在100%负载时为255瓦。
2094-BM03-M驱动器旨在为电机或驱动器应用提供集成运动能力。驱动器可以很容易地从安全转矩关闭切换到安全速度监视器，并从SERCOS接口切换到以太网/IP网络。它与Kinetix 6000伺服驱动器兼容，可以在需要时轻松迁移。其嵌入式安全功能消除了额外的面板空间或外部安全监视器接线的需要。安全速度监视器功能允许在不完全停止机器的情况下进行维护工作。
该2094-BM03-M驱动器的模块化设计和嵌入式安全功能提供易于维护和更大的灵活性。它还简化了布线，减少了库存，并且可以使用先进的技术进行修改。它具有安全速度特性，减少了能源和生产浪费，提高了运行效率。其内置的先进安全功能也有助于保护人员。其他安全功能包括安全zui大速度，安全zui大加速度监控，安全方向监控，零速度监控，使能开关控制和门监控和控制。2094-BM03-M具有增强的诊断功能，可以通过显示错误消息来指示故障。
2094-BM03-M Kinetix 6000多轴伺服驱动系统组件
The 2094-BM03-M is a Kinetix 6000 Multi axis servo drive system component. This component is an axis module that belongs to the 400VAC class axis module with continuous current of 21.2 A and peak current of 53.0 A.
The 2904-BM03-M axis module provides interface to motion control devices such as rotary and liner motors via feedback cables. This axis module also provides the installation are of the Control module where in control signals from the system, related for accurate control of devices are integrated. This axis module is mounted onto a Power Rail, along with the Integrated Axis Module, Axis Modules, Shunt modules and slot filler modules. Depending on the control requirement of the system, the modules that compose a functional Kinetix Drive system may vary.
The 2904-BM03-M is compatible with Kinetix MPL motors such as MPL-B540K, MPL-B560F, MPL-B580F, MPL-B640F, MPL-B680D, Kinetix MPM motors including MPM-B1153T, MPM-B1302T, MPM-B1304M, MPM-B1304M, MPM-B1651F, MPM-B1651M, MPM-B1652E, MPM-B1653C, MPM-B1653E, MPM-B2152C, MPM-B2153B, Kinetix such as MPF motors MPF-B540K and Kinetix MPS motor with catalog number MPS-B560F.
It is also compatible with Linear Motors such as LDC-C100600-DHT, LDC-C150400-DHT, and LDC-C150600-DHT.
The 2094-BM03-M has Inverter continuous output rating of 13.5 kW and 30 A. It also has an internal shunt and internal shunt resistor installed. It has an efficiency rating of 98% and capacitive energy adsorption of 840 ?F.
The 2094-BM03-M has a continuous Power Dissipation of 94 Watts at 20% loading, 130 Watts at 40% loading, 169 Watts at 60% loading, 211 Watts at 80% loading and 255 Watts at 100% loading.
The 2094-BM03-M drive is designed to provide Integrated Motion capability for motor or drive applications. The drive can easily transition from Safe Torque Off to Safe Speed Monitor and from SERCOS interface to EtherNet/IP networks. It is compatible with the Kinetix 6000 servo drive which allows easy migration when needed. Its embedded safety feature removes the need for additional panel space or wiring from an external safety monitor. The Safe Speed Monitor functionality allows maintenance work without completely stopping the machine.
The 2094-BM03-M drive’ss modular design and embedded safety features provide easy maintenance and greater flexibility. It also simplifies wiring, reduces inventory, and can be modified with advanced technology. It reduces energy and production waste and improves operating efficiency with its Safe Speed feature. Its embedded advanced safety features also help protect personnel. Other safety features include Safe Maximum Speed, Safe Maximum Acceleration Monitoring, Safe Direction Monitoring, Zero Speed Monitoring, Enabling Switch Control, and Door Monitoring and Control. The 2094-BM03-M has enhanced diagnostic features which indicate a fault by displaying error messages.
