2711R-T7T 是一款 PanelView 800 图形终端

2711R-T7T 是一款 PanelView 800 图形终端

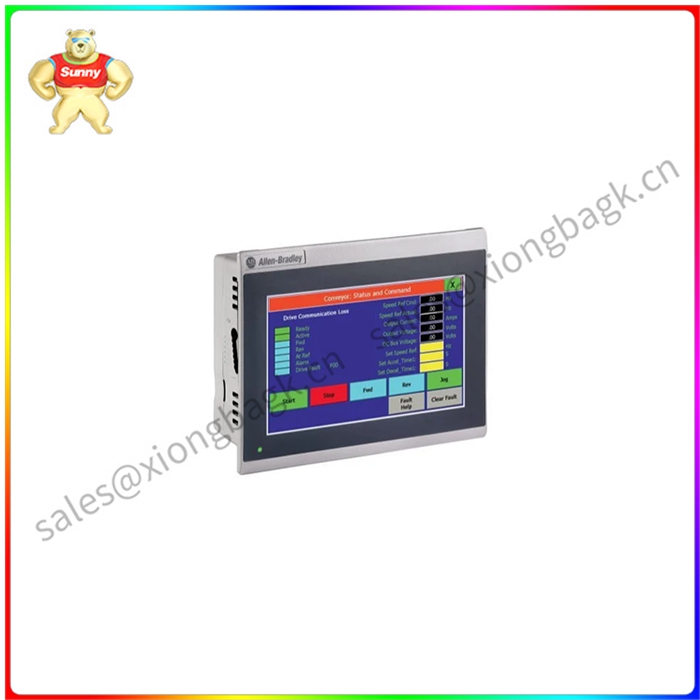

2711R-T7T 是 Allen-Bradley 的图形操作终端。它是可视化硬件 PanelView 800 的一部分，特别兼容 Allen-Bradley MicroLogix、CompactLogix、SLC 500、PLC5 和 Micro 800 控制器。该操作终端支持多种通信协议，如串行、DF1、DH485、MODBUS、MODBUS ASCII、MODBUS Unicode、Allen-Bradley CIP 和以太网 I/P。

2711R-T7T 具有 7 英寸彩色显示屏，支持宽屏格式的垂直或水平方向。它的分辨率为 800 x 480，有效可视区域为 153.6 x 86.6 毫米（6.05 x 3.41 英寸）。它具有模拟电阻式触摸屏界面，设计工作寿命高达 100 万次驱动。

它配备了一个集成存储器，相当于 256 MB 闪存和 256 MB DDR RAM。它支持安装外部存储，如工业级micro-SD卡，并特别兼容SDSC和Class 6和Class 10 SDHC micro-SD卡，FAT32 / 16格式，zui大大小为32 GB。

它具有多种接口，如以太网、RS232 / RS422 / RS485 通信端口以及用于插入鼠标和键盘等外部输入设备的 USB 外围端口。

它支持为批处理应用程序实现配方，其中zui多可以存储 50 个配方。

彩色透射式 TFT 矩阵 LCD 触摸屏尺寸为 7 英寸，具有 65K 色彩，WVGA 分辨率为 800 x 480。它采用宽屏格式，显示区域为 6.05 x 3.41 英寸。它还具有 LED 背光，显示器在 40,000 摄氏度下的zui短寿命为 5 小时或 25 年。该终端配备 256 MB 内部存储和 256 MB DDR RAM，处理器具有 800 MHz CPU 速度。2711R-T7T 具有电阻式触摸输入类型，并配有用于额外存储的 microSD 插槽。如果用户计划使用 microSD 卡，请确保使用工业级卡。它与高达 10 GB 的 32 类 SDHC microSD 卡兼容。终端的 USB 2.0 和以太网 （10/100 Mbps） 端口允许用户连接到不同的网络。该端子还具有单独的 RS-232 和 RS-422/RS-485 连接器以及一个带电池的实时时钟。2711R-T7T 尺寸为 5.67 x 7.75 x 2.13 英寸，重 0.651 千克或 1.44 磅。

2711R-T7T 终端经过优化，可与 MicroLogix、Micro800 和 CompactLogix 5370（CompactLogix 5370-L37 除外）控制器兼容。该终端显示带有嵌入式变量的警报消息，它还具有上传和下载数据或参数设置的功能，并具有配方功能。此终端存在 50 个配方文件。2711R-T7T 的标称输入电压为 24 伏直流电，而其输入电压范围为 18 至 32 伏直流电。它还具有 11 伏直流电时的zui大功耗为 0.40 瓦或 24 安培，散热为 34 BTU/小时。请注意，它要求环境的环境温度在 0 到 50 摄氏度的范围内。终端的工作温度范围为 0 至 50 摄氏度，非工作温度范围为 -25 至 75 摄氏度。它还具有 2 至 10 赫兹时的 500 G 工作振动、15 G 的工作冲击和 30 G 的非工作冲击。其非冷凝相对湿度为5%至95%。

2711R-T7T 是一款 PanelView 800 图形终端

The 2711R-T7T is Allen-Bradley's graphic operation terminal. It is part of the PanelView 800 visualization hardware and is specifically compatible with Allen-Bradley MicroLogix, CompactLogix, SLC 500, PLC5, and Micro 800 controllers. The operating terminal supports multiple communication protocols such as serial, DF1, DH485, MODBUS, MODBUS ASCII, MODBUS Unicode, Allen-Bradley CIP, and Ethernet I/P.

The 2711R-T7T features a 7-inch color display that supports vertical or horizontal orientation in widescreen format. It has a resolution of 800 x 480 and an effective viewing area of 153.6 x 86.6 mm (6.05 x 3.41 inches). It has an analog resistive touch screen interface and is designed to work for up to 1 million drives.

It comes with an integrated memory equivalent of 256 MB flash memory and 256 MB DDR RAM. It supports the installation of external storage such as industrial-grade micro-SD cards and is particularly compatible with SDSC and Class 6 and Class 10 SDHC micro-SD cards in FAT32/16 format with a maximum size of 32 GB.

It has a variety of interfaces such as Ethernet, RS232 / RS422 / RS485 communication ports, and USB peripheral ports for plugging in external input devices such as mice and keyboards.

It supports the implementation of recipes for batch applications where up to 50 recipes can be stored.

The color transmissed-TFT Matrix LCD touch screen is 7 inches in size with 65K color and 800 x 480 WVGA resolution. It is in widescreen format with a display area of 6.05 x 3.41 inches. It also has an LED backlight and the display has a minimum life of 5 hours or 25 years at 40,000 degrees Celsius. The terminal comes with 256 MB of internal storage and 256 MB of DDR RAM, and the processor has an 800 MHz CPU speed. The 2711R-T7T has a resistive touch input type and comes with a microSD slot for additional storage. If the user plans to use a microSD card, make sure to use an industrial-grade card. It is compatible with Class 32 SDHC microSD cards up to 10 GB. The terminal's USB 2.0 and Ethernet (10/100 Mbps) ports allow users to connect to different networks. The terminal also has separate RS-232 and RS-422/RS-485 connectors and a real-time clock with battery. The 2711R-T7T measures 5.67 x 7.75 x 2.13 inches and weighs 0.651 kg or 1.44 pounds.

The 2711R-T7T terminal is optimized for compatibility with MicroLogix, Micro800, and CompactLogix 5370 (except CompactLogix 5370-L37) controllers. The terminal displays alert messages with embedded variables, it also has the ability to upload and download data or parameter Settings, and has a recipe function. There are 50 recipe files in this terminal. The 2711R-T7T has a nominal input voltage of 24 volts DC, while its input voltage ranges from 18 to 32 volts DC. It also has a maximum power consumption of 0.40 watts or 24 amps at 11 volts DC and a heat dissipation of 34 BTU/ hour. Please note that it requires the ambient temperature of the environment to be in the range of 0 to 50 degrees Celsius. The terminal has an operating temperature range of 0 to 50 degrees Celsius and a non-operating temperature range of -25 to 75 degrees Celsius. It also has 500 G operating vibration at 2 to 10 Hz, 15 G operating shock and 30 G non-operating shock. Its non-condensing relative humidity ranges from 5% to 95%.
