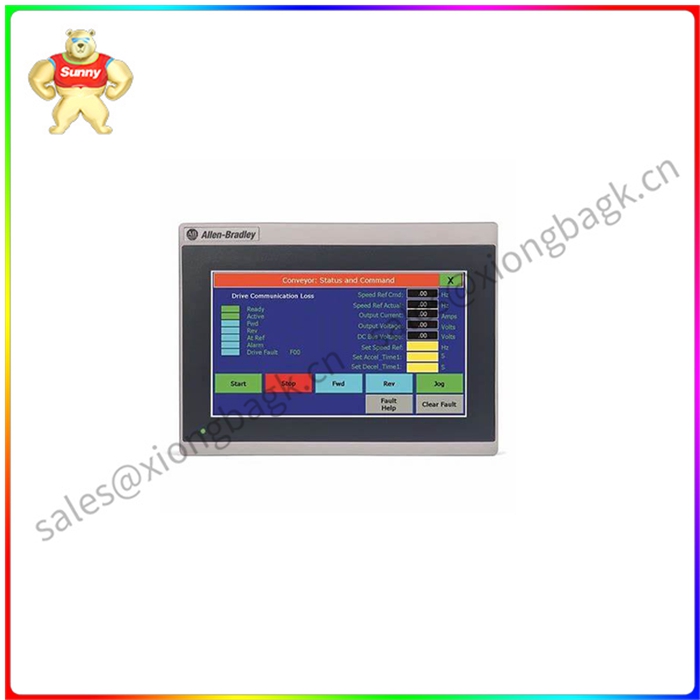

Allen-Bradley 2711R-T10T 是一款 PanelView 800 图形操作终端。该操作终端配备了符合当今工业应用要求的现代规格。该操作终端支持横向和纵向，提供安装灵活性和优化的工艺流程设计。

2711R-T10T 具有中央处理器 （CPU），处理速度为 800 MHz。它还具有显着改进的内存区域，具有专用的 256 MB 内部存储和 256 MB DDR RAM。

2711R-T10T 配备 10 英寸 TFT 触摸屏、宽屏 LCD 显示屏，分辨率为 800 x 600 SVGA，支持 65K 色彩。它有一个 LED 背光，使用寿命为 40,000 小时。该操作终端配有 micro-SD 卡。推荐的SD卡是工业级SD卡，SDSC和Class 6和Class 10 0 SDHC micro-SD卡。支持的卡格式为 FAT32 / FAT16 格式，支持高达 32 GB 的存储大小。此外，提供的 USB 端口支持安装用于可移动存储的外部闪存驱动器。

2711R-T10T 配备一 （1） 个 RS-422 和 RS-485 端口、一 （1） 个 RS-232 端口和一 （1） 个以太网通信端口。串行接口支持 DF1、DH485、MODBUS、MODBUS ASCII、MODBUS 主动和 Allen-Bradley 通用工业协议 （CIP） 等系统协议，而提供的以太网端口也支持 CompactLogix、MicroLogix、MicroLogix ENI、SLC 500、MODBUS TCP/IP 和 Allen-Bradley CIP。

该操作终端由电源供电，电压范围为 18-32VDC，zui大功耗为 14 W （0.48 A @ 24V DC）。

2711R-T10T 具有模拟电阻式表面触摸和 LED 背光，待机时间长达 40,000 小时。它有一个电池备份的实时时钟，在低于 5 °F 的温度下使用时，电池寿命为 77 年。 它还具有 256 MB 的工厂内置内存，用于存储用户设置和应用程序参数。2711R-T10T 还配备了一个 256MB 同步 DRAM，用于处理器速度为 800MHz 的应用进程，并且与 MicroLogix 和 Micro 800 控制器兼容。它还支持用于连接外部外围设备的 USB 2.0 主机端口和用于高达 32 GB 的外部存储器的 micro SD 卡插槽。2711R-T10T 的尺寸为 8.9 x 11.3 x 2.2 英寸，重约 10 磅。它以 T4 温度代码指定，工作温度为 0-50 °C （32-122 °F），具有 NEMA/UL 4X、12、13 和 IP65 外壳类型等级和前挡板保护功能。此 PanelView 使用 24 VDC 电源供电。zui常见的系列是A系列。PanelView 800 产品线包含一组面板安装显示单元，这些单元具有用于用户输入法的键盘或触摸屏产品。这些 HMI 终端提供 4 英寸、7 英寸和 10 英寸显示屏尺寸。
