2711-T10G8L1 Panelview 1000 终端系列中的直流供电操作终端

2711-T10G8L1 Panelview 1000 终端系列中的直流供电操作终端

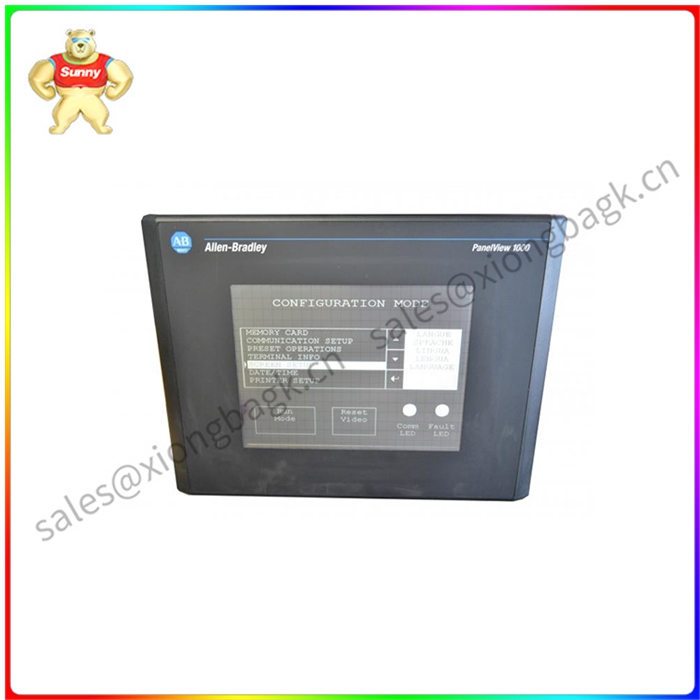

2711-T10G8L1终端由 Allen-Bradley 制造，是 PanelView 1000 控制终端。2711-T10G8L1端子被归类为灰度端子，用于支持 4 种颜色的固定图形调色板。

2711-T10G8L1 终端采用触摸屏输入类型，输入额定功率为 24 伏直流电。该装置的显示屏尺寸为 10.1 英寸，被 Allen-Bradley/Rockwell Automation 归类为 PanelView1000 系列。对于通信，2711-T10G8L1终端配备了 DH Plus （DH+） HMI 端口，打印机通过 RS-232 通信端口连接。

2711-T10G8L1端子包含多达 384 个触控单元，额定驱动次数约为 100 万次。终端的运输尺寸为 282 x 370 x 112 毫米。对于文件存储，2711-T10G8L1终端的随机存取存储器容量为 310 KB，而非易失性存储器容量为 1008 KB。随机存取存储器用于存储文件、设备的应用程序和其他等效用途。通过使用直流电源，2711-T10G8L1端子即使在电源中断的情况下也能使用电池作为电源。

2711-T10G8L1 Panelview 1000 终端系列中的直流供电操作终端

The 2711-T10G8L1 terminal, manufactured by Allen-Bradley, is a PanelView 1000 control terminal. The 2711-T10G8L1 terminals are classified as grayscale terminals and are used to support a fixed graphics palette of 4 colors.

The 2711-T10G8L1 terminal uses the touch screen input type and the input power rating is 24 volts DC. The device has a 10.1-inch display and is classified by Allen-Bradley/Rockwell Automation as the PanelView1000 series. For communication, the 2711-T10G8L1 terminal is equipped with a DH Plus (DH+) HMI port, and the printer is connected via an RS-232 communication port.

The 2711-T10G8L1 terminal contains up to 384 touch units and is rated for approximately 1 million drives. The transport dimensions of the terminal are 282 x 370 x 112 mm. For file storage, the 2711-T10G8L1 terminal has a random access memory capacity of 310 KB and a non-volatile memory capacity of 1008 KB. Random access memory is used to store files, device applications, and other equivalent uses. By using a DC power supply, the 2711-T10G8L1 terminal can use the battery as a power supply even in the event of a power interruption.
