2713P-T12WD1 彩色显示屏和模拟电阻式触摸屏

2713P-T12WD1 彩色显示屏和模拟电阻式触摸屏

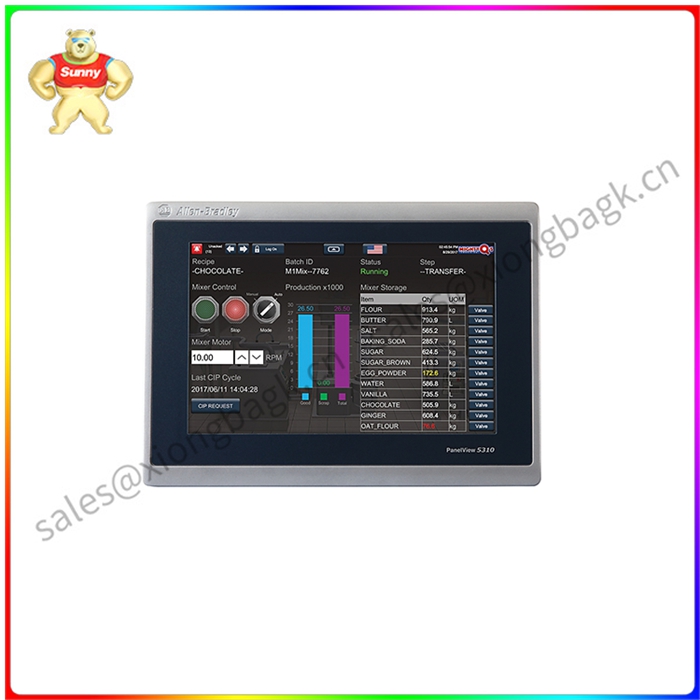

Allen-Bradley 2713P-T12WD1 是一款 PanelView 5310，配备 12.1 英寸宽屏显示屏，具有模拟电阻式触摸输入，额定值为 100 万次。它配备了一个薄膜晶体管液晶显示器，具有 24 位颜色或 1670 万色图形。它的WXGA显示分辨率为1280 x 800像素，可视区域为10.3 x 6.4英寸，纵横比为16：10。该显示器还具有不可更换的背光，在 50,000 时zui短寿命为 40 小时oC 和半亮度，以及 5 W 的典型功耗。

2713P-T12WD1 的非冷凝相对湿度为 5-95%，工作温度范围为 0-50oC 和非工作温度范围为 -25-70oC.此端子的输入电压为18-30V DC，标称输入电压为24V DC。在 24V DC 时，其zui大功耗为 16 W 或 0.67 A，而 2713P-T12WD1 端子的典型功耗为 12 W。典型浪涌电流为 15 A，功耗为 41 BTU/小时。

该终端带有红色/绿色状态指示灯和 1 GB RAM 和 500 MB 非易失性用户存储器。您可以使用安装在终端 SD 卡插槽中的 1784-SDx 存储卡进一步扩展此终端的内存。2713P-T12WD1 终端上可用的其他端口是 1 个 10/100 以太网端口和 2 个高速 USB 2.0 端口，特别是 A 型主机端口和 B 型设备端口。2713P-T12WD1 重 8 磅。

2713P-T12WD1 彩色显示屏和模拟电阻式触摸屏

The Allen-Bradley 2713P-T12WD1 is a PanelView 5310 with a 12.1-inch widescreen display with analog resistive touch input and a rating of 1 million. It is equipped with a thin film transistor LCD display with 24-bit color or 16.7 million color graphics. It has a WXGA display resolution of 1280 x 800 pixels, a viewing area of 10.3 x 6.4 inches, and an aspect ratio of 16:10. The display also features a non-replaceable backlight, a minimum life of 40 hours oC and half brightness at 50,000, and a typical power consumption of 5 W.

The 2713P-T12WD1 has a non-condensing relative humidity of 5-95%, an operating temperature range of 0-50oC and a non-operating temperature range of -25-70oC. The input voltage of this terminal is 18-30V DC, and the nominal input voltage is 24V DC. At 24V DC, its maximum power consumption is 16 W or 0.67 A, while the typical power consumption of the 2713P-T12WD1 terminal is 12W. The typical surge current is 15 A and the power consumption is 41 BTU/ hour.

The terminal comes with a red/green status indicator and 1 GB RAM and 500 MB of non-volatile user memory. You can further expand the memory of this terminal with the 1784-SDx memory card installed in the SD card slot of the terminal. The other ports available on the 2713P-T12WD1 terminal are 1 10/100 Ethernet port and 2 high-speed USB 2.0 ports, specifically Type A host port and Type B device port. The 2713P-T12WD1 weighs 8 pounds.
