5069-L310ERS2 控制器支持具有多达 24 个 Ethernet/IP 网络

5069-L310ERS2 控制器支持具有多达 24 个  Ethernet/IP 网络

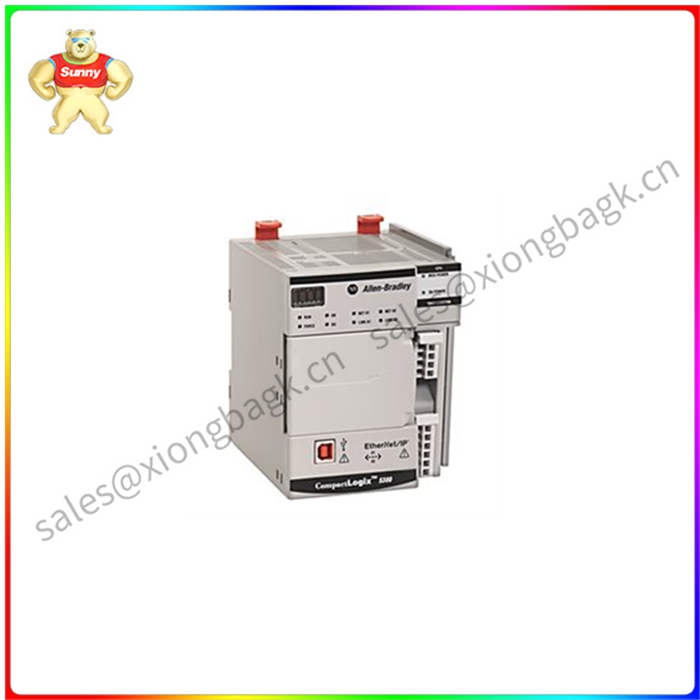

5069-L310ERS2 是一款具有集成安全功能的可编程自动化控制器 （PAC）。具体来说，该控制器是安全完整性等级 （SIL） 2 级的 Compact GuardLogix 5380 控制器。该控制器用于满足上述 SIL 等级且无容错的应用。

5069-L310ERS2仍然是DIN导轨安装设备。Allen-Bradley 建议使用镀锌、铬酸盐钢 DIN 导轨或尺寸为 35 x 7.5 毫米（1.38 x 0.30 英寸）的 EN50022 DIN 导轨。避免使用由塑料或导电性差的材料制成的DIN导轨。此外，不得使用极易腐蚀和氧化的DIN导轨。DIN导轨提供接地连接，连接必须由此附件保持。

5069-L310ERS2 仅支持水平安装。由于该控制器带有开放式外壳，因此必须安装在外壳内，以提供足够的保护，防止灰尘、污垢、油脂、腐蚀性气体等工业污染物。面板内的温度必须保持在 0°C - 60°C 或 32°F - 140 °F 之间）。由于该设备安装在 DIN 导轨上，因此振动和冲击必须限制在 5 g @ 10...分别为 500 Hz 和 30 g。

5069-L310ERS2 配备 1 MB 标准用户内存、0.5 MB 安全内存以及控制器随附的 1784-SD2 安全数字 （SD） 卡提供的嵌入式 2 GB 内存。它具有双以太网 I/P 端口，用于连接或实现线性、星形和设备级环 （DLR） 拓扑。它还具有一 （1） 个 USB 端口，总共支持 32 个任务，其中 31 个可以分配为标准任务，1 个可以分配为安全任务。

该控制器能够同时处理多达 32 个任务，并且每个任务中zui多可以处理 1000 个程序。该控制器配备 1 MB 用户内存和 0.5 MB 安全内存。5069-L310ERS2 控制器一次zui多可以连接到 24 个 Ethernet/IP 网络节点。它还可以同时托管 8 个本地 I/O 模块，这些本地 I/O 模块是兼容的 Allen-Bradley I/O 模块，它们连接到控制器的右侧。

5069-L310ERS2 控制器支持具有多达 24 个  Ethernet/IP 网络

The 5069-L310ERS2 is a programmable automation controller (PAC) with integrated safety features. Specifically, the controller is a Compact GuardLogix 5380 controller with Safety Integrity Level (SIL) 2. The controller is used in applications that meet the above SIL levels and are not fault-tolerant.

The 5069-L310ERS2 is still a DIN rail mounting device. Allen-Bradley recommends either galvanized, chromate steel DIN guides or EN50022 DIN guides measuring 35 x 7.5 mm (1.38 x 0.30 in). Avoid DIN guides made of plastic or materials with poor electrical conductivity. In addition, DIN guides, which are prone to corrosion and oxidation, should not be used. DIN rails provide a ground connection, which must be maintained with this attachment.

The 5069-L310ERS2 supports horizontal installation only. Because the controller has an open housing, it must be installed in the housing to provide adequate protection against industrial contaminants such as dust, dirt, grease, corrosive gases, etc. The temperature inside the panel must be maintained between 0°C - 60°C or 32°F - 140 °F). Since the equipment is mounted on DIN rails, vibration and shock must be limited to 5 g @ 10... 500 Hz and 30 g respectively.

The 5069-L310ERS2 comes with 1 MB of standard user memory, 0.5 MB of secure memory, and an embedded 2 GB of memory provided by the 1784-SD2 Secure digital (SD) card that comes with the controller. It features dual Ethernet I/P ports for connecting or implementing linear, star, and device-level loop (DLR) topologies. It also has one (1) USB port that supports a total of 32 tasks, of which 31 can be assigned as standard tasks and 1 can be assigned as security tasks.

The controller is capable of processing up to 32 tasks simultaneously and can process up to 1000 programs in each task. The controller comes with 1 MB of user memory and 0.5 MB of safe memory. The 5069-L310ERS2 controller can connect to up to 24 Ethernet/IP network nodes at a time. It can also host up to eight local I/O modules simultaneously, which are compatible Allen-Bradley I/O modules that are connected to the right side of the controller.

5069-L310ERS2 控制器支持具有多达 24 个  Ethernet/IP 网络
