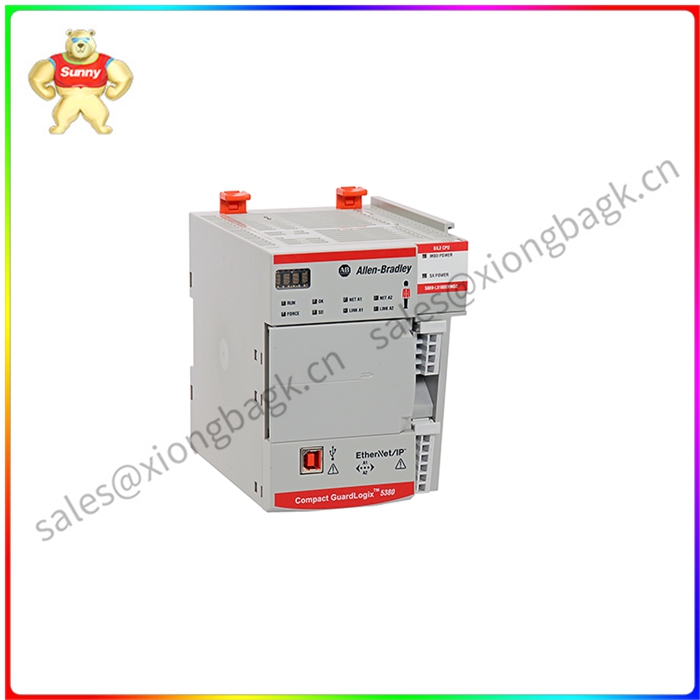

目录号5069-L320ERS2的可编程自动化控制器(PAC)是Allen-Bradley的紧凑型GuardLogix控制器。它是PAC设备的现代增强版本的一部分，是CompactLogix 5380产品系列的一部分。该控制器系列专为满足现代安全，控制，连接和集成要求而设计。它是SIL 2级，具有1002结构。

通过内置的两(2)以太网接口，该控制器能够与现有或新安装的实现线性，星形和环形拓扑的以太网网络进行通信。这些端口可以工作在双IP节点(每个端口分配唯 一的IP地址)和线性/ DLR模式(两个端口共享相同的IP地址)，作为一个集成交换机。这些端口支持10 / 100 / 1000mbps的传输速度。此外，控制器提供1个USB端口，可以执行除工业连接外的所有类型的通信和功能。此USB端口支持高达12mbps的通信速度。

5069-L320ERS2是一款紧凑型GuardLogix控制器，具有2mb用户内存，专用于标准功能，1mb安全内存用于安全功能。它还支持多达32个任务，其中31个任务用于标准功能，其余1个任务专门用于安全任务。无论任务类型如何，每个任务都可以处理多达1000个程序并利用控制器可用的所有事件触发器。

该控制器是DIN导轨安装设备，由18-32VDC的外部电源供电，电流为475 mA。功耗9.0 W，散热30.9 BTU/hr。

这个紧凑的GuardLogix控制器zui多接受16个本地I/O模块。控制器支持双ip和线性/DLR模式，并使用Compact 5000 I/O模块作为本地或远程I/O模块。控制器可以同时接受多达40个节点和32个套接字接口。该单元还支持31个标准控制器任务和1个安全任务。除此之外，该控制器还具有2兆字节的用户内存容量和1兆字节的安全内存。它可以在几乎所有的非危险工业环境中使用。5069-L320ERS2控制器的MOD电源电压范围为18至32伏DC (SELV/PELV)，zui大MOD电源额定电流为475毫安。MOD的功率冲击电流额定值为1200毫安，持续时间为125毫秒。根据绝缘类型的不同，控制器具有50伏或300伏的连续隔离电压。5069-L320ERS2控制器的额定散热值为30.9 BTU / h，额定功耗为9w。此外，控制器有一个USB 2.0 (B型)编程端口，用于临时连接，配置和更新。5069-L320ERS2控制器使用安全数字(SD)卡进行存储，并安装在DIN导轨上。该控制器的包装包括一个2g的SD卡。该装置的尺寸包括高143.97毫米(5.67英寸)，宽98.10毫米(3.86英寸)，深136.81毫米(5.39英寸)。控制器的重量约为0.76千克(1.69磅)。

5069-L320ERS2 内置的两(2)以太网接口

The Programmable Automation Controller (PAC) with catalog number 5069-L320ERS2 is a Compact GuardLogix controller from Allen-Bradley.  It is part of the modern and enhanced version of PAC devices, being part of the CompactLogix 5380 product family.  This controller series is specifically designed to meet the modern safety, control, connectivity and integration requirements of the industry.  It is SIL 2 rated with 1oo2 architecture.

With the built-in Two (2) Ethernet interfaces, this controller is able to communicate with existing or newly installed Ethernet networks that implement Linear, Star and Ring topologies.  These ports may function in Dual IP node wherein each port is assigned with unique IP address and Linear / DLR mode where both ports share the same IP address, acting as an integrated switch.  These ports support transmission speed of 10 / 100 / 1000 Mbps transfer speed.  In addition, the controller is provided with One (1) USB port which can perform all type of communication and function except industrial connectivity.  This USB port supports up to 12 Mbps communication speed.

The 5069-L320ERS2 is a Compact GuardLogix controller has 2 MB user memory, dedicated for standard function and 1 MB safety memory for safety functionality.  It also supports up to 32 Tasks wherein 31 tasks are for standard functions and the remining 1 task is exclusively assigned for safety task.  Regardless of the type of task, each task can handle up to 1000 programs and utilize all event triggers made available to the controller.

This controller is DIN rail mounted device and powered by an external supply voltage of 18-32VDC with current of 475 mA.  It has a power dissipation of 9.0 W and thermal dissipation of 30.9 BTU/hr.

This Compact GuardLogix controller accepts a maximum of 16 local I/O modules.  The controller supports the dual-IP and linear/DLR modes along with the use of the Compact 5000 I/O modules as local or remote I/O modules.  The controller can accept up to 40 nodes and 32 socket interfaces at a time.  The unit also supports 31 standard controller tasks and 1 safety task.  In addition to that, the controller has a user memory capacity of 2 megabytes and it also has 1 megabyte of safety memory.  It can be used in nearly all non-hazardous industrial environments.  The 5069-L320ERS2 controller has a MOD power voltage range of 18 to 32 Volts DC (SELV/PELV) and a maximum MOD power current rating of 475 milliamps.  The MOD power inrush current rating is 1200 milliamps for a duration of 125 milliseconds.  The controller has a continuous isolation voltage of 50 or 300 Volts, depending on the insulation type.  The thermal dissipation rating of the 5069-L320ERS2 controller is 30.9 BTU per hour and the power dissipation rating of the controller is 9 Watts of power.  Additionally, the controller has a USB 2.0 (Type B) programming port that is used for temporary connections, configurations, and updates.  The 5069-L320ERS2 controller uses a Secure Digital (SD) card for storage and it mounts on a DIN rail.  The controller's package includes a 2-gigabyte SD card.  The size of the unit includes a height of 143.97 millimeters (5.67 inches), a width of 98.10 millimeters (3.86 inches), and a depth of 136.81 millimeters (5.39 inches).  The approximate weight of the controller is 0.76 kilograms or 1.69 pounds.
