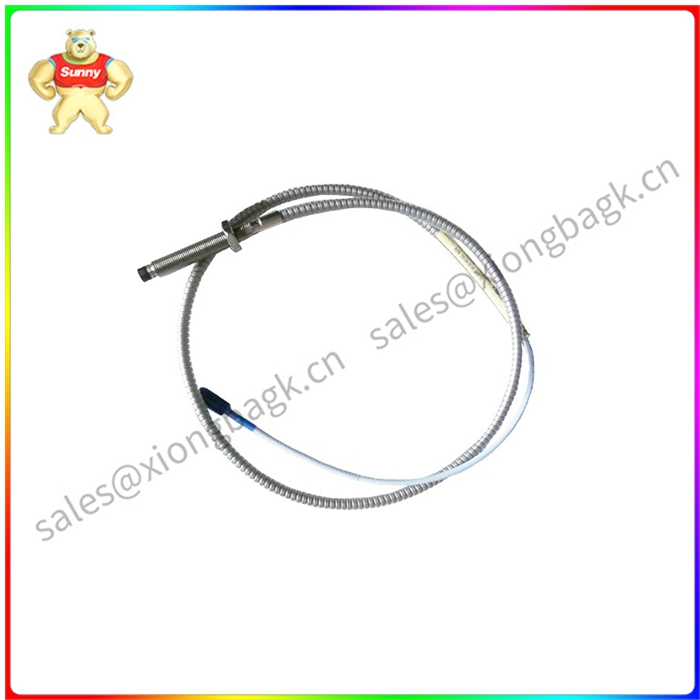

330104-00-13-10-02-05 3300 XL 8 mm接近传感器

330104-00-13-10-02-05 3300 XL 8 mm接近传感器

3300 XL 8 mm接近传感器系统包括:3300 XL8室米探头3300XL延长线
3300XL前置传感器1
该系统提供的输出电压与探针尖 端和观察到的导电表面之间的距离成正比.它能够进行静态(位置)和动态(振动)测量，主要用于振动测量流体膜轴承机器上的位詈测量应用，以及键相器和速度测量应用2。
3300 XL 8 mm系统代表了我们在涡流接近传感器系统中zui先进的性能。标准的3300XL8 mm5米系统也完全符合美国石油协会(API)670标准(第4版)用于机械配置、线性范围、精度和温度稳定性。
所有3300 XL8 mm接近传感器系统都达到了这一性能水平，同时允许探头、延长电统，和Proximitor传感器，而不需要单独的部件匹配或工作台校准。
3300 XL 8 mm传感器系统的每个组件都向后兼容，并可与其他非XL3300互换5和8毫米系列传感器系统组件4。这包括33005毫米探头，用于8室米
探针对于可用的安装空间来说太大了5，6。

330104-00-13-10-02-05 3300 XL 8 mm接近传感器

3300XL 8 mm proximity sensor system includes :3300 XL8 chamber meter probe 3300XL extension cord
3300XL Front Sensor 1
The output voltage provided by this system is proportional to the distance between the tip of the probe and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements and is mainly used in vibration measurement applications on fluid film bearing machines, as well as in key phase and velocity measurement applications2.
The 3300 XL 8 mm system represents our most advanced performance in eddy current proximity sensor systems. The standard 3300XL8 mm5 meter system is also fully compliant with the American Petroleum Institute (API)670 standard (4th edition) for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL8 mm proximity sensor systems achieve this level of performance while allowing probe, extension, and Proximitor sensors without the need for separate part matching or bench calibration.
Each component of the 3300 XL 8 mm sensor system is backward compatible and interchangeable with other non-XL3300 series 5 and 8 mm sensor system components 4. This includes a 33005 mm probe for 8 chamber meters
The probe is too large for the available mounting space 5,6.

330104-00-13-10-02-05 3300 XL 8 mm接近传感器
