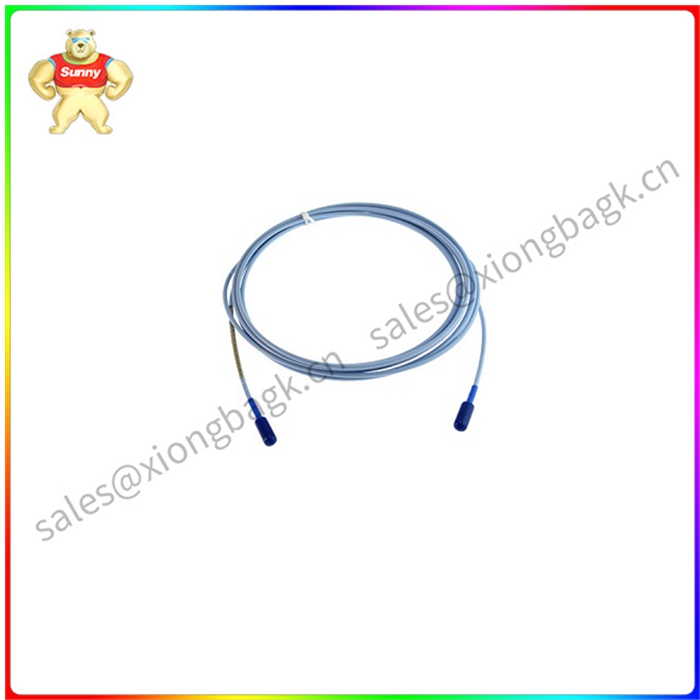

330130-085-00-05 3300 XL 标准延长电缆

330130-085-00-05 3300 XL 标准延长电缆

特征：
适用于压缩系统、速度测量和流膜轴承机
扩展温度范围应用
单元和布线的完全互换性
向后兼容其他非 3300 XL 系列传感器系统组件
GE / Bently Nevada 3300 XL 8mm 接近传感器系统由一个 3300 XL 8mm 探头、一根 3300 XL 延长电缆和一个 3300 XL 接近传感器组成。该系统提供的输出电压与探头尖 端和观察到的导电表面之间的距离成正比，可以测量静态（位置）和动态（振动）值。该系统的主要应用是流膜轴承机的振动和位置测量，以及键相参考和速度测量。标准的 3300 XL 8 mm 5 米系统在机械配置、线性范围、精度和温度稳定性方面也完全符合美国石油学会 （API） 670 标准（第 4 版）。所有 3300 XL 8 mm 接近传感器系统均提供这种性能水平，并支持探头、延长电缆和 Proximitor 传感器的完全互换性，无需匹配或台架校准单个组件。

330130-085-00-05 3300 XL 标准延长电缆

Features:
Suitable for compression systems, speed measurement and film bearing machines
Extended temperature range application
Full interchangeability of cells and wiring
Backward compatible with other non-3300 XL series sensor system components
The GE/Bently Nevada 3300 XL 8mm proximity sensor system consists of a 3300 XL 8mm probe, a 3300 XL extension cable, and a 3300 XL proximity sensor. The system provides an output voltage that is proportional to the distance between the probe tip and the observed conductive surface, allowing both static (position) and dynamic (vibration) values to be measured. The main applications of this system are vibration and position measurement of flow film bearing machines, as well as key phase reference and velocity measurement. The standard 3300 XL 8 mm 5 meter system is also fully compliant with the American Petroleum Institute (API) 670 standard (4th edition) in terms of mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8 mm proximity sensor systems offer this level of performance and support full interchangeability of the probe, extension cable and Proximitor sensors without the need to match or bench calibrate individual components.

330130-085-00-05 3300 XL 标准延长电缆
