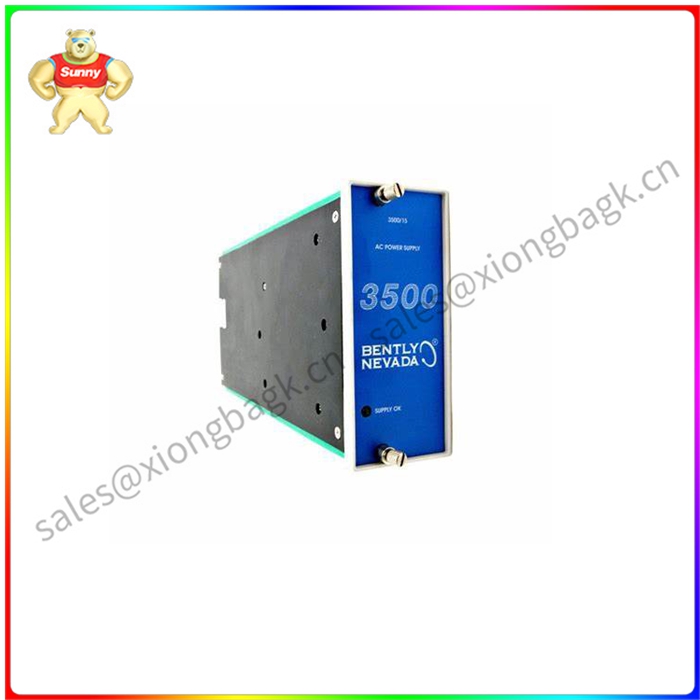

350015 133292-01 TSI系统模块 振动监测保护

350015 133292-01 TSI系统模块  振动监测保护

3500机械保护系统显示器

带有彩色触摸屏和 I/O 模块的3500  /94M VGA 触摸屏显示 模块可在机器或控制室显示重要的 3500 数据。VGA 具有 3500 个振动级别、系统和警报事件列表以及模块、通道和警报数据以及九个自定义显示选项。用于 Direct、1X、Gap 和警报的预置“自定义”屏幕无需配置，使设置变得简单。有 2 种尺寸可供选择（10 英寸和 15 英寸），您可以在一台显示器上查看多达四个独立 3500 机架的数据。显示模块也有安装选项，包括铰链式和锁定式面部安装。危险区域认证可用于显示器。

3500机械保护系统速度监视器

TACH100 数字转速计 可以用作独立的速度指示器，也可以与任何 安装的监控系统一起用作远程速度指示器。紧凑型装置包含自己的电源，当需要在机器附近或远处安装 监控系统以指示速度时，这很方便。数字转速计提供本地显示，指示机器甲板上的机器速度。当需要双耳保护时，数字转速计会提供视觉指示。电线可以与显示器机架上的键相量接近探头输入并联，或直接连接到键相量接近探头。TACH100 接受来自外部供电的键相接近探头的信号线和公共线。

我们的 3500/25 键相模块 在 3500 机架中提供相位参考信息（每个 3500 机架 多可以使用四个键相器），从而实现高 级机械诊断。它接收来自接近探头或磁性拾音器的输入信号，并将每转一次或每转多次事件的脉冲信号转换为 的数字定时测量。这允许您的 3500 系统测量机器速度和矢量参数，例如 1X 振动幅度和相位，这些是确定重要机器行为的关键。键相量测量也是 Bently Nevada† 汽轮机监控仪表 (TSI) 传感器套件的一个组成部分， 用于汽轮机。3500 系统可作为 SIL 2 级系统使用，并通过了多项危险区域和/地区特定认证，可应对任何环境。

350015 133292-01 TSI系统模块  振动监测保护

3500 Mechanical protection system display

The 3500/94M VGA touch screen display module with color touch screen and I/O module displays important 3500 data in the machine or control room. VGA features 3,500 vibration levels, a list of system and alarm events, as well as module, channel and alarm data, and nine custom display options. Preset "custom" screens for Direct, 1X, Gap, and alerts require no configuration, making setup simple. Available in 2 sizes (10-inch and 15-inch), you can view data from up to four separate 3,500 racks on a single display. The display module also has mounting options, including hinged and locked face mounts. Hazardous area certification is available for displays.

3500 Mechanical Protection system speed monitor

The TACH100 digital tachometer can be used as a standalone speed indicator or as a remote speed indicator in conjunction with any installed monitoring system. The compact unit contains its own power supply, which is handy when a monitoring system needs to be installed near or far from the machine to indicate speed. The digital tachometer provides a local display indicating the machine speed on the machine deck. A digital tachometer provides visual indication when protection of both ears is required. The wire can be connected in parallel to the key phasor proximity probe input on the display rack or directly to the key phasor proximity probe. The TACH100 accepts signal lines and common lines from externally powered keys close to the probe.

Our 3500/25 key phase module provides phase reference information in 3500 racks (up to four key phasers per 3500 rack) for advanced mechanical diagnostics. It receives an input signal from a close probe or magnetic pickup and converts the pulse signal of one or multiple events per revolution into a digital timing measurement. This allows your 3500 system to measure machine speed and vector parameters, such as 1X vibration amplitude and phase, which are key to determining important machine behavior. Key phasor measurement is also an integral part of the Bently Nevada† Turbine Monitoring Instrument (TSI) sensor suite for steam turbines. The 3500 system can be used as an SIL Level 2 system and has multiple hazardous area and/or area specific certifications to handle any environment.
