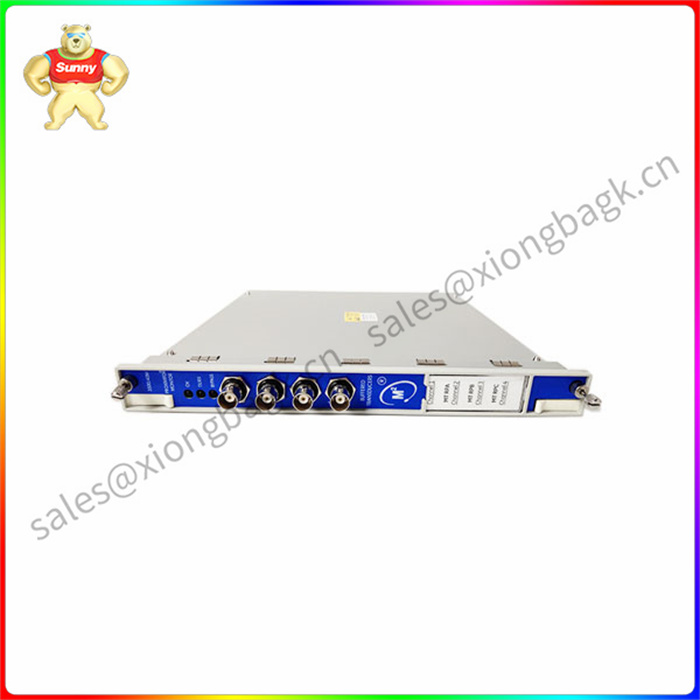

BENTLY 3500/40M 176449-01胀差轴向位置模块，接受来自内华达接近传感器的输入信号，条件提供各种振动和位置的测量，并比较条件的用户可编程的警报信号。用户可编程的3500/40m的3500架配置每个通道软件来执行下列功能：径向、振动、推力、位置、胀差。

注：监测通道是对的，可以在一个时间内完成这些功能的两个功能。通道2和1可以执行一个功能，而通道3和4执行另一个（或相同的）功能。

3500/40m监测的主要目的是提供：

1。通过不断比较与配置监测参数警报设定为驱动警报机械保护。

2。对操作和维护人员的基本机器信息。

每个通道，根据配置，通常情况下，其输入信号的各种参数称为“静态值”。用户可以配置每个活动的静态值和危险值为主动静态值的任何两个警报设定值。

3500/40位置显示器

3500/53模块可以组合成一个二取二或二（推荐）系统。

冗余电源在3500架包含超速检测系统的使用要求。

3500系统的高度模块化设计包括：

. 3500/05仪表框架(必需的)

. 一或两个3500/15电源(必需的)

. 3500/22M瞬态数据接口模块或3500/20框架接口模块（必需的要求）

. 一或两个3500/25键相模块(可选的)

. 3500框架组态软件(必需的)

. 一个或多个3500/XX监测器模块(必需的)

. 一个或多个3500/32继电器模块或3500/34三重冗余继电器模块(可选的)

. 一个或多个3500/92通讯网关模块(可选的)

. 3500/93、3500/94或3500/95显示装置或运行于兼容PC机上的3500操作者显示软件

. 内部或外部本质安全栅，或用于危险地区安装的电气隔离装置。
