369-LO-0-M-F-E-0 电机参数并适应使用中的应用69-LO-0-M-F-E-0 20-60 VDC 20-48 VAC包括可选计量包可选光纤端口和可选Modbus TCP over Ethernet接口。369-LO-0-M-F-E-0是通用电气公司369电机管理继电器的一个版本。这是一个数字继电器，用于机械系统和三相电机的保护和监控。这些系统被设计成能够“学习”电机参数并适应使用中的应用。369-LO-0-M-F-E-0的额定控制功率为20-60 VDC (20-48 VAC)。该装置有一个可选的计量包、一个可选的光纤端口和一个可选的Modbus/TCP协议接口。该可选计量包提供VT输入，以支持电压和功率元件。


该装置还有一个RS232前面板端口和三个RS485后端口。所有端口都有Modbus RTU协议，标准。前键盘(位于前面板上)可用于输入设定值。也可以使用计算机通过EnerVista 369软件连接输入这些信息。369-LO-0-M-F-E-0提供许多其他选项，包括增强的电机学习数据、电机启动数据记录、增强的事件记录、用户定义的轮询输入数据、通信丢失跳闸和欠压自动重启。这也可以用来计量兆瓦时、赫兹、千伏安、千瓦、伏和PF。

369-LO-0-M-F-E-0-0 继电器模块 用于机械系统和三相电机的保护和监控

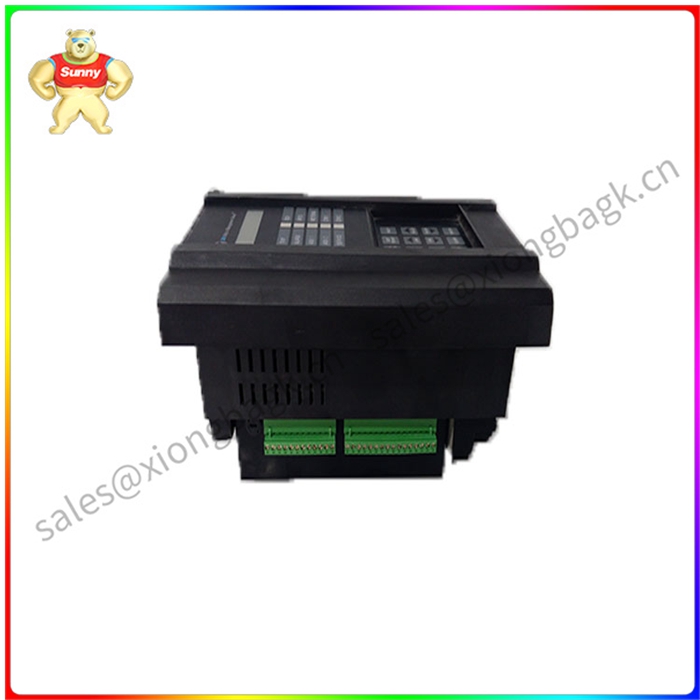

369-LO-0-M-F-E-0 Motor parameters and ADAPTS to the application in use 69-LO-0-M-F-E-0 20-60 VDC 20-48 VAC includes optional metering packs Optional fiber port and optional Modbus TCP over Ethernet interface. The 369-LO-0-M-F-E-0 is a version of the General Electric Company 369 motor management relay. This is a digital relay used for the protection and monitoring of mechanical systems and three-phase motors. These systems are designed to "learn" motor parameters and adapt to the application in use. The 369-LO-0-M-F-E-0 is rated for 20-60 VDC (20-48 VAC) control power. The device has an optional metering package, an optional fiber port, and an optional Modbus/TCP protocol interface. This optional metering package provides VT input to support both voltage and power components.

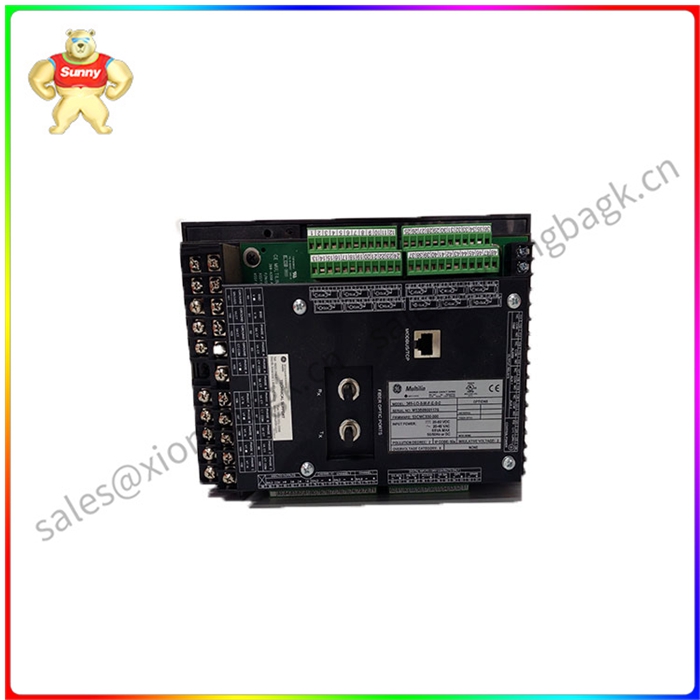

The unit also has an RS232 front panel port and three RS485 rear ports. All ports have Modbus RTU protocol, standard. The front keyboard (located on the front panel) can be used to enter Settings. This information can also be entered using the computer via the EnerVista 369 software connection. The 369-LO-0-M-F-E-0 provides many other options, including enhanced motor learning data, motor start data logging, enhanced event logging, user-defined polling input data, communication loss tripping, and undervoltage automatic restart. This can also be used to measure megawatt-hours, Hertz, kilovolts, kilowatts, volts, and PF.
