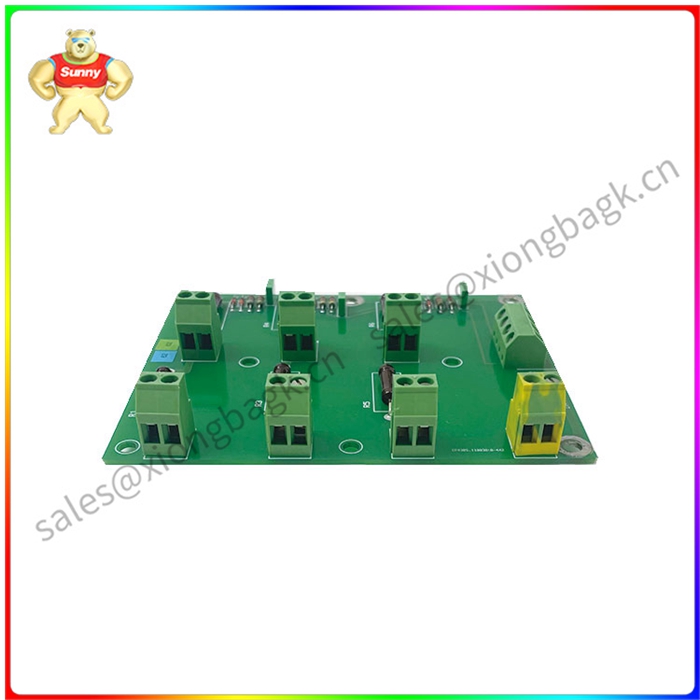

3ASC25H215E-DATX131 传动保护和控制

3ASC25H215E-DATX131 传动保护和控制

产品概述

3ASC25H215E DATX131 是一款智能通信适配器，主要用于连接和管理工业自动化设备。

特点

• 支持多种通信协议转换和集成，如 Modbus 和 Profinet 等
• 实现数据采集、监控和控制等功能
• 提高设备运行效率
• 传动保护和控制功能强大
• 实时监测设备运行状态
• 快速作出反应，防止设备损坏或事故发生
• 支持远程监控和控制
• 提高设备可维护性和管理便捷性

应用领域

• 工业自动化
• 机械制造
• 纺织服装
• 食品加工
• 包装印刷
• 物流仓储
• 新能源
• 环保水处理

技术参数

• 型号: 3ASC25H215E DATX131
• 电源电压: 24VDC
• 工作温度: -40℃~ 70℃
• 通信接口: 以太网、Modbus、Profibus
• 内存: 8MB

优势

• 连接和管理工业自动化设备的便捷解决方案
• 提高设备运行效率和可靠性
• 降低维护成本
• 提高生产效率

3ASC25H215E-DATX131 传动保护和控制

summarize

Pulse transformer is a kind of energy conversion device using magnetic saturation characteristics, which is widely used in power electronic devices such as switching power supply, inverter and frequency converter.

Working principle

The working principle of the pulse transformer is based on the magnetic saturation characteristics. When the voltage applied to the primary winding of the pulse transformer exceeds the saturation magnetic induction intensity of the magnetic core, the magnetic core will enter the saturation state. In the saturated state, the permeability of the magnetic core decreases sharply, resulting in a rapid increase in the current of the primary side winding. This current change induces a corresponding pulse voltage in the secondary winding of the transformer.

peculiarity

The pulse transformer has the following characteristics:

Small size and light weight
High efficiency
High frequency
High isolation voltage
Low feedback voltage
Apply

Pulse transformers are widely used in the following fields:

Switching power supply
inverter
Frequency changer
Induction cooker
Motor drive
Lighting control
Communication equipment
