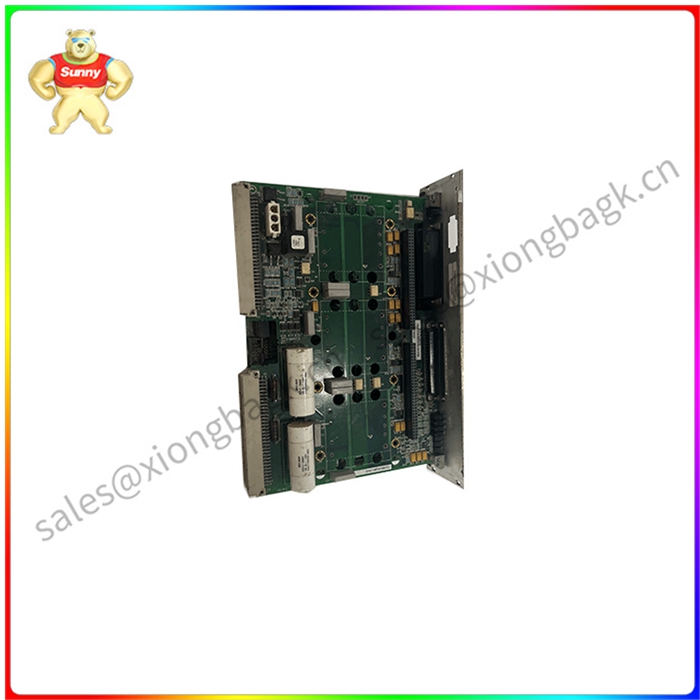

IS200VPROH2B-IS200VPROH1BEF-IS200VPWRH1AHD 燃机系统卡件

IS200VPROH2B-IS200VPROH1BEF-IS200VPWRH1AHD 燃机系统卡件

Product Overview:

The IS200VPROH2B is an 8-channel, 15-bit input module of the Versamax family that provides eight differential voltage input interfaces and is powered by a backplane power supply. The module is unique in that it supports external power operation, but the power supply for the user's transceiver needs to be provided by an external power supply.

Product features:

8-channel differential input: The IS200VPROH2B module provides 8 differential input channels to collect analog voltage signals.
15-bit converter resolution: The module's analog-to-digital converter has a 15-bit resolution that provides high-precision data acquisition.
Software configurable options: Users can configure the input range, filter and other parameters of the module through the software.
External power operation: The module supports external power operation to meet different application requirements.
LED indicator: The module provides LED indicators to indicate the status of the module.
5V output: The module provides 5V output to power external devices.
Low backplane current consumption: The backplane current consumption of the module is only 2mA, which saves power consumption.
Application field:

The IS200VPROH2B module can be used in a wide range of industrial control applications, including:

Process control: In the field of process control, the IS200VPROH2B module can be used to collect analog signals such as temperature, pressure and flow.
Data acquisition: In the field of data acquisition, the IS200VPROH2B module can be used to collect various environmental parameters.
Test and measurement: In the field of test and measurement, the IS200VPROH2B module can be used to collect various test data.
Technical specifications:

Model: IS200VPROH2B
Number of channels: 8
Input type: Differential voltage
Input range: ±1V, ±5V, ±10V
Resolution: 15 bits
Conversion rate: 7.5ms
Power supply: backplane power or external power supply
Operating temperature: -20℃ ~ +65℃
Working humidity: 5% ~ 95%
