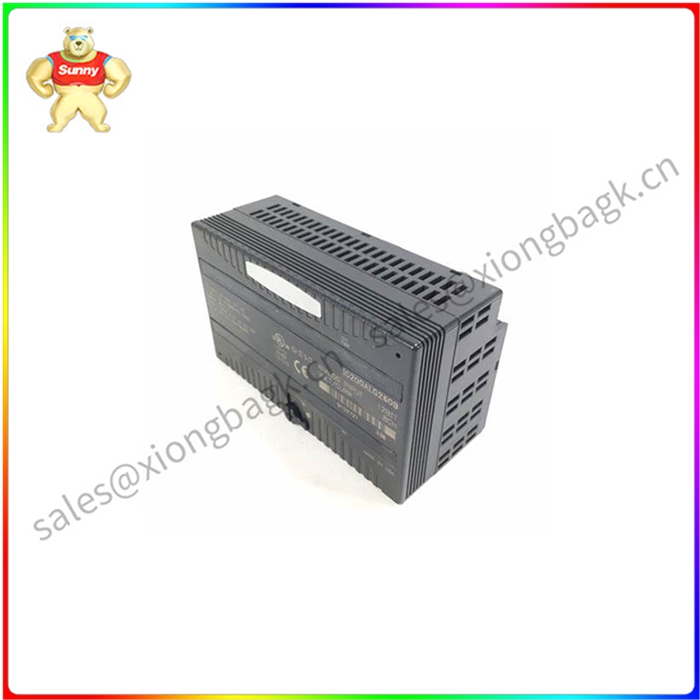

IC200ALG260是来自 VersaMax I/O 平台的 8 通道模拟输入模块。它旨在采集和处理来自各种工业传感器和传感器的模拟信号，在工业自动化应用中发挥着至关重要的作用。

IC200ALG260模拟输入模块的主要特性：

多种输入能力：该IC200ALG260可以处理各种模拟输入信号，包括：

电压：单极性 0 至 10 V 和双极性 ±10 V DC
电流：4-20 mA
高分辨率和高精度：它将模拟信号转换为具有 12 位分辨率的数字数据，确保输入值的精 确表示。

内部电源：该模块无需外部电源即可运行，使用内部电源。

光隔离：它在输入通道和内部电路之间提供光隔离，以增强对电气噪声和干扰的保护。

诊断 LED：状态 LED（INT PWR LED 和 OK LED）分别指示存在内部电源和正确的背板连接。

低背板电流消耗：该模块在 5 VDC 时的zui大背板电流为 130 mA，从而zui大限度地降低了功耗。

内部断电诊断：它集成了内部断电诊断功能，可检测和报告任何电源问题。

可配置参数：量程选择和模式选择跳线允许自定义模块的输入范围和工作模式（电压或电流）。

高输入阻抗：在电压模式下，zui大输入阻抗为 126 kOhms，而在电流模式下，zui大输入阻抗为 200 Ohms。

高精度：该模块的典型满量程精度为 ±0.3%，在 25°C 时zui大为 ±0.5%，在 0-60°C 工作温度范围内zui大为 ±1%。

精细分辨率：电流模式下的分辨率为 4 μA = 8 个计数，双极性电压模式下的分辨率为 2.5 mV = 8 个计数，单极性电压模式下的分辨率为 2.5 mV = 8 计数。

通道间隔离：该模块提供 30 dB 的zui小通道间串扰抑制，zui大限度地减少了通道之间的信号干扰。

单端接线：它支持单端接线配置，其中模拟测量以公共接地为基准。

IC200ALG260B VersaMax 模拟输入模块

The IC200ALG260 is an 8-channel analog input module from the VersaMax I/O platform. It is designed to collect and process analog signals from various industrial sensors and sensors, playing a vital role in industrial automation applications.

Main features of IC200ALG260 analog input module:

Multiple input capabilities: The IC200ALG260 can handle a variety of analog input signals, including:

Voltage: unipolar 0 to 10 V and bipolar ±10 V DC
Current: 4-20 mA
High resolution and precision: It converts analog signals into digital data with 12-bit resolution, ensuring an accurate representation of input values.

Internal power supply: The module can operate without external power supply and uses internal power supply.

Optical isolation: It provides optical isolation between the input channel and the internal circuit to enhance protection against electrical noise and interference.

Diagnostic leds: Status leds (INT PWR LED and OK LED) indicate the presence of internal power and the correct backplane connection, respectively.

Low backplane current consumption: The module has a maximum backplane current of 130 mA at 5 VDC, which minimizes power consumption.

Internal power outage Diagnostics: It integrates internal power outage diagnostics to detect and report any power problems.

Configurable parameters: Range selection and Mode selection jumpers allow you to customize the input range and operating mode (voltage or current) of the module.

High input impedance: In voltage mode, the maximum input impedance is 126 kOhms and in current mode, the maximum input impedance is 200 Ohms.

High accuracy: The module has a typical full-scale accuracy of ±0.3%, a maximum of ±0.5% at 25°C, and a maximum of ±1% at 0-60°C operating temperature range.

Fine resolution: The resolution is 4 μA = 8 counts in current mode, 2.5 mV = 8 counts in bipolar voltage mode, and 2.5 mV = 8 counts in unipolar voltage mode.

Interchannel isolation: This module provides a minimum interchannel crosstalk suppression of 30 dB, minimizing signal interference between channels.

Single-ended wiring: It supports a single-ended wiring configuration where analog measurements are based on common ground.
